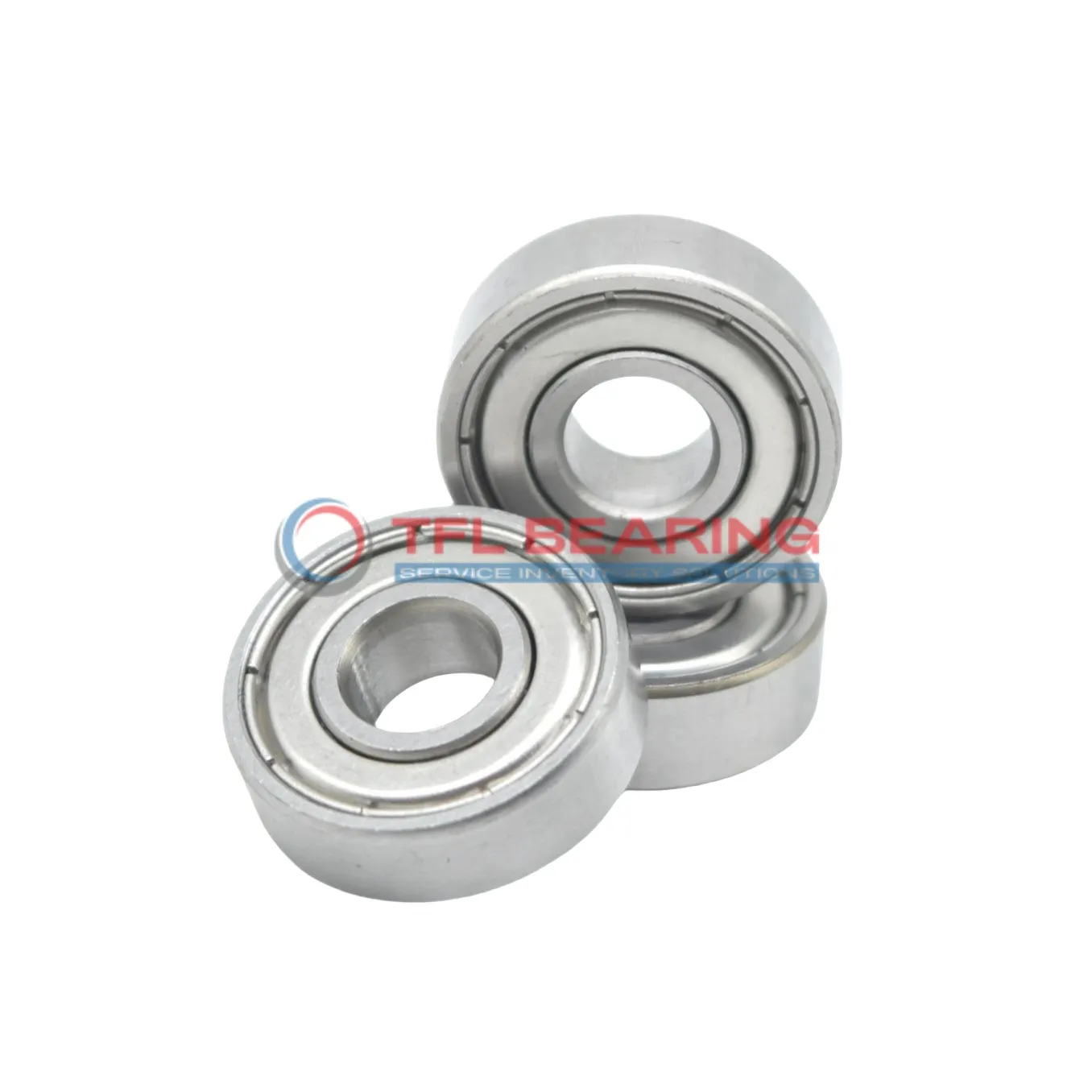

Single Row Deep Groove Ball Bearings 6212-2Z/VA218

Single Row Deep Groove Ball Bearings 6212-2Z/VA218

The 6212-2Z/VA218 is a single-row deep groove ball bearing with a 60mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 1178 lbf and operates smoothly at speeds up to 5600 RPM.

Its shielded design keeps dust out while maintaining easy access for lubrication. The chrome steel cage enhances durability, making it suitable for long-term use.

This bearing works well in temperatures ranging from -30°C to 120°C, fitting various industrial environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 762g, it’s a robust choice for applications like electric motors or pumps where radial loads are common. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6212-2Z/VA218
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 22 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1178 lbf
  • Static Radial Load 8138 lbf
  • Max Speed 5600 rpm
  • Weight 762 g
Single Row Deep Groove Ball Bearings 6212-2Z/VA218 dimension drawing
Download DWG Download PDF

Features

How Does 6212-2Z/VA218 Bearing Reduce Friction?

6212-2Z/VA218 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The chrome steel construction ensures durability while reducing friction during operation.

With shielded seals, 6212-2Z/VA218 Bearing protects against contaminants, maintaining consistent performance.
Its dynamic radial load capacity of 1178 lbf makes it suitable for various industrial applications.

6212-2Z/VA218 Bearing operates efficiently within a temperature range of -30° to 120°C.
The ABEC 1 tolerance class ensures reliable precision in everyday use.

Application

Industrial Uses of 6212-2Z/VA218 Bearing
6212-2Z/VA218 Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6212-2Z/VA218 Bearing fits well in components such as alternators and wheel hubs, providing reliable radial load support. Its metric sizing makes it a versatile choice for various vehicle models.

For household appliances, 6212-2Z/VA218 Bearing works efficiently in items like washing machines and fans. The shielded seals help maintain smooth operation by preventing dust and debris from entering.

In automation systems, 6212-2Z/VA218 Bearing supports robotic arms and conveyor belts, where consistent performance is key. The ABEC 1 tolerance ensures adequate precision for general industrial use.
