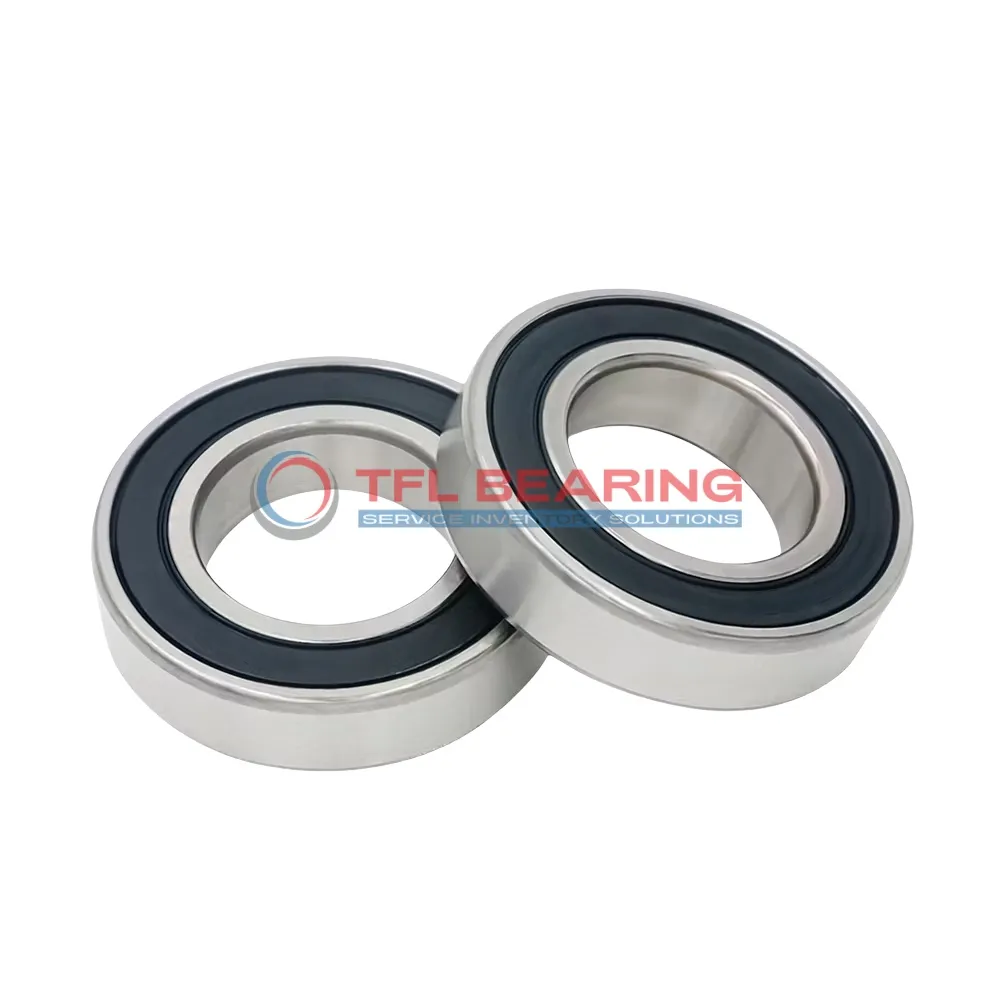

Single Row Deep Groove Ball Bearings 6212-2RS1/C4

The 6212-2RS1/C4 is a single-row deep groove ball bearing with a 60mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 1178 lbf and operates smoothly at speeds up to 5600 RPM.

Its sealed design keeps out dust and moisture, extending its lifespan, while the chrome steel cage adds durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 762g, it’s a robust yet manageable option for various industrial uses. Compliant with RoHS and REACH standards, it ensures safe and eco-friendly operation.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6212-2RS1/C4
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C4
Bore Dia 60 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 110 mm
Outer Dia Tolerance -0.015mm to 0
Width 22 mm
Width Tolerance -0.150mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 1178 lbf
Static Radial Load 8138 lbf
Max Speed 5600 rpm
Weight 762 g

Single Row Deep Groove Ball Bearings 6212-2RS1/C4 dimension drawing

Download DWG Download PDF

Features

Performance Features of 6212-2RS1/C4 Bearing

6212-2RS1/C4 Bearing is built with chrome steel rings and balls, offering strong radial load support.
Its dynamic radial load capacity reaches 1178 lbf, making it suitable for various industrial applications.
The sealed design protects against dust and moisture, ensuring consistent performance.
With a maximum speed of 5,600 rpm, it balances durability and efficiency in operation.

Application

Common Applications of 6212-2RS1/C4 Bearing
6212-2RS1/C4 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep out contaminants. The C4 radial clearance ensures smooth operation even under varying thermal conditions.

In automotive applications, 6212-2RS1/C4 Bearing fits well in wheel hubs and alternators, offering reliable radial load support. Its chrome steel construction provides long-lasting performance in demanding environments.

For household appliances like washing machines, 6212-2RS1/C4 Bearing’s durability and low maintenance make it a practical choice. The sealed design also helps reduce noise, improving user comfort.

In automation systems, 6212-2RS1/C4 Bearing works efficiently in conveyor belts and robotic arms. Its consistent performance and easy integration make it a go-to option for engineers.
