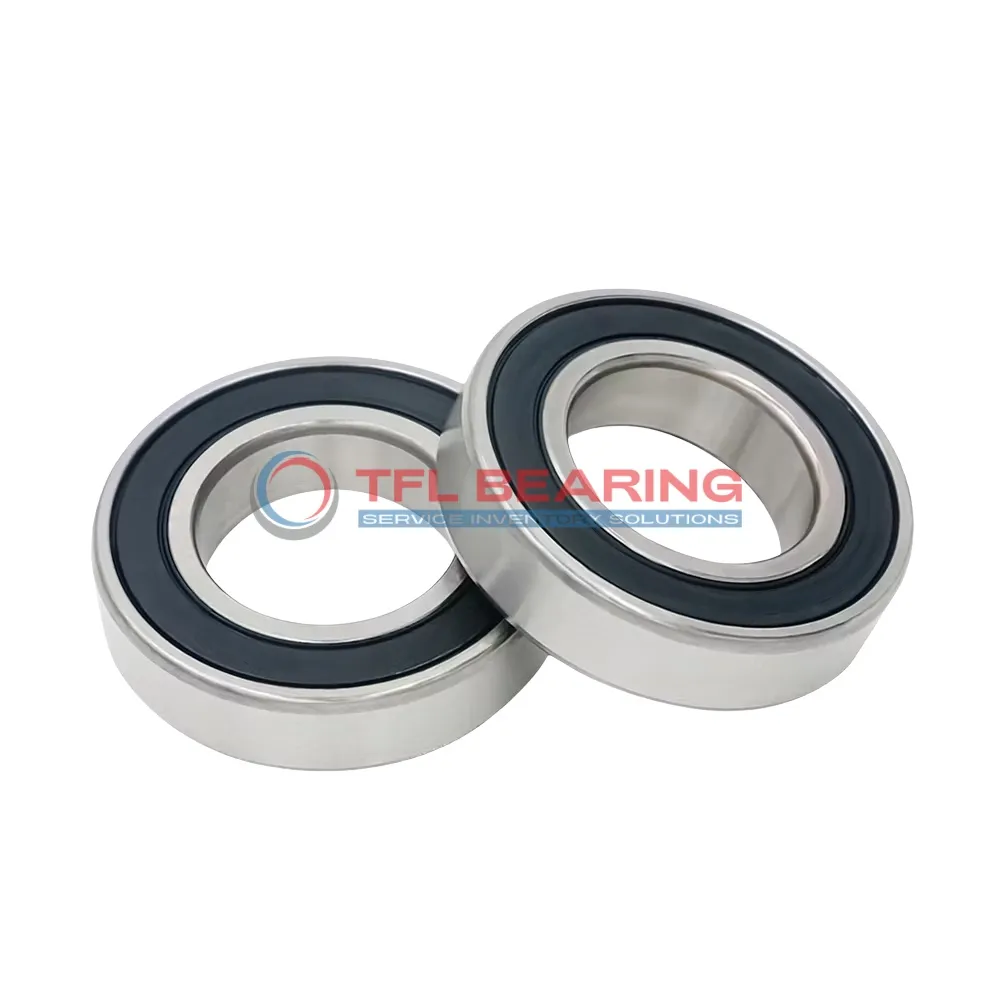

Single Row Deep Groove Ball Bearings 6212-2RS1/C3

The 6212-2RS1/C3 is a single-row deep groove ball bearing with a 60mm bore and 110mm outer diameter, crafted from durable chrome steel. It manages radial loads up to 1178 lbf and operates smoothly at speeds up to 5600 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance for long-term use. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a cost-effective replacement option. It’s well-suited for electric motors, pumps, or industrial gearboxes where radial loads are common.

Weighing 762g, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6212-2RS1/C3
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 60 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 110 mm
Outer Dia Tolerance -0.015mm to 0
Width 22 mm
Width Tolerance -0.150mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 1178 lbf
Static Radial Load 8138 lbf
Max Speed 5600 rpm
Weight 762 g
price（$） 18.252

Single Row Deep Groove Ball Bearings 6212-2RS1/C3 dimension drawing

Download DWG Download PDF

Features

Why Choose 6212-2RS1/C3 Bearing for Precision Tasks?

6212-2RS1/C3 Bearing features a sealed design, protecting it from dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear, even under heavy radial loads.
With a dynamic radial load capacity of 1178 lbf, it handles demanding applications with ease.
The bearing operates smoothly within a temperature range of -30° to 120°C, making it versatile for various environments.

Application

Common Applications of 6212-2RS1/C3 Bearing
The 6212-2RS1/C3 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. Its C3 radial clearance ensures smooth operation even under varying thermal conditions.

In automotive applications, 6212-2RS1/C3 Bearing fits well in wheel hubs and alternators, providing reliable radial load support. The chrome steel construction offers durability, making it suitable for long-term use in vehicles.

For household appliances like washing machines, 6212-2RS1/C3 Bearing’s sealed feature prevents dust and moisture from affecting performance. Its balanced design reduces noise, which is ideal for quiet home environments.

Automation systems benefit from 6212-2RS1/C3 Bearing’s consistent performance in robotic arms and conveyor belts. The metric sizing ensures compatibility with a range of European and Asian equipment standards.
