Metric Size Miniature Flanged Ball Bearings SMF105zz

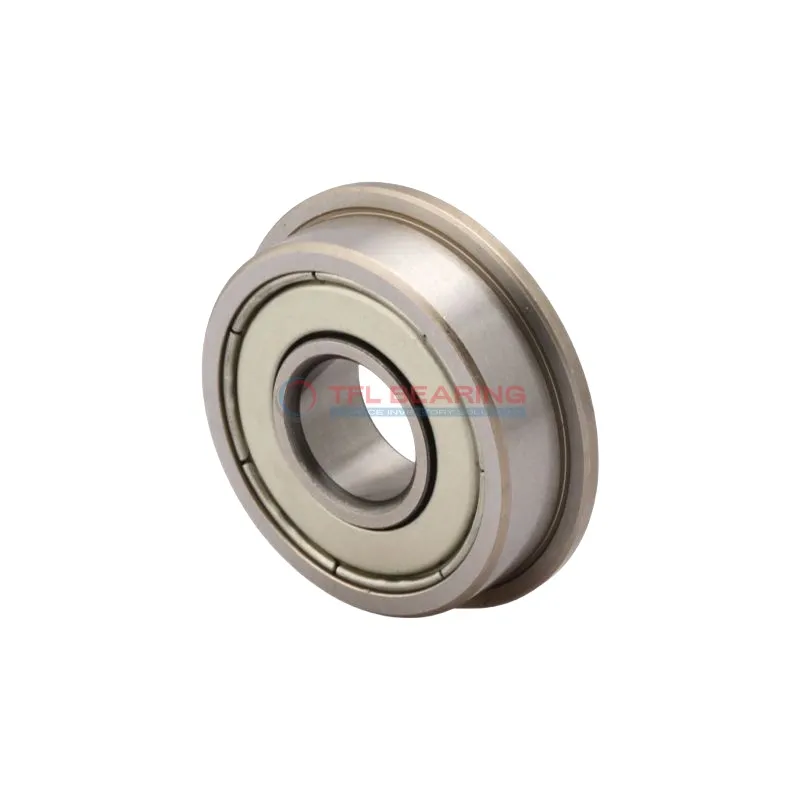

Metric Size Miniature Flanged Ball Bearings SMF105zz

The SMF105zz is a small, shielded ball bearing with a 5mm bore and 10mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 74 lbf and spins smoothly at speeds up to 45,000 RPM.

Its shielded design helps keep dust out while maintaining easy access for lubrication. The stainless steel cage and balls ensure long life, even in humid or corrosive environments.

With a compact width of just 4mm and a lightweight 1.38g design, it fits neatly into tight spaces. The flange adds extra stability during installation.

Ideal for small motors, dental tools, or precision instruments where high speeds and reliability are needed. Works in temperatures from -30°C to 110°C and meets RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SMF105zz
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 10 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 4 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 11.6 mm
  • Flange Thickness 0.8 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 8
  • Ball Dia 1.2000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 74 lbf
  • Static Radial Load 27 lbf
  • Max Speed 45000 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.38 g
  • Shield Material 300 Series Stainless Steel
  • Price（$） 1.62
Metric Size Miniature Flanged Ball Bearings SMF105zz dimension drawing
Download DWG Download PDF

Features

How Does SMF105zz Bearing Reduce Friction?

SMF105zz Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design protects against contaminants while maintaining low resistance during rotation.
With a dynamic radial load capacity of 74 lbf, it delivers reliable performance in compact applications.
The ABEC1 tolerance class ensures consistent precision, making it suitable for high-speed use up to 45,000 rpm.

Application

Where Is SMF105zz Bearing Used?
SMF105zz Bearing is commonly found in small electric motors, such as those in cooling fans or miniature appliances, thanks to its compact size and shielded design. The stainless steel construction ensures it performs well in humid or corrosive environments.

In robotics, SMF105zz Bearing provides smooth rotation for joints and small actuators, where precision and low friction are key. Its high-speed capability makes it suitable for delicate movements in automated systems.

For consumer electronics like printers or handheld tools, SMF105zz Bearing offers reliable performance with minimal maintenance. The lightweight design and ABEC1 tolerance balance cost and functionality for everyday devices.

Medical devices, such as dental handpieces or lab equipment, benefit from SMF105zz Bearing’s consistent operation and resistance to sterilisation chemicals. The shielded design helps keep contaminants out in sensitive environments.
