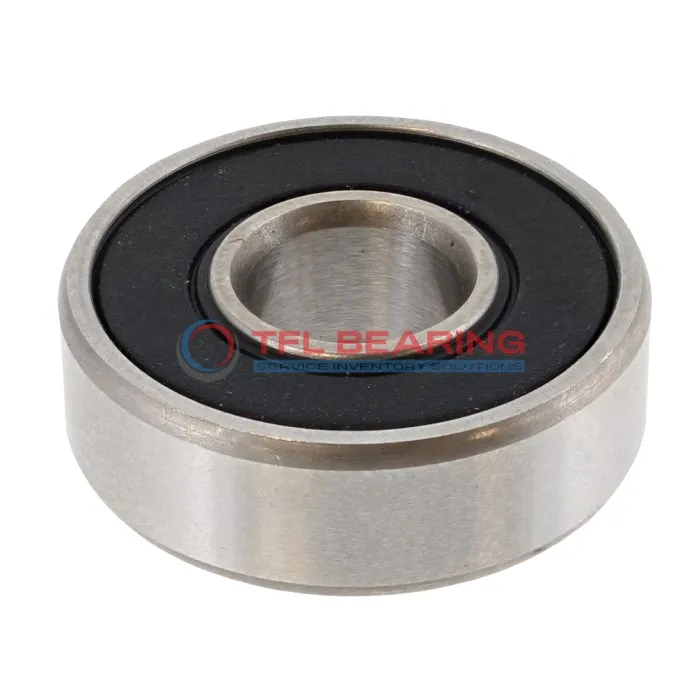

Single Row Deep Groove Ball Bearings 6211-2RS1/C3

The 6211-2RS1/C3 is a single-row deep groove ball bearing with a 55mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 9757 lbf and operates smoothly at speeds up to 6300 RPM.
Its sealed design keeps dirt out and grease in, making it low-maintenance for long-term use. The C3 clearance allows for slight thermal expansion, ideal for varying temperatures.
This bearing is interchangeable with SKF models, offering a reliable replacement option. Suitable for electric motors, pumps, or industrial gearboxes where radial loads are common.
Weighing 599g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe operation in temperatures from -30°C to 120°C.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6211-2RS1/C3
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 55 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 100 mm
Outer Dia Tolerance -0.015mm to 0
Width 21 mm
Width Tolerance -0.150mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 9757 lbf
Static Radial Load 6609 lbf
Max Speed 6300 rpm
Weight 599 g
price（$） 14.049

Single Row Deep Groove Ball Bearings 6211-2RS1/C3 dimension drawing

Download DWG Download PDF

Features

Performance Features of 6211-2RS1/C3 Bearing

6211-2RS1/C3 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 9757 lbf.
Its sealed design protects against dust and moisture, ensuring smooth operation in various environments.
The C3 radial clearance provides optimal performance under thermal expansion or heavy loads.
With a maximum speed of 6,300 rpm, it balances durability and efficiency for industrial applications.

Application

Common Applications of 6211-2RS1/C3 Bearing
6211-2RS1/C3 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. The C3 radial clearance ensures smooth operation even under varying thermal conditions.

In automotive applications, 6211-2RS1/C3 Bearing fits well in wheel hubs and alternators, thanks to its robust chrome steel construction. Its metric sizing makes it a versatile choice for various vehicle models.

For household appliances like washing machines, 6211-2RS1/C3 Bearing offers reliable performance with minimal maintenance. The sealed design also extends its lifespan in dusty or humid environments.

Where Is 6211-2RS1/C3 Bearing Used?
You’ll often find 6211-2RS1/C3 Bearing in conveyor systems, where its radial load capacity handles continuous motion effortlessly. The sealed design is a bonus in dusty industrial settings.

In robotics, 6211-2RS1/C3 Bearing supports joints and pivots, ensuring precise movement. Its chrome steel balls provide durability for high-cycle applications.

Built for Heavy-Duty Use: 6211-2RS1/C3 Bearing
6211-2RS1/C3 Bearing excels in agricultural equipment, enduring harsh conditions like mud and moisture. The sealed design protects against debris, reducing downtime.

For workshop tools like grinders, 6211-2RS1/C3 Bearing offers steady performance under radial loads. Its temperature range suits both indoor and outdoor use.

Automotive vs Industrial: Applications of 6211-2RS1/C3 Bearing
In cars, 6211-2RS1/C3 Bearing is ideal for transmissions, balancing speed and load requirements. Its durability matches the demands of daily commuting.

Factories rely on 6211-2RS1/C3 Bearing for machinery like compressors, where consistent radial load support is key. The C3 clearance adapts well to thermal expansion.
