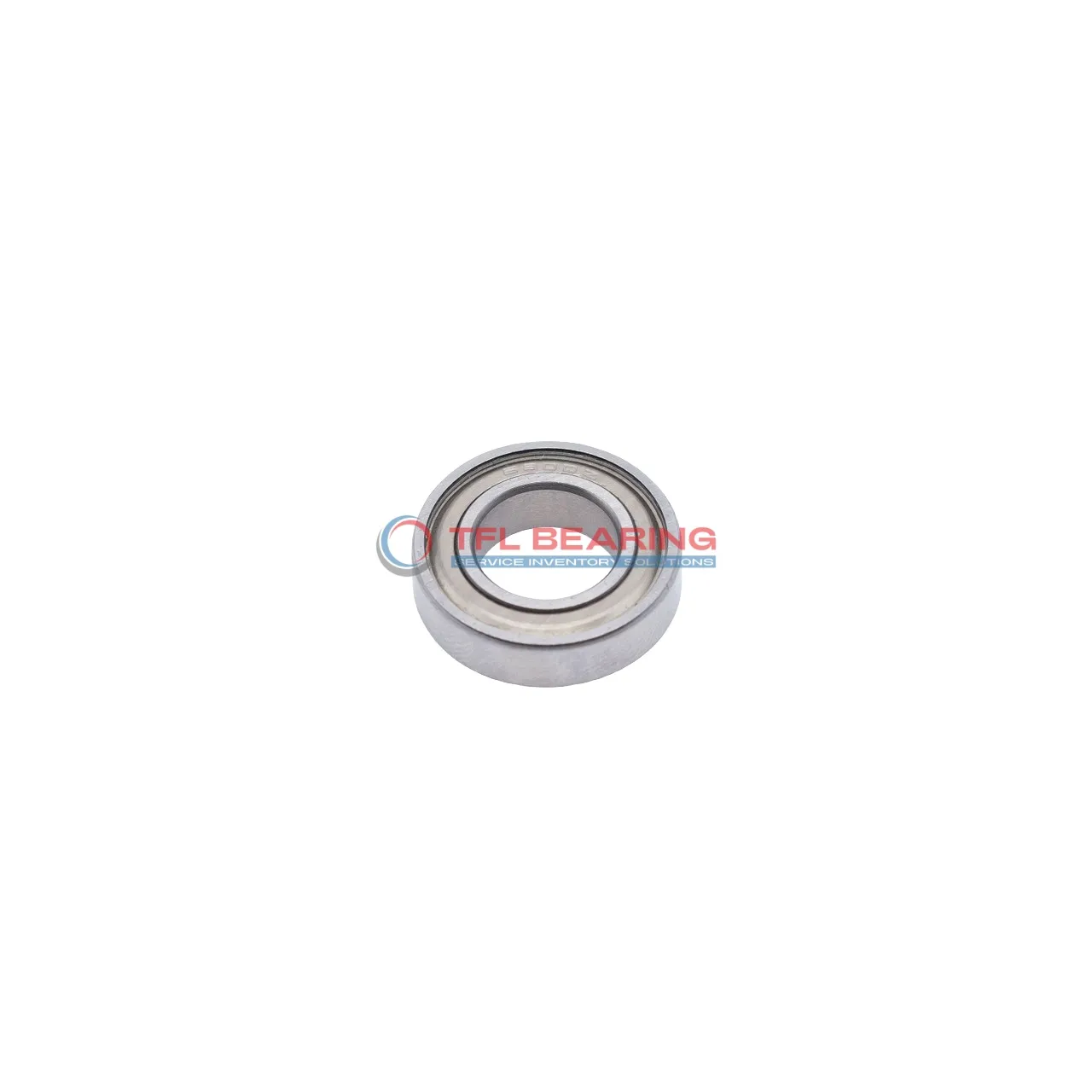

Single Row Deep Groove Ball Bearings 608-2ZTN9/C5MT33

Single Row Deep Groove Ball Bearings 608-2ZTN9/C5MT33

The 608-2ZTN9/C5MT33 is a compact single-row deep groove ball bearing with an 8mm bore and 22mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 630 lbf and spins smoothly at speeds up to 34,000 RPM.

Its shielded design keeps dust out while the nylon cage reduces friction, making it quiet and efficient. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for small motors, skateboards, or appliances where smooth rotation is key.

Weighing just 11.8g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 608-2ZTN9/C5MT33
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C5
  • Bore Dia 8 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 630 lbf
  • Static Radial Load 248 lbf
  • Max Speed 34000 rpm
  • Weight 11.8 g
Single Row Deep Groove Ball Bearings 608-2ZTN9/C5MT33 dimension drawing
Download DWG Download PDF

Features

How Does 608-2ZTN9/C5MT33 Bearing Reduce Friction?

608-2ZTN9/C5MT33 Bearing features a single-row deep groove design, optimised for smooth radial load handling.
The chrome steel rings and balls work together to minimise friction during operation.

Its shielded design helps keep contaminants out, ensuring consistent performance.
With a maximum speed of 34,000 rpm, it delivers reliable efficiency in various applications.

The nylon cage reduces vibration and noise, enhancing overall durability.
This makes 608-2ZTN9/C5MT33 Bearing a practical choice for both industrial and precision uses.

Application

Common Applications of 608-2ZTN9/C5MT33 Bearing
This bearing is widely used in small electric motors, such as those found in household appliances like fans and blenders. Its shielded design helps keep out dust while maintaining smooth rotation.

In skateboards and rollerblades, 608-2ZTN9/C5MT33 Bearing provides reliable performance for wheels, thanks to its durable chrome steel construction. The nylon cage reduces friction, making movements smoother.

For office equipment like printers and scanners, this bearing ensures quiet operation with its precision engineering. The compact size makes it ideal for space-constrained applications where reliability matters.

Where Is 608-2ZTN9/C5MT33 Bearing Used?
You’ll often find this bearing in fitness equipment, particularly in treadmill rollers and exercise bike wheels. Its high-speed capability handles continuous use without overheating.

The C5 clearance makes 608-2ZTN9/C5MT33 Bearing suitable for applications with slight misalignments, such as conveyor belt rollers. It maintains performance even under varying radial loads.

Built for Versatility: 608-2ZTN9/C5MT33 Bearing
In robotics, this bearing works well in joint mechanisms due to its balanced load capacity and smooth rotation. The temperature range allows use in various environments.

For DIY power tools, 608-2ZTN9/C5MT33 Bearing offers dependable service in drills and sanders. Its metric sizing ensures easy replacement in most European-made tools.
