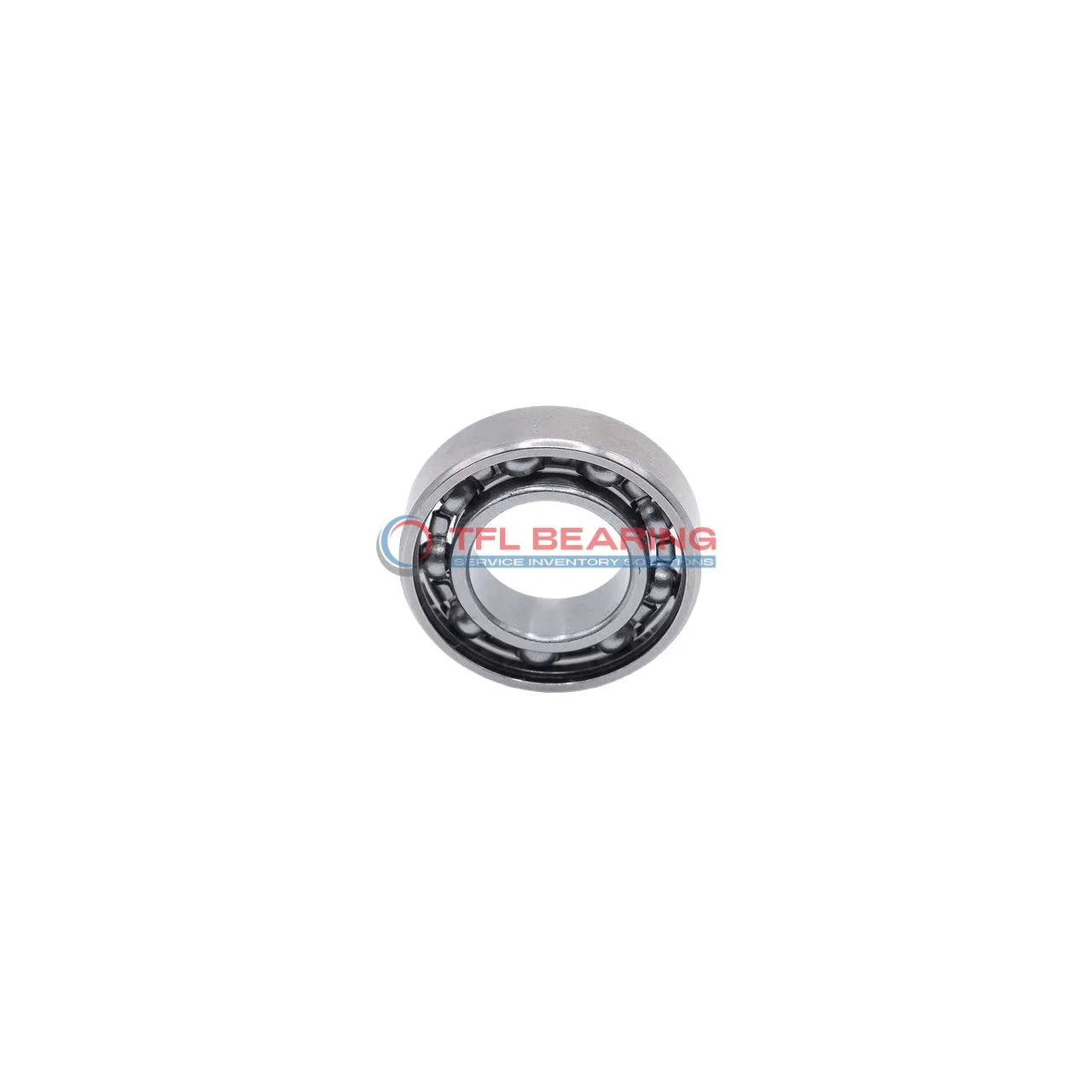

Single Row Deep Groove Ball Bearings 6209 JEM

Single Row Deep Groove Ball Bearings 6209 JEM

The 6209 JEM is a single-row deep groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7351 lbf and operates smoothly at speeds up to 7700 RPM.

Its open design simplifies maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 407g, it’s a robust yet lightweight choice. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6209 JEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7351 lbf
  • Static Radial Load 4564 lbf
  • Max Speed 7700 rpm
  • Weight 407 g
  • price（$） 10.494
Single Row Deep Groove Ball Bearings 6209 JEM dimension drawing
Download DWG Download PDF

Features

Performance Features of 6209 JEM Bearing

6209 JEM Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 7351 lbf, making it suitable for various industrial applications.

The single-row deep groove design ensures smooth operation and efficient load distribution.
With a maximum speed of 7,700 rpm, it balances performance and durability.

6209 JEM Bearing operates in temperatures from -30°C to 120°C, adapting to different environments.
Its open design simplifies maintenance while maintaining reliable performance.

Application

Common Applications of 6209 JEM Bearing
6209 JEM Bearing is widely used in industrial machinery, such as electric motors and pumps, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, extending its service life in demanding conditions.

In automotive applications, 6209 JEM Bearing fits well in components like alternators and wheel hubs, providing smooth rotation under varying loads. Its metric dimensions make it a versatile choice for both domestic and international vehicle models.

For home appliances, 6209 JEM Bearing can be found in washing machines and fans, where its durability and quiet operation are appreciated. The chrome steel construction ensures long-term reliability even with frequent use.

Automation systems benefit from 6209 JEM Bearing in robotic arms and conveyor belts, where precision and low maintenance are key. Its ABEC 1 tolerance class offers a good balance between performance and cost for these applications.
