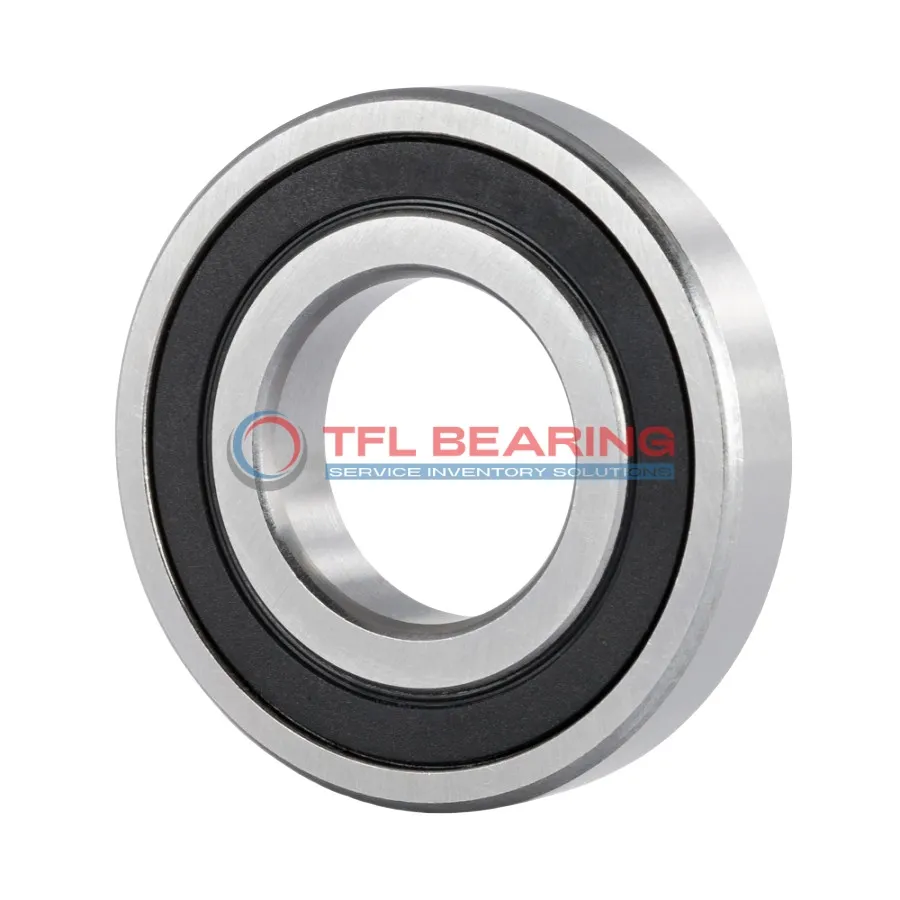

Single Row Deep Groove Ball Bearings 6209-2RS1/C3W64

Single Row Deep Groove Ball Bearings 6209-2RS1/C3W64

The 6209-2RS1/C3W64 is a single-row deep groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7351 lbf and operates smoothly at speeds up to 7700 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long service life without frequent maintenance. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Suitable for electric motors, pumps, or gearboxes where radial loads are common.

Weighing 407g, it’s a robust yet lightweight choice. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6209-2RS1/C3W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7351 lbf
  • Static Radial Load 4564 lbf
  • Max Speed 7700 rpm
  • Weight 407 g
  • price（$） 18.045
Single Row Deep Groove Ball Bearings 6209-2RS1/C3W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6209-2RS1/C3W64 Bearing

6209-2RS1/C3W64 Bearing is built with chrome steel rings and balls, ensuring durability and resistance to wear.
Its sealed design protects against contaminants, making it suitable for various environments.
With a dynamic radial load capacity of 7351 lbf, it handles heavy loads efficiently.
The solid oil lubrication extends maintenance intervals, reducing operational costs.
Operating temperatures range from -30°C to 120°C, providing reliable performance in diverse conditions.

Application

Common Applications of 6209-2RS1/C3W64 Bearing
6209-2RS1/C3W64 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design keeps contaminants out and extends service life. The solid oil lubrication ensures smooth operation even in demanding environments.

In automotive applications, 6209-2RS1/C3W64 Bearing is a reliable choice for wheel hubs and alternators, thanks to its radial load capacity and temperature resistance. Its metric sizing makes it easy to fit into various vehicle models.

For home appliances like washing machines, 6209-2RS1/C3W64 Bearing provides quiet and efficient performance. The chrome steel construction ensures durability, while the sealed design reduces maintenance needs.

Where Is 6209-2RS1/C3W64 Bearing Used?
You’ll often find 6209-2RS1/C3W64 Bearing in conveyor systems, where its radial load handling and sealed protection are ideal for dusty or wet conditions. The C3 clearance also accommodates thermal expansion in continuous operations.

In robotics, 6209-2RS1/C3W64 Bearing supports precise movements in joints and actuators. Its solid oil lubrication minimizes friction, making it suitable for high-speed automation tasks.
