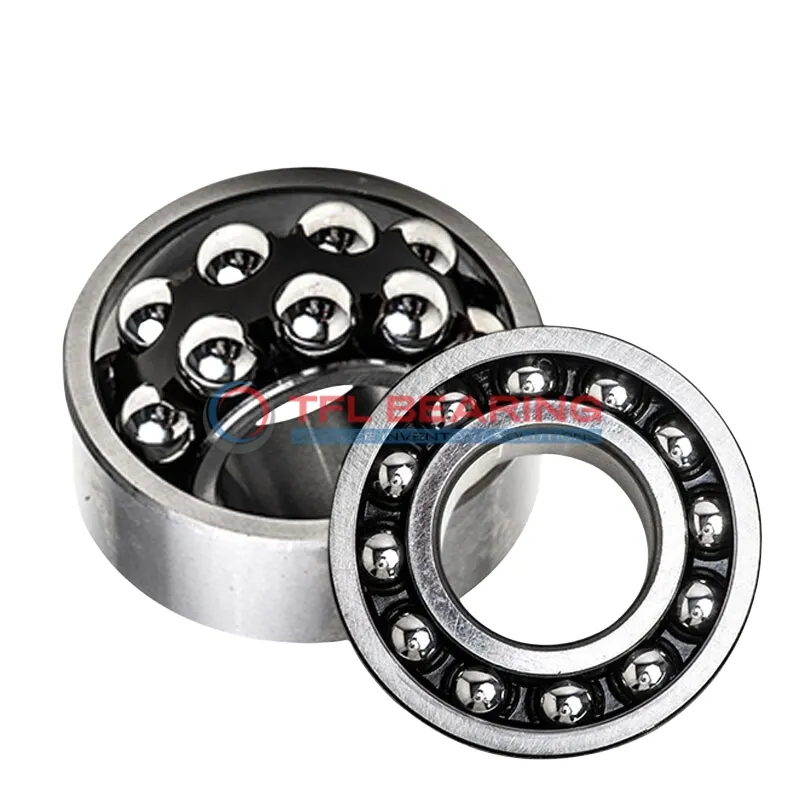

Self Aligning Ball Bearings 1200 ETN9

Self Aligning Ball Bearings 1200 ETN9

The 1200 ETN9 is a compact self-aligning ball bearing, measuring 10mm in bore and 30mm in outer diameter, with a slim width of 9mm. Made from chrome steel, it’s built to handle radial loads up to 1244 lbf.

Its double-row design allows for slight misalignment, making it forgiving in less precise setups. The open seal type and nylon cage ensure smooth operation at speeds up to 36,000 RPM.

Pre-lubricated for easy use, it performs reliably in temperatures from -30°C to 110°C. Weighing just 34 grams, it’s lightweight yet durable.

Ideal for applications like small motors or conveyor systems where alignment flexibility is needed. Compliant with RoHS and REACH standards, it’s a practical choice for replacements, especially as it’s interchangeable with SKF models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1200 ETN9
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 9 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 16.5 mm
  • Internal Diameter On Outer Ring 23.5 mm
  • Chamfer Dimension 0.6 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 1244 lbf
  • Static Radial Load 266 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 36000 rpm
  • Weight 0.034 kg
  • Price（$） 7.88
Self Aligning Ball Bearings 1200 ETN9 dimension drawing
Download DWG Download PDF

Features

Why Choose 1200 ETN9 Bearing for Precision Tasks?

1200 ETN9 Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 1244 lbf makes it suitable for high-performance applications.
The nylon cage maintains ball alignment, reducing friction and enhancing smooth operation.
With a maximum speed of 36,000 rpm, it delivers reliable performance in demanding conditions.

Application

Industrial Uses of 1200 ETN9 Bearing
1200 ETN9 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design ensures smooth operation even under varying radial loads.

In automotive applications, 1200 ETN9 Bearing fits well in gearboxes and electric motors, thanks to its compact size and reliable performance. The nylon cage reduces friction, making it suitable for high-speed operations.

For automation equipment, 1200 ETN9 Bearing’s open design allows easy lubrication, extending its service life in robotic arms. Its chrome steel construction provides durability in continuous use scenarios.

What Makes 1200 ETN9 Bearing a Preferred Choice?
1200 ETN9 Bearing works well in household appliances like washing machines, where its self-aligning capability handles vibrations effectively. The metric sizing ensures compatibility with various European models.

In medical devices, 1200 ETN9 Bearing’s smooth operation is ideal for precision instruments like lab equipment. The lubricated design ensures quiet performance, crucial in sensitive environments.
