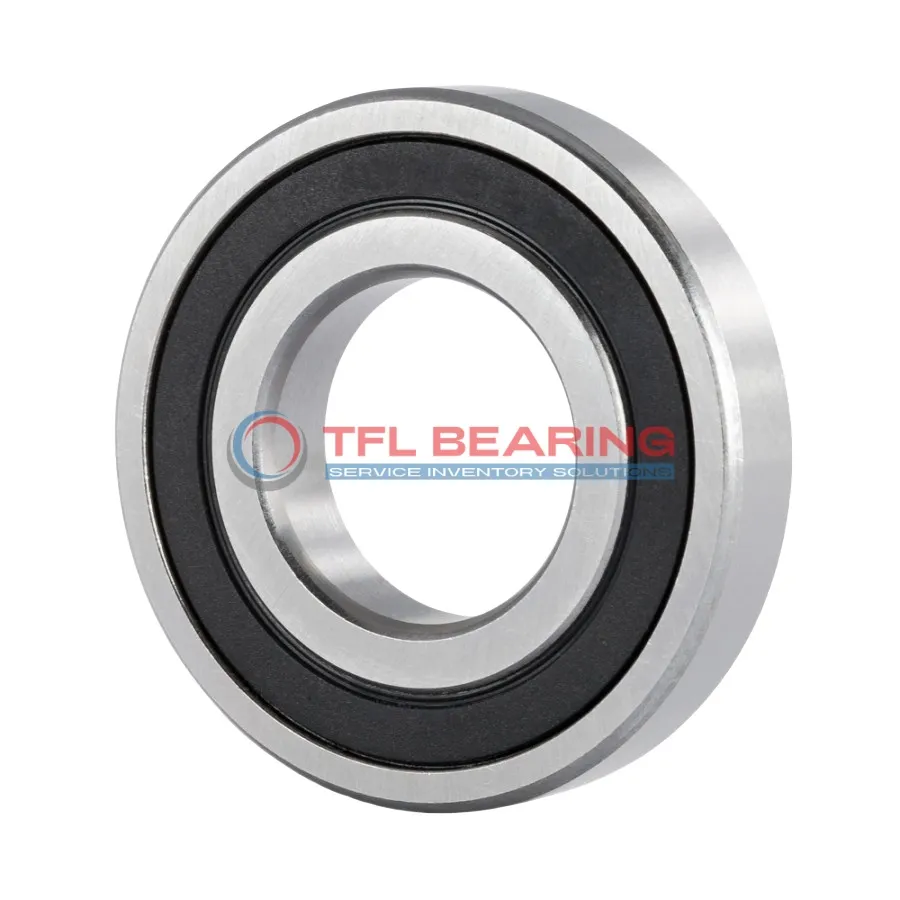

Single Row Deep Groove Ball Bearings 6209-2RS1/C3VT901

The 6209-2RS1/C3VT901 is a single-row deep groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel for durability. It manages radial loads up to 7351 lbf and operates smoothly at speeds up to 7700 RPM.

Its sealed design keeps out dirt and moisture, extending its lifespan, while the C3 radial clearance allows for thermal expansion in various conditions. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 407g, it’s a robust yet manageable size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6209-2RS1/C3VT901
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 45 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 85 mm
Outer Dia Tolerance -0.015mm to 0
Width 19 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 7351 lbf
Static Radial Load 4564 lbf
Max Speed 7700 rpm
Weight 407 g

Single Row Deep Groove Ball Bearings 6209-2RS1/C3VT901 dimension drawing

Download DWG Download PDF

Features

Performance Features of 6209-2RS1/C3VT901 Bearing

6209-2RS1/C3VT901 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 7351 lbf, ensuring reliable performance in various applications.

The sealed design of 6209-2RS1/C3VT901 Bearing protects against dust and moisture, enhancing durability.
With a maximum speed of 7,700 rpm, it delivers smooth operation under demanding conditions.

6209-2RS1/C3VT901 Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its C3 radial clearance provides optimal performance under varying thermal conditions.

The chrome steel cage ensures proper ball alignment, reducing wear and extending service life.
This design makes 6209-2RS1/C3VT901 Bearing suitable for both industrial and automotive applications.

Application

Industrial Uses of 6209-2RS1/C3VT901 Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design protects against dust and moisture. The C3 clearance ensures reliable performance even under varying thermal conditions.

Where Is 6209-2RS1/C3VT901 Bearing Used?
You’ll often find 6209-2RS1/C3VT901 Bearing in automotive applications such as alternators and wheel hubs. Its chrome steel construction offers durability, while the sealed design keeps contaminants out for longer service life.

Perfect Fit for Automation: 6209-2RS1/C3VT901 Bearing
In robotic arms and conveyor systems, 6209-2RS1/C3VT901 Bearing provides smooth rotation with minimal maintenance. The metric sizing makes it easy to integrate into various European and Asian equipment designs.

Medical vs Industrial: Where 6209-2RS1/C3VT901 Bearing Excels
While suitable for industrial gearboxes, 6209-2RS1/C3VT901 Bearing also works well in medical devices like centrifuges. Its consistent performance and sealed construction make it versatile across different environments.
