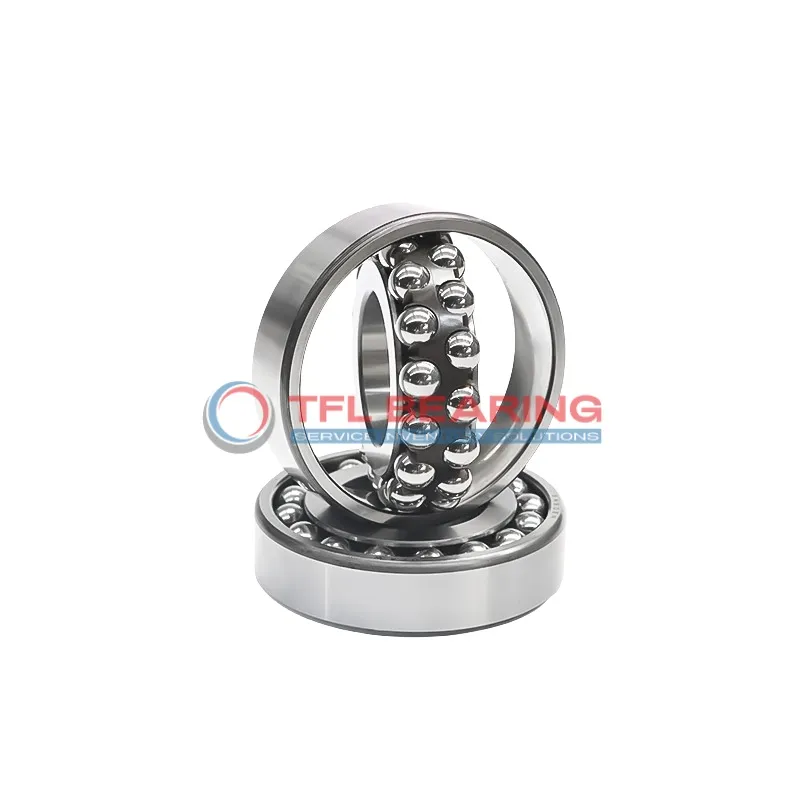

Self Aligning Ball Bearings 2209 C/3

Self Aligning Ball Bearings 2209 C/3

The 2209 C/3 is a self-aligning ball bearing with a 45mm bore and 85mm outer diameter, designed for radial loads. Its double-row construction and sealed design offer reliable performance in various conditions.

Made from chrome steel with a nylon cage, it handles dynamic radial loads up to 5152 lbf and operates smoothly at speeds up to 5300 RPM. The bearing comes pre-lubricated for easy use.

Its self-aligning feature compensates for minor misalignments, reducing wear and tear. Suitable for temperatures between -30°C and 110°C, it’s a versatile choice for industrial applications.

Weighing 0.53kg, this bearing is robust yet manageable. Compliant with RoHS and REACH standards, it’s a safe and dependable option for machinery requiring radial load support.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2209 C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 52.9 mm
  • Internal Diameter On Outer Ring 75.25 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5152 lbf
  • Static Radial Load 1755 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5300 rpm
  • Weight 0.53 kg
  • Price（$） 32.23
Self Aligning Ball Bearings 2209 C/3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 2209 C/3 Bearing

2209 C/3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.

Its dynamic radial load capacity reaches 5152 lbf, ensuring reliable performance in various applications.

The nylon cage keeps the balls aligned, reducing friction and extending service life.

With a maximum speed of 5,300 rpm, it balances durability and efficiency.

How Does 2209 C/3 Bearing Reduce Friction?

2209 C/3 Bearing’s double-row design ensures smooth operation by evenly distributing radial loads.

The nylon cage minimises friction, contributing to quieter and more efficient performance.

Its sealed construction keeps contaminants out, reducing wear and maintenance needs.

The chrome steel components provide long-lasting durability in demanding conditions.

Engineered for Precision: 2209 C/3 Bearing

2209 C/3 Bearing features a cylindrical bore for precise fitting and alignment.

Its radial clearance of CN ensures optimal performance in various operating conditions.

The bearing’s sealed design protects against dust and moisture, enhancing reliability.

With a temperature range of -30° to 110°C, it performs well in diverse environments.

Application

Industrial Uses of 2209 C/3 Bearing
2209 C/3 Bearing is commonly used in conveyor systems and material handling equipment, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, extending service life in dusty environments.

In automotive applications, 2209 C/3 Bearing fits well in wheel hubs and suspension systems, offering reliable radial load support. Its nylon cage reduces noise, making it suitable for passenger vehicles.

For robotics, 2209 C/3 Bearing ensures smooth movement in articulated joints and rotating arms. The double-row construction provides added stability, which is essential for precision tasks.

Where Is 2209 C/3 Bearing Used?
You’ll often find 2209 C/3 Bearing in industrial fans and blowers, where its ability to handle radial loads is key. The lubricated design ensures consistent performance even at higher speeds.

In household appliances like washing machines, 2209 C/3 Bearing reduces vibration and noise. Its chrome steel construction offers durability for daily use.

Built for Heavy-Duty Use: 2209 C/3 Bearing
2209 C/3 Bearing excels in construction equipment, such as compactors and excavators, where shock loads are common. The CN radial clearance provides a balance between precision and durability.

For agricultural machinery, 2209 C/3 Bearing withstands harsh conditions like dust and moisture. The sealed design protects internal components, ensuring long-term reliability.

Automotive vs Aerospace: Applications of 2209 C/3 Bearing
In automotive gearboxes, 2209 C/3 Bearing handles radial loads efficiently, while its self-aligning feature accommodates shaft deflections. The metric sizing ensures compatibility with global vehicle standards.

For aerospace ground support equipment, 2209 C/3 Bearing offers reliable performance in load-bearing components. Its temperature range suits both indoor and outdoor operations.
