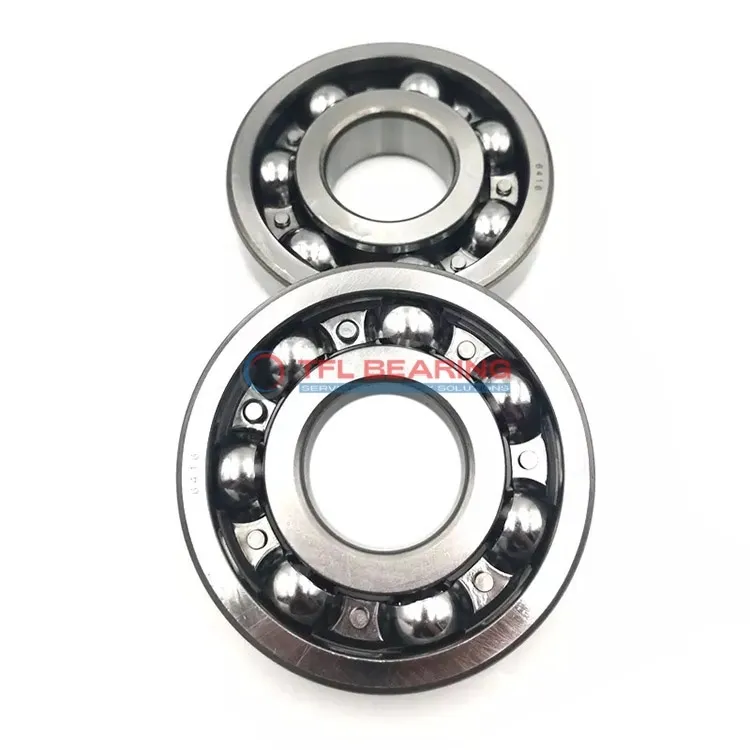

Single Row Deep Groove Ball Bearings 6208 TN9/C4MVE414E

The 6208 TN9/C4MVE414E is a single-row deep groove ball bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 6542 lbf and spins smoothly at speeds up to 8300 RPM.

Its open design allows for easy lubrication, while the nylon cage reduces friction and noise. The bearing operates well in temperatures from -30°C to 120°C.

With a C4 radial clearance, it offers flexibility for thermal expansion in various applications. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for electric motors or pumps where reliable radial load support is needed. Weighing 366g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6208 TN9/C4MVE414E
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Open
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C4
Bore Dia 40 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 80 mm
Outer Dia Tolerance -0.013mm to 0
Width 18 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Nylon
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 6542 lbf
Static Radial Load 4002 lbf
Max Speed 8300 rpm
Weight 366 g

Single Row Deep Groove Ball Bearings 6208 TN9/C4MVE414E dimension drawing

Download DWG Download PDF

Features

Performance Features of 6208 TN9/C4MVE414E Bearing

6208 TN9/C4MVE414E Bearing is built with chrome steel rings and balls, offering excellent radial load capacity.
Its dynamic radial load rating of 6542 lbf ensures reliable performance in various applications.

The nylon cage in 6208 TN9/C4MVE414E Bearing reduces friction and noise, enhancing smooth operation.
With a maximum speed of 8,300 rpm, it balances efficiency and durability for high-speed tasks.

6208 TN9/C4MVE414E Bearing operates in temperatures from -30°C to 120°C, adapting to diverse environments.
Its open design simplifies maintenance, making it a practical choice for long-term use.

Application

Industrial Uses of 6208 TN9/C4MVE414E Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently. The open seal allows for easy lubrication, making it suitable for high-speed applications.

Where Is 6208 TN9/C4MVE414E Bearing Used?
You’ll often find it in automotive components such as alternators and wheel hubs, thanks to its reliable performance under varying loads. The nylon cage reduces friction, ensuring smoother operation over time.

Built for Heavy-Duty Use: 6208 TN9/C4MVE414E Bearing
In automation systems, this bearing supports robotic arms and conveyor belts, where precision and durability are key. Its chrome steel construction ensures long-lasting performance even in demanding conditions.

Automotive vs Industrial: Applications of 6208 TN9/C4MVE414E Bearing
While it excels in car transmissions, it’s equally effective in factory equipment like gearboxes. The C4 clearance provides flexibility for thermal expansion, making it versatile across different environments.

Perfect Fit for Automation: 6208 TN9/C4MVE414E Bearing
This bearing works well in 3D printers and CNC machines, where smooth rotation is essential. Its metric sizing ensures compatibility with a wide range of machinery, simplifying replacements.
