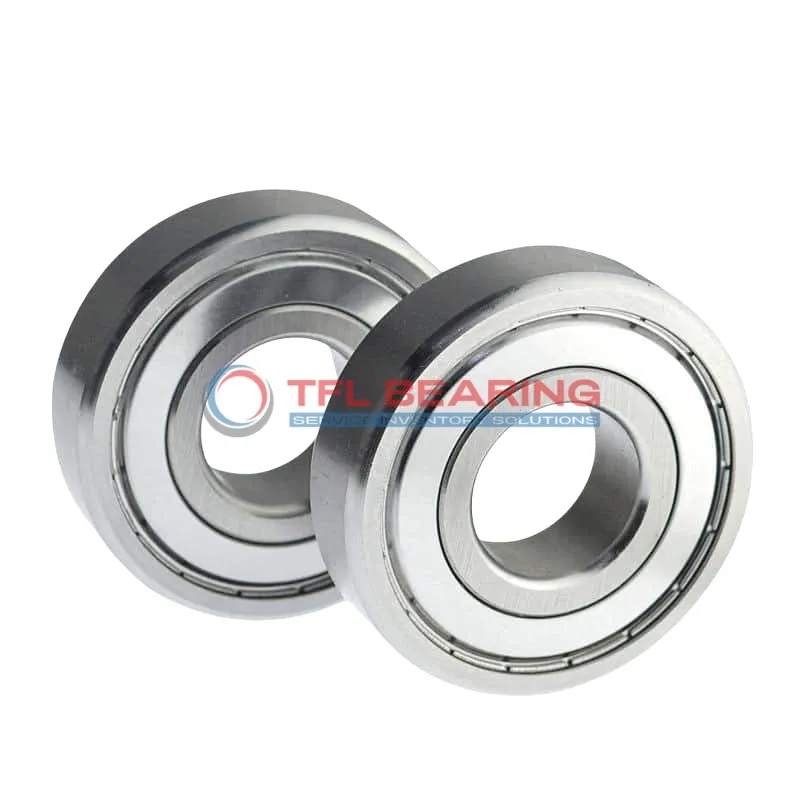

Single Row Deep Groove Ball Bearings 6207-ZJEM

Single Row Deep Groove Ball Bearings 6207-ZJEM

The 6207-ZJEM is a single-row deep groove ball bearing with a 35mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5778 lbf and operates smoothly at speeds up to 9200 RPM.

Its shielded design keeps out dust and debris, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing just 288g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe and reliable choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6207-ZJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 5778 lbf
  • Static Radial Load 3462 lbf
  • Max Speed 9200 rpm
  • Weight 288 g
  • price（$） 4.131
Single Row Deep Groove Ball Bearings 6207-ZJEM dimension drawing
Download DWG Download PDF

Features

Performance Features of 6207-ZJEM Bearing

6207-ZJEM Bearing is built with chrome steel rings and balls, ensuring durability and resistance to wear.
Its shielded design protects against contaminants, making it suitable for various industrial applications.

The bearing handles dynamic radial loads up to 5778 lbf, providing reliable performance under stress.
With a maximum speed of 9,200 rpm, it offers smooth operation for high-speed machinery.

6207-ZJEM Bearing operates in temperatures from -30°C to 120°C, adapting to diverse working conditions.
Its ABEC 1 tolerance class ensures consistent performance for general-purpose applications.

The chrome steel cage maintains ball alignment, reducing friction and extending service life.
This design makes 6207-ZJEM Bearing a cost-effective choice for radial load requirements.

Application

Industrial Uses of 6207-ZJEM Bearing
6207-ZJEM Bearing is commonly used in conveyor systems and electric motors, where its shielded design helps keep out dust and debris. The chrome steel construction ensures it can handle radial loads efficiently in these demanding environments.

What Makes 6207-ZJEM Bearing a Preferred Choice?
In automotive applications like alternators and water pumps, 6207-ZJEM Bearing offers reliable performance thanks to its balanced radial load capacity. Its metric sizing makes it a versatile fit for various vehicle models.

Perfect Fit for Automation: 6207-ZJEM Bearing
This bearing works well in robotic arms and assembly line equipment, where smooth rotation is key. The ABEC 1 tolerance ensures consistent performance without unnecessary complexity.

Medical vs Industrial: Where 6207-ZJEM Bearing Excels
While suitable for industrial gearboxes, 6207-ZJEM Bearing also meets the precision needs of medical centrifuges. Its temperature range allows stable operation in both settings.

Light-Duty vs Heavy-Duty: Best Uses for 6207-ZJEM Bearing
From small appliances to agricultural machinery, 6207-ZJEM Bearing adapts well to different load requirements. The shielded seals provide extra protection in dusty or humid conditions.
