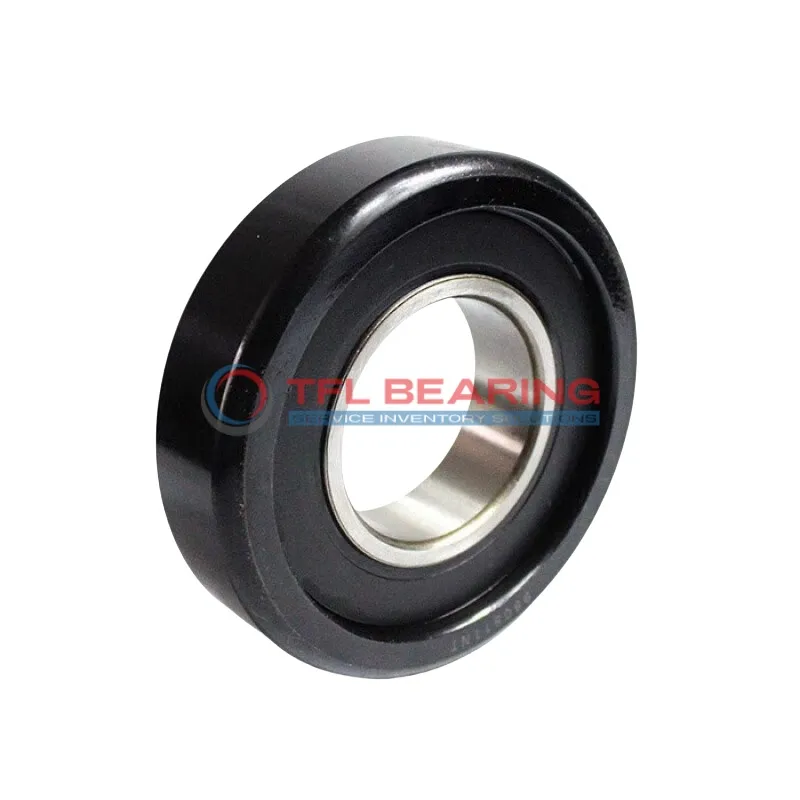

Mast Guide Bearings MG 307 FFTT‑L

Mast Guide Bearings MG 307 FFTT‑L

The MG 307 FFTT‑L is a mast guide bearing measuring 35mm in inner diameter and 96.7mm in outer diameter, with a compact width of 25mm. Built for durability, it handles dynamic loads up to 33,540 N and static loads up to 19,230 N.

Its sturdy construction includes a 21mm inner ring width and a 5mm radius, ensuring smooth operation under pressure. The bearing’s design makes it suitable for guiding applications where precision is key.

Weighing just under 0.93kg, it’s lightweight yet robust for its size. Ideal for use in mast systems or other industrial equipment requiring reliable guidance and load support.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 307 FFTT‑L
  • Brand TFL & OEM
  • Inner Diameter (d) 35.000 mm
  • Outer Diameter (D) 96.70 mm
  • Inner Ring Width (b) 21 mm
  • Outer Ring Width (B) 25.000 mm
  • Radius (R) 5 mm
  • Dynamic Capacity (Cr.) 33,540 N
  • Static Capacity (Cor.) 19,230 N
  • Weight 0.9299 Kg
Mast Guide Bearings MG 307 FFTT‑L dimension drawing
Download DWG Download PDF

Features

How Does MG 307 FFTT‑L Bearing Handle Heavy Loads?

MG 307 FFTT‑L Bearing features a robust design with a dynamic capacity of 33,540 N, making it suitable for heavy-duty applications.
Its static capacity of 19,230 N ensures stability even under significant loads.
The precise dimensions of 35.000 mm x 96.70 mm x 25.000 mm allow for easy integration into various systems.
With a weight of 0.9299 Kg, it offers a balance between strength and portability.

Application

Industrial Uses of MG 307 FFTT‑L Bearing
MG 307 FFTT‑L Bearing is commonly used in heavy machinery, such as construction equipment and cranes, where its robust design handles high radial loads effortlessly. The 35mm bore size makes it a versatile fit for various industrial shafts.

In automotive applications, MG 307 FFTT‑L Bearing ensures smooth operation in steering systems and suspension components, thanks to its durable construction. Its 96.70mm outer diameter provides stability even under constant vibration.

For automation systems, MG 307 FFTT‑L Bearing is a reliable choice for robotic arms and conveyor belts, offering precision and longevity. The 25mm outer ring width ensures it fits snugly into compact spaces without compromising performance.

Where Is MG 307 FFTT‑L Bearing Used?
MG 307 FFTT‑L Bearing finds its place in wind turbines, supporting the mast guide mechanisms with its high dynamic capacity of 33,540 N. Its 5mm radius design also reduces stress concentrations in critical areas.

In agricultural machinery, MG 307 FFTT‑L Bearing withstands harsh conditions, from dust to heavy loads, making it ideal for harvesters and tractors. The stainless steel components add an extra layer of corrosion resistance.

Built for Heavy-Duty Use: MG 307 FFTT‑L Bearing
MG 307 FFTT‑L Bearing excels in mining equipment, where its static capacity of 19,230 N ensures reliability under extreme pressure. The 0.9299 kg weight strikes a balance between strength and ease of installation.

For printing presses, MG 307 FFTT‑L Bearing’s precision reduces paper jams and ensures consistent output. The 21mm inner ring width allows for smooth rotation even at high speeds.
