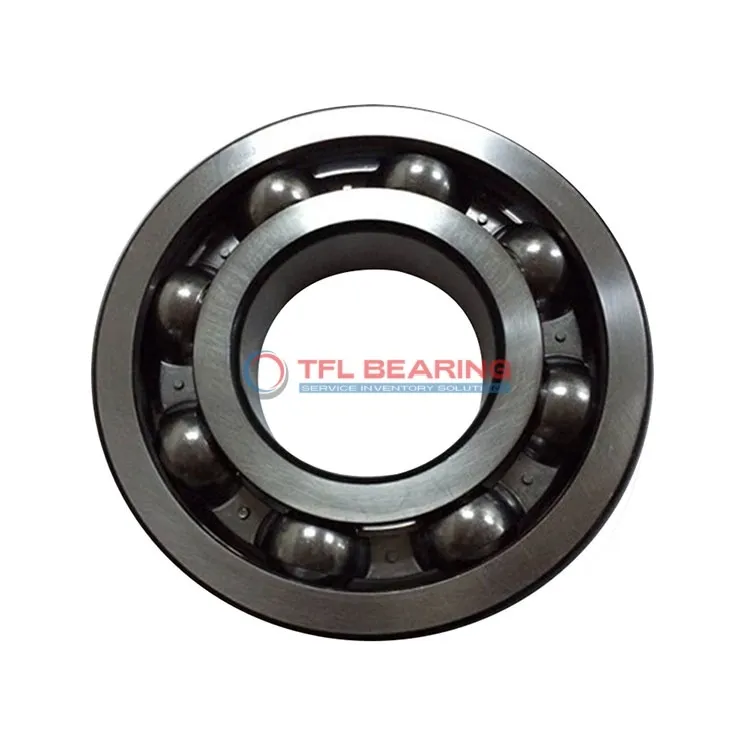

Single Row Deep Groove Ball Bearings 6207 Y/C783

Single Row Deep Groove Ball Bearings 6207 Y/C783

The 6207 Y/C783 is a single row deep groove ball bearing with a 35mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5778 lbf and operates smoothly at speeds up to 9200 RPM.

Its open design simplifies maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 288g, it’s a lightweight yet robust choice. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6207 Y/C783
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 5778 lbf
  • Static Radial Load 3462 lbf
  • Max Speed 9200 rpm
  • Weight 288 g
  • price（$） 57.87
Single Row Deep Groove Ball Bearings 6207 Y/C783 dimension drawing
Download DWG Download PDF

Features

How Does 6207 Y/C783 Bearing Reduce Friction?

6207 Y/C783 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The chrome steel construction ensures durability while maintaining low friction during operation.

Its dynamic radial load capacity of 5778 lbf makes it suitable for various industrial applications.
With a maximum speed of 9,200 rpm, it balances performance and efficiency effortlessly.

The open design simplifies maintenance, while the temperature range of -30°C to 120°C ensures versatility.
This bearing is a reliable choice for both standard and demanding environments.

Application

Common Applications of 6207 Y/C783 Bearing
In industrial settings, 6207 Y/C783 Bearing is widely used in electric motors and pumps, where its radial load capacity ensures smooth operation. The open design allows for easy lubrication, extending service life in demanding environments.

Where Is 6207 Y/C783 Bearing Used?
You’ll often find 6207 Y/C783 Bearing in automotive applications like alternators and water pumps, thanks to its reliable performance under high speeds. Its metric sizing makes it a versatile fit for various vehicle models.

Optimized for Performance: 6207 Y/C783 Bearing
For household appliances like washing machines, 6207 Y/C783 Bearing provides quiet and efficient rotation. The chrome steel construction ensures durability even with frequent use.

Light-Duty vs Heavy-Duty: Best Uses for 6207 Y/C783 Bearing
In light-duty applications like office printers, 6207 Y/C783 Bearing offers precise movement with minimal noise. For heavier tasks like conveyor systems, it handles radial loads without compromising performance.
