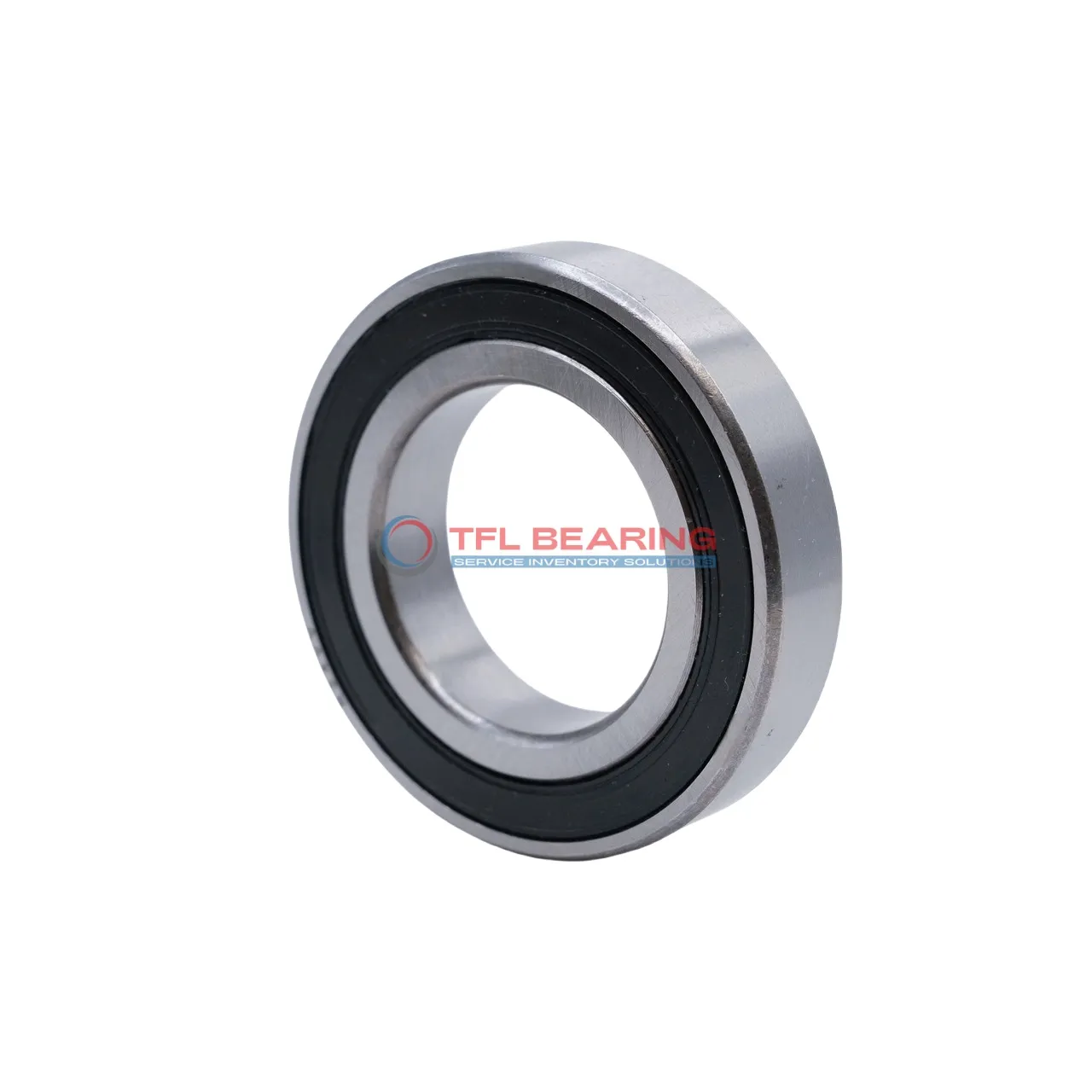

Single Row Deep Groove Ball Bearings 6207-RSJEM

Single Row Deep Groove Ball Bearings 6207-RSJEM

The 6207-RSJEM is a single-row deep groove ball bearing with a 35mm bore and 72mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 5778 lbf and operates smoothly at speeds up to 9200 RPM.

Sealed on both sides, it keeps dirt out and lubrication in, making it low-maintenance. The chrome steel cage adds strength and longevity, even in demanding conditions.

With a temperature range of -30°C to 120°C, it’s suitable for various environments. This model is interchangeable with SKF bearings, offering a reliable replacement option.

Ideal for electric motors, pumps, or conveyor systems where radial load support is needed. Weighing 288g, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6207-RSJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 5778 lbf
  • Static Radial Load 3462 lbf
  • Max Speed 9200 rpm
  • Weight 288 g
  • price（$） 6.219
Single Row Deep Groove Ball Bearings 6207-RSJEM dimension drawing
Download DWG Download PDF

Features

Why Choose 6207-RSJEM Bearing for Precision Tasks?

6207-RSJEM Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 5778 lbf, it handles demanding tasks with ease.
The ABEC 1 tolerance class guarantees reliable precision for various industrial uses.

Operating smoothly up to 9,200 rpm, 6207-RSJEM Bearing balances speed and stability.
Its temperature range of -30°C to 120°C makes it suitable for diverse environments.

The sealed design reduces maintenance needs, saving time and operational costs.
6207-RSJEM Bearing is a practical choice for applications requiring long-lasting performance.

Application

Common Applications of 6207-RSJEM Bearing
In industrial settings, 6207-RSJEM Bearing is commonly used in electric motors and pumps, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability even in demanding environments.

Where Is 6207-RSJEM Bearing Used?
You’ll often find 6207-RSJEM Bearing in automotive applications like alternators and water pumps, thanks to its reliable radial load handling. Its sealed type makes it ideal for areas exposed to dust or moisture.

Ideal for Precision: 6207-RSJEM Bearing
For medical devices like small lab equipment, 6207-RSJEM Bearing offers smooth operation due to its consistent performance. The ABEC 1 tolerance ensures sufficient precision for most standard applications.

Automotive vs Industrial: Applications of 6207-RSJEM Bearing
In cars, 6207-RSJEM Bearing works well in wheel hubs, while in factories, it’s suited for conveyor rollers. The sealed design and chrome steel materials make it versatile across both fields.

Perfect Fit for Automation: 6207-RSJEM Bearing
Robotic arms often use 6207-RSJEM Bearing for its smooth rotation and low maintenance needs. The sealed construction helps prolong service life even in high-cycle operations.
