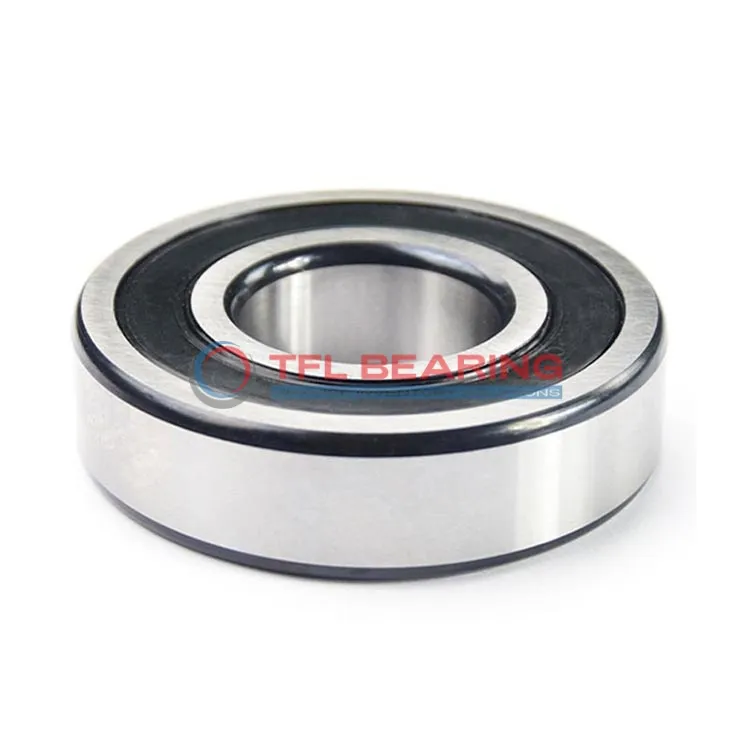

Single Row Deep Groove Ball Bearings 6207-RS1Z/C3

Single Row Deep Groove Ball Bearings 6207-RS1Z/C3

The 6207-RS1Z/C3 is a single-row deep groove ball bearing with a 35mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5778 lbf and operates smoothly at speeds up to 9200 RPM.

Its one-side shielded and one-side sealed design keeps dirt out while retaining lubrication, extending its lifespan. The C3 radial clearance allows for slight thermal expansion, making it adaptable to varying temperatures.

This bearing suits applications like electric motors or pumps where consistent radial load support is needed. It performs reliably in temperatures from -30°C to 120°C.

Weighing 288g, it’s a robust yet lightweight option. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6207-RS1Z/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type One Side Shielded,One Side Seal
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 5778 lbf
  • Static Radial Load 3462 lbf
  • Max Speed 9200 rpm
  • Weight 288 g
Single Row Deep Groove Ball Bearings 6207-RS1Z/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6207-RS1Z/C3 Bearing

6207-RS1Z/C3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 5778 lbf, ensuring reliable performance in various applications.

The one-side shielded and one-side sealed design helps keep contaminants out while retaining lubrication.
This makes 6207-RS1Z/C3 Bearing suitable for environments where dust or moisture might be present.

With a maximum speed of 9,200 rpm, it balances efficiency and durability.
The C3 radial clearance provides optimal performance under varying thermal conditions.

The chrome steel cage ensures smooth operation and reduces wear over time.
6207-RS1Z/C3 Bearing operates effectively in temperatures ranging from -30°C to 120°C.

Application

Common Applications of 6207-RS1Z/C3 Bearing
The 6207-RS1Z/C3 Bearing is widely used in industrial machinery, such as electric motors and pumps, where its single-row design handles radial loads efficiently. The one-side sealed and shielded construction helps keep contaminants out while retaining lubrication.

In automotive applications, 6207-RS1Z/C3 Bearing fits well in wheel hubs and alternators, providing smooth rotation under varying speeds. Its C3 clearance ensures reliable performance even with thermal expansion in engine compartments.

For household appliances like washing machines, 6207-RS1Z/C3 Bearing offers quiet operation and durability. The chrome steel construction resists wear, making it a dependable choice for daily use.

Automation systems benefit from 6207-RS1Z/C3 Bearing’s precision in robotic arms and conveyor belts. The balanced load distribution ensures consistent movement in repetitive tasks.
