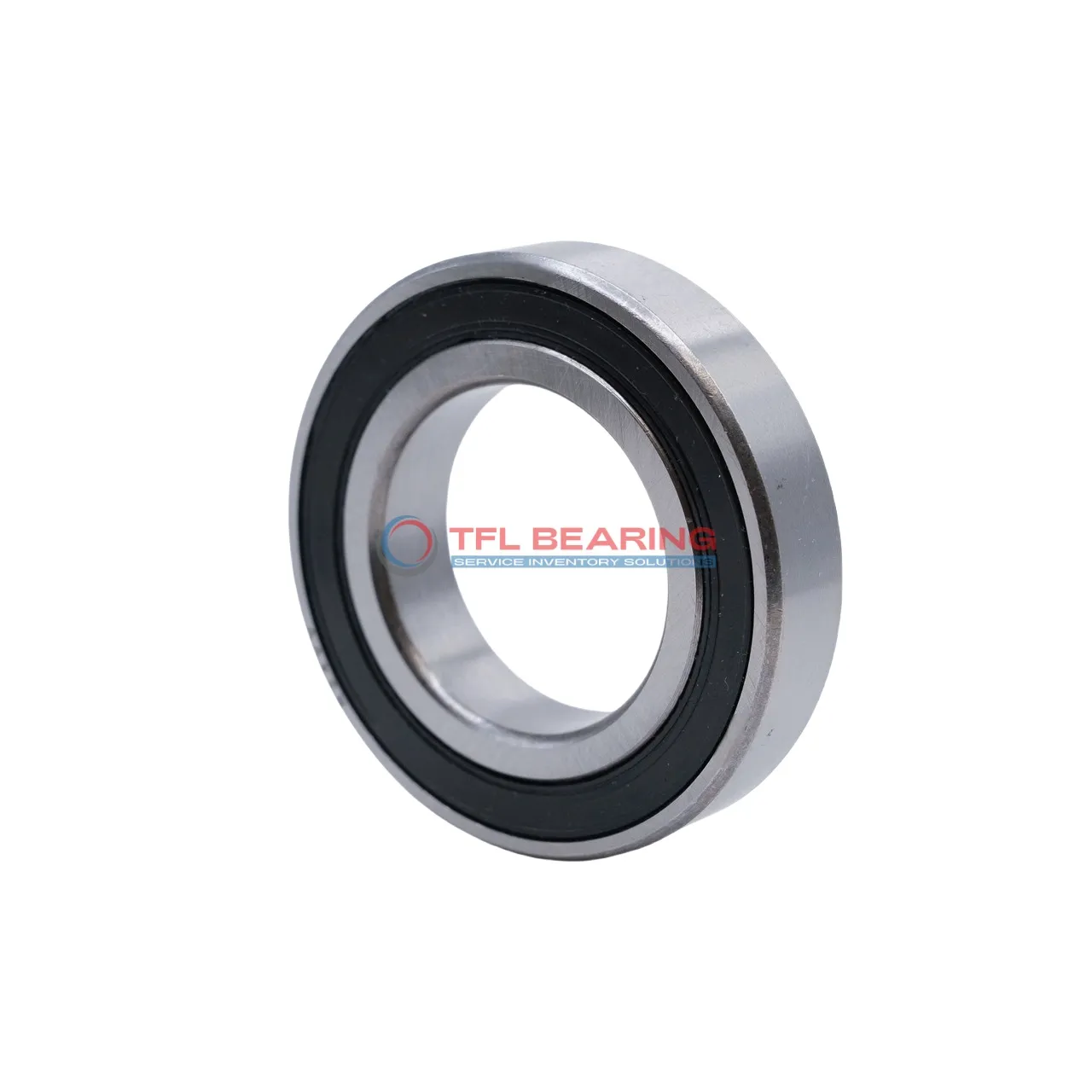

Single Row Deep Groove Ball Bearings 6207-2RZ/C3GJN

Single Row Deep Groove Ball Bearings 6207-2RZ/C3GJN

The 6207-2RZ/C3GJN is a single-row deep groove ball bearing with a 35mm bore and 72mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 5778 lbf and spins smoothly at speeds up to 9200 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The C3 radial clearance allows for slight thermal expansion, ideal for varying temperatures.

With a compact width of 17mm, it fits neatly into tight spaces. Suitable for applications like electric motors or pumps where reliable radial load support is needed.

Weighing 288g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it operates in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6207-2RZ/C3GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 5778 lbf
  • Static Radial Load 3462 lbf
  • Max Speed 9200 rpm
  • Weight 288 g
  • price（$） 7.326
Single Row Deep Groove Ball Bearings 6207-2RZ/C3GJN dimension drawing
Download DWG Download PDF

Features

Performance Features of 6207-2RZ/C3GJN Bearing

6207-2RZ/C3GJN Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load rating of 5778 lbf ensures dependable performance in various applications.
The sealed design protects against dust and moisture, enhancing durability.
With a maximum speed of 9,200 rpm, it delivers smooth and efficient operation.

Why Choose 6207-2RZ/C3GJN Bearing for Precision Tasks?

6207-2RZ/C3GJN Bearing features a single-row deep groove design, ideal for radial load applications.
The C3 radial clearance provides flexibility in different operating conditions.
Its chrome steel construction resists wear, ensuring long service life.
The sealed design reduces maintenance needs, making it a practical choice.

Designed for Durability: 6207-2RZ/C3GJN Bearing

6207-2RZ/C3GJN Bearing’s chrome steel cage keeps the balls aligned, minimising friction.
It operates smoothly in temperatures ranging from -30°C to 120°C.
The sealed construction prevents contaminants from entering, improving reliability.
Its static radial load capacity of 3462 lbf ensures stability under pressure.

Steel vs Ceramic Bearings: Strengths of 6207-2RZ/C3GJN Bearing

6207-2RZ/C3GJN Bearing uses chrome steel for rings and balls, balancing cost and performance.
The material choice ensures good resistance to wear and corrosion.
Its sealed design offers added protection in harsh environments.
With a weight of 288 g, it remains lightweight without compromising strength.

How Does 6207-2RZ/C3GJN Bearing Reduce Friction?

6207-2RZ/C3GJN Bearing’s deep groove design minimises friction during operation.
The chrome steel construction ensures smooth movement under radial loads.
Its sealed design maintains lubrication, reducing wear over time.
The ABEC 1 tolerance class provides consistent performance for general applications.

Application

Industrial Uses of 6207-2RZ/C3GJN Bearing
6207-2RZ/C3GJN Bearing is commonly used in conveyor systems, where its sealed design helps keep out dust and debris. The C3 radial clearance ensures smooth operation even under varying temperatures.

In automotive applications, 6207-2RZ/C3GJN Bearing fits well in electric motors and pumps, thanks to its balanced radial load capacity. The chrome steel construction provides durability for long-term use.

For home appliances like washing machines, 6207-2RZ/C3GJN Bearing offers quiet and reliable performance. Its sealed feature reduces maintenance needs, making it ideal for household use.

In small industrial fans, 6207-2RZ/C3GJN Bearing handles moderate speeds efficiently. The metric sizing ensures compatibility with a wide range of equipment.
