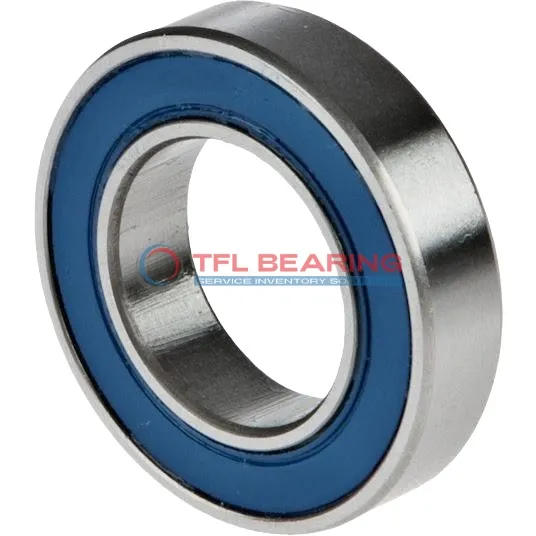

Single Row Deep Groove Ball Bearings 6207-2RS1/GJN

Single Row Deep Groove Ball Bearings 6207-2RS1/GJN

The 6207-2RS1/GJN is a sealed single-row deep groove ball bearing with a 35mm bore and 72mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 5778 lbf and operates smoothly at speeds up to 9200 RPM.

Its sealed design keeps dirt out and grease in, reducing maintenance needs. The chrome steel cage adds strength and longevity, making it a reliable choice for various applications.

This bearing works well in temperatures from -30°C to 120°C, suitable for both industrial and everyday use. It’s interchangeable with SKF bearings, offering a cost-effective replacement option.

Weighing 288g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use. Ideal for electric motors, pumps, or machinery requiring consistent radial load support.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6207-2RS1/GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 5778 lbf
  • Static Radial Load 3462 lbf
  • Max Speed 9200 rpm
  • Weight 288 g
  • price（$） 6.021
Single Row Deep Groove Ball Bearings 6207-2RS1/GJN dimension drawing
Download DWG Download PDF

Features

Why Choose 6207-2RS1/GJN Bearing for Precision Tasks?

6207-2RS1/GJN Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 5778 lbf, it handles demanding conditions effortlessly.
The bearing operates smoothly at speeds up to 9,200 rpm, making it suitable for high-speed machinery.

Its ABEC 1 tolerance class provides reliable precision for various industrial uses.
The temperature range of -30°C to 120°C allows for versatile application in different environments.

Maintenance is minimal due to its sealed design and high-quality materials.
This makes 6207-2RS1/GJN Bearing a cost-effective choice for long-term use.

Application

Common Applications of 6207-2RS1/GJN Bearing
In industrial machinery, 6207-2RS1/GJN Bearing is widely used in pumps and electric motors due to its reliable radial load capacity. The sealed design keeps contaminants out, extending service life in dusty environments.
For automotive applications, 6207-2RS1/GJN Bearing fits well in alternators and wheel hubs, where its balanced performance handles both speed and load demands. The chrome steel construction ensures durability under constant use.
In household appliances like washing machines, 6207-2RS1/GJN Bearing provides quiet and smooth operation. Its sealed nature makes it low-maintenance, ideal for everyday consumer products.
The 6207-2RS1/GJN Bearing also suits small-scale automation, such as conveyor belts in packaging lines. Its consistent performance and easy installation make it a go-to choice for light industrial setups.
