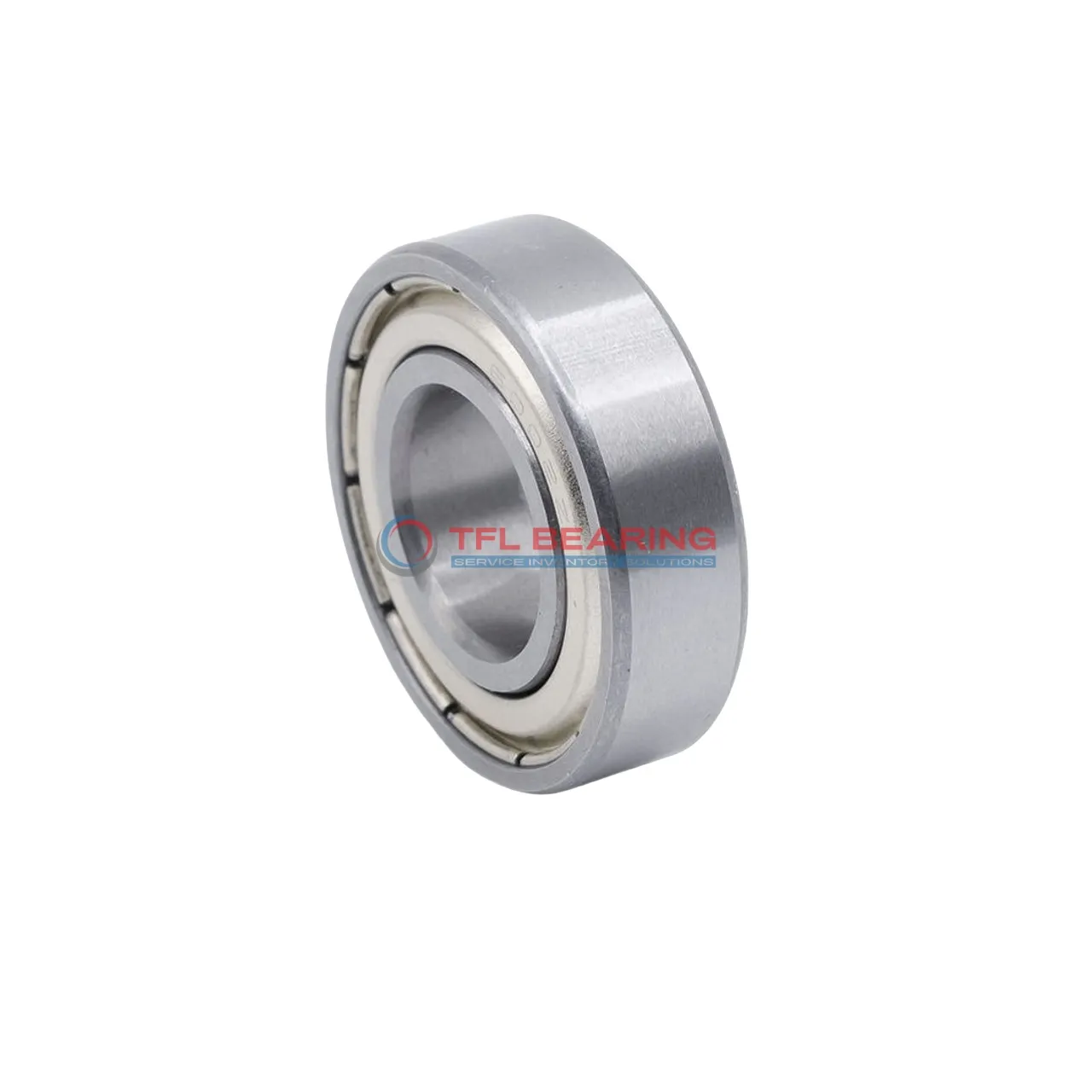

Single Row Deep Groove Ball Bearings 6206-ZJEM

Single Row Deep Groove Ball Bearings 6206-ZJEM

The 6206-ZJEM is a single-row deep groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 4384 lbf and operates smoothly at speeds up to 11000 RPM.

Its shielded design keeps out dust and debris, while the chrome steel cage ensures durability. The bearing works efficiently in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Perfect for applications like electric motors or small machinery where radial loads are common.

Weighing just 199g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe and dependable choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6206-ZJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4384 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 199 g
  • price（$） 3.096
Single Row Deep Groove Ball Bearings 6206-ZJEM dimension drawing
Download DWG Download PDF

Features

How Does 6206-ZJEM Bearing Reduce Friction?

6206-ZJEM Bearing features a single-row deep groove design, optimised for smooth radial load handling.
The shielded construction helps keep contaminants out while maintaining low friction during operation.

Made from chrome steel rings and balls, it offers reliable performance with a dynamic radial load capacity of 4384 lbf.
Its ABEC 1 tolerance ensures consistent operation, suitable for various industrial applications.

With a maximum speed of 11,000 rpm, it balances efficiency and durability.
The 6206-ZJEM Bearing operates in temperatures ranging from -30°C to 120°C, making it versatile for different environments.

The chrome steel cage enhances stability, reducing wear over time.
This design ensures long service life with minimal maintenance required.

Application

Industrial Uses of 6206-ZJEM Bearing
6206-ZJEM Bearing is commonly used in conveyor systems and electric motors, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability in demanding industrial environments.

What Makes 6206-ZJEM Bearing a Preferred Choice?
In automotive applications like alternators and water pumps, 6206-ZJEM Bearing provides reliable radial load support. Its ABEC 1 tolerance makes it suitable for general machinery where precision is important but not critical.

Built for Heavy-Duty Use: 6206-ZJEM Bearing
You’ll find 6206-ZJEM Bearing in household appliances like washing machines, where its smooth operation reduces noise. The wide temperature range allows it to perform well in various climates.

Automotive vs Industrial: Applications of 6206-ZJEM Bearing
For small machinery and power tools, 6206-ZJEM Bearing offers a good balance of performance and cost. Its metric sizing makes it easy to replace in most European and Asian equipment.
