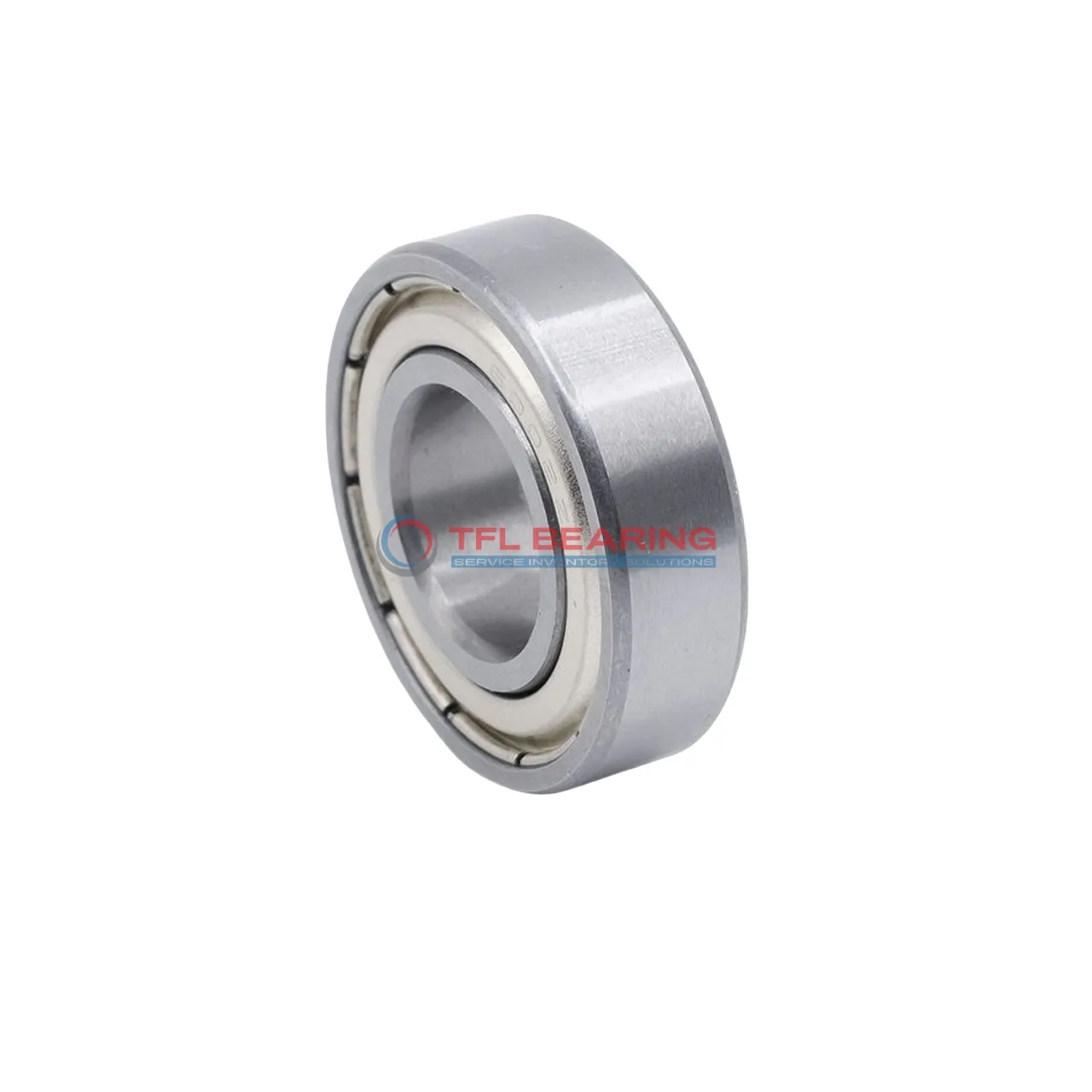

Single Row Deep Groove Ball Bearings 6206-Z/GJN

Single Row Deep Groove Ball Bearings 6206-Z/GJN

The 6206-Z/GJN is a single-row deep groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4384 lbf and spins smoothly at speeds up to 11000 RPM.

Its shielded design keeps dirt out while maintaining easy access for lubrication. The chrome steel cage adds durability, making it a long-lasting choice.

This bearing is interchangeable with SKF models, ideal for replacements in motors or pumps. It performs well in temperatures from -30°C to 120°C.

Weighing just 199g, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards, it’s a reliable option for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6206-Z/GJN
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4384 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 199 g
  • price（$） 3.078
Single Row Deep Groove Ball Bearings 6206-Z/GJN dimension drawing
Download DWG Download PDF

Features

Why Choose 6206-Z/GJN Bearing for Precision Tasks?

6206-Z/GJN Bearing features a single-row deep groove design, optimised for radial load applications.
Its shielded construction protects against contaminants, ensuring consistent performance.

The chrome steel rings and balls enhance durability, while the cage maintains alignment under stress.
With a dynamic radial load capacity of 4384 lbf, it handles demanding conditions reliably.

Operating within -30°C to 120°C, 6206-Z/GJN Bearing suits various industrial environments.
Its ABEC 1 tolerance class ensures smooth rotation for precision tasks.

Designed for high-speed use, it supports up to 11,000 rpm without compromising stability.
The compact 30 mm bore and 62 mm outer diameter make it versatile for multiple setups.

Application

Common Applications of 6206-Z/GJN Bearing
In industrial settings, 6206-Z/GJN Bearing is widely used in electric motors and pumps, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability even in demanding environments.

Where Is 6206-Z/GJN Bearing Used?
You’ll often find 6206-Z/GJN Bearing in automotive applications like alternators and water pumps, thanks to its reliable radial load handling. Its ABEC 1 tolerance makes it a cost-effective choice for standard performance needs.

Built for Heavy-Duty Use: 6206-Z/GJN Bearing
For household appliances like washing machines, 6206-Z/GJN Bearing provides smooth operation with minimal maintenance. The shielded seals protect against dust and moisture, extending its lifespan.

Automotive vs Industrial: Applications of 6206-Z/GJN Bearing
In automotive systems, 6206-Z/GJN Bearing supports components like fans and pulleys, while in industrial gearboxes, it handles moderate radial loads efficiently. Its versatility makes it a popular choice across sectors.

How Does 6206-Z/GJN Bearing Support High-Speed Operations?
With a max speed of 11,000 rpm, 6206-Z/GJN Bearing is ideal for small machinery and power tools. The chrome steel cage ensures stability even during prolonged use.
