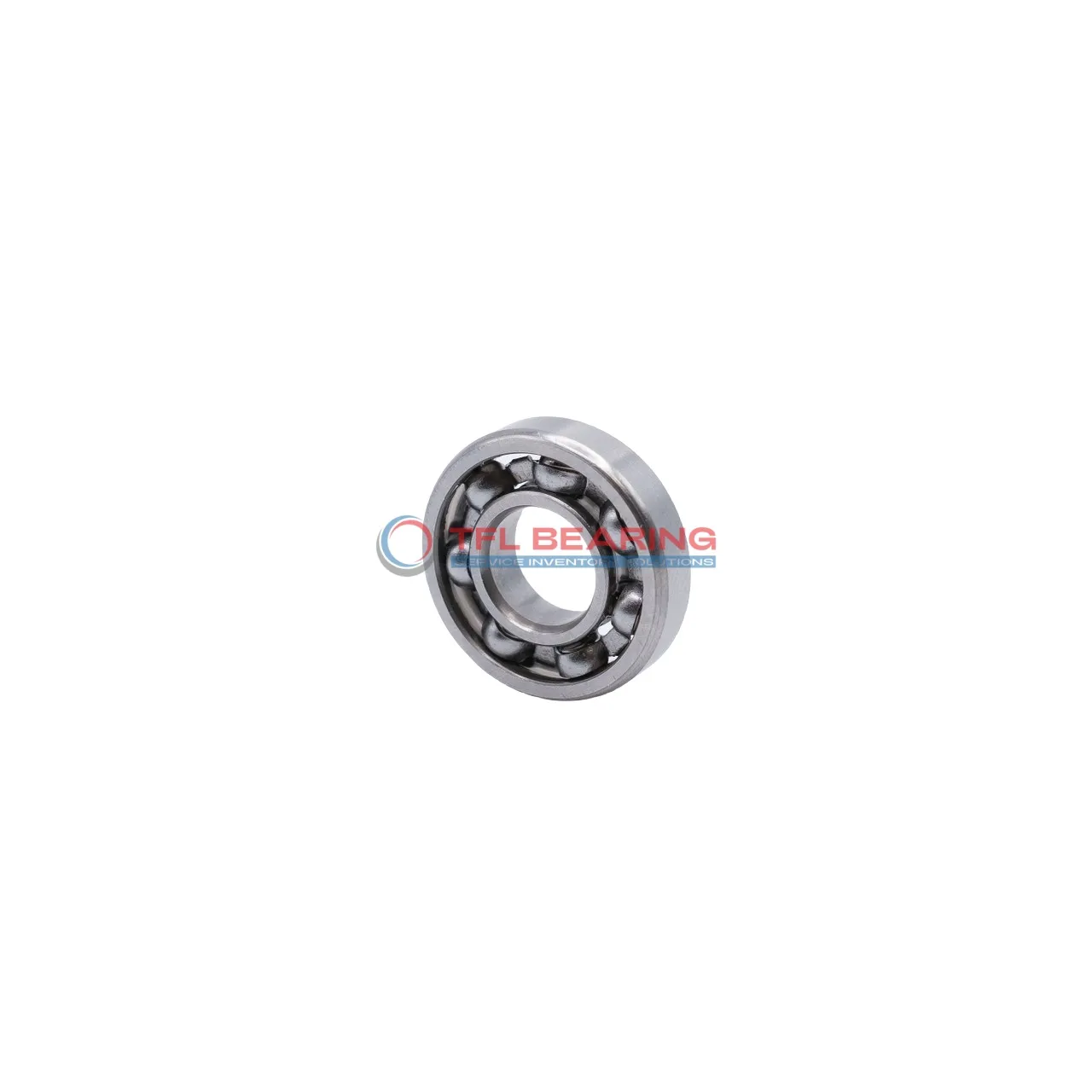

Metric Size Standard Miniature Ball Bearings MR106

Metric Size Standard Miniature Ball Bearings MR106

The MR106 is a compact miniature ball bearing with a 6mm bore and 10mm outer diameter, measuring just 2.5mm wide. Made from chrome steel, it’s built to handle radial loads up to 95 lbf while spinning smoothly at speeds up to 45,000 RPM.

Its open design allows for easy lubrication, and the stainless steel cage ensures durability. With a radial clearance of 0.002mm to 0.013mm, it offers smooth operation for precision applications.

This bearing is ideal for small devices like model motors or precision instruments where space is limited. It works well in temperatures from -30°C to 110°C and complies with RoHS and REACH standards.

Weighing only 0.55g, it’s lightweight yet robust for its size, making it a practical choice for compact machinery.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MR106
  • Brand TFL
  • Interchangeable EZO
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 10 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 2.5 mm
  • Width Tolerance -0.12mm to 0
  • Ball Qty 10
  • Ball Dia 1.2000 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Seal Type Open
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 95 lbf
  • Static Radial Load 39 lbf
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 45000 rpm
  • Weight 0.55 g
  • Price（$） 1.035
Metric Size Standard Miniature Ball Bearings MR106 dimension drawing
Download DWG Download PDF

Features

How Does MR106 Bearing Reduce Friction?

MR106 Bearing features chrome steel rings and balls, designed to minimise friction during operation.
Its precision construction ensures smooth radial movement, ideal for high-speed applications.

The stainless steel cage maintains ball alignment, reducing wear and enhancing performance.
With a maximum speed of 45,000 rpm, it delivers reliable efficiency in compact designs.

MR106 Bearing operates within a temperature range of -30° to 110°C, suitable for varied environments.
Its lightweight design at 0.55g makes it perfect for miniature applications.

Application

Common Applications of MR106 Bearing
MR106 Bearing is widely used in small electric motors, such as those found in cooling fans or power tools, thanks to its compact size and reliable radial load capacity. The open design simplifies lubrication, ensuring smooth operation over time.

In robotics, MR106 Bearing fits perfectly in lightweight joints and miniature gearboxes, where precision and low friction are key. Its chrome steel construction offers durability even in continuous motion applications.

For consumer electronics like printers or handheld devices, MR106 Bearing provides quiet performance due to its balanced design. The ABEC1 tolerance ensures consistent quality for everyday use.

Medical devices, such as dental tools or lab equipment, benefit from MR106 Bearing’s stainless steel cage, which resists corrosion in sterile environments. Its small footprint makes it ideal for space-constrained designs.

Automotive accessories like dashboard mechanisms or small actuators often rely on MR106 Bearing for its heat resistance and steady performance. The metric sizing ensures compatibility with global vehicle standards.
