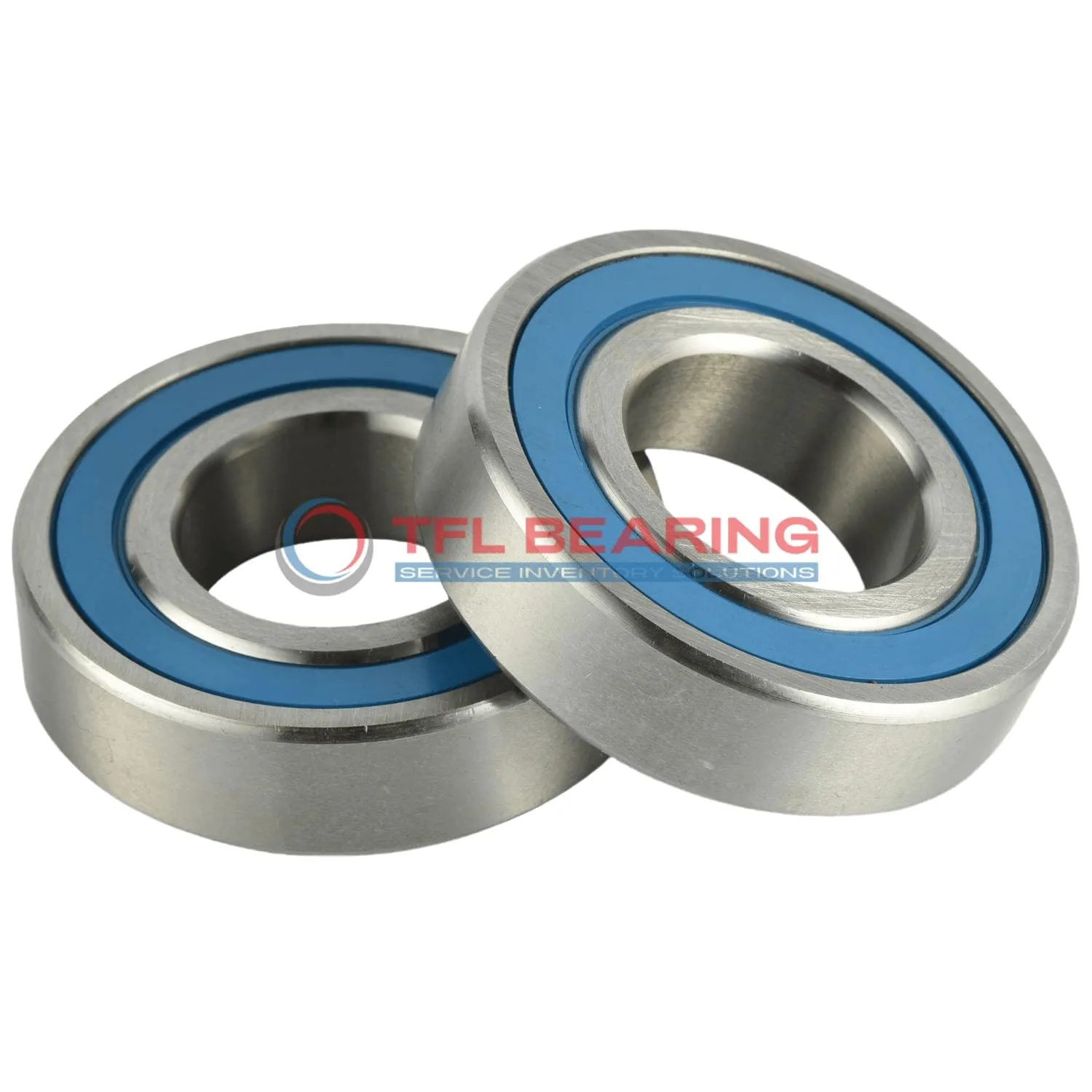

Single Row Deep Groove Ball Bearings 6206-RS1

Single Row Deep Groove Ball Bearings 6206-RS1

The 6206-RS1 is a single-row deep groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4564 lbf and operates smoothly at speeds reaching 7500 RPM.

Its sealed design keeps dirt out and lubrication in, reducing maintenance needs. The stainless steel cage adds durability, making it a reliable choice for long-term use.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering flexibility for replacements.

Weighing just 0.2kg, it’s a lightweight yet robust option for applications like electric motors or small machinery. Compliant with RoHS and REACH standards, it’s safe for widespread use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6206-RS1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 4564 lbf
  • Static Radial Load 2518 lbf
  • Max Speed 7500 rpm
  • Weight 0.2 kg
  • price（$） 3.6
Single Row Deep Groove Ball Bearings 6206-RS1 dimension drawing
Download DWG Download PDF

Features

Why Choose 6206-RS1 Bearing for Precision Tasks?

6206-RS1 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 4564 lbf, it handles demanding tasks with ease.
The P6 tolerance class guarantees high precision, making it suitable for accurate machinery.

Operating within -30° to 120°C, 6206-RS1 Bearing performs reliably in varied temperatures.
Its stainless steel cage maintains ball alignment, reducing friction and extending lifespan.

Designed for speeds up to 7,500 rpm, it balances efficiency and smooth operation.
The compact 30 mm×62 mm×16 mm size makes it ideal for space-constrained applications.

Application

Common Applications of 6206-RS1 Bearing
In industrial settings, 6206-RS1 Bearing is widely used in electric motors and pumps due to its sealed design, which protects against dust and debris. The chrome steel construction ensures long-lasting performance even in demanding conditions.

What Makes 6206-RS1 Bearing a Preferred Choice?
For automotive applications like wheel hubs and alternators, 6206-RS1 Bearing offers reliable radial load support. Its metric sizing and P6 tolerance make it a versatile fit for various vehicle models.

Ideal for Precision: 6206-RS1 Bearing
In medical devices such as dental drills, 6206-RS1 Bearing provides smooth and quiet operation. The stainless steel cage enhances durability, making it suitable for high-precision instruments.

Automotive vs Industrial: Where 6206-RS1 Bearing Excels
While 6206-RS1 Bearing performs well in car transmissions, it also shines in conveyor systems where consistent radial load handling is needed. Its temperature range allows for use in diverse environments.

Practical Uses of 6206-RS1 Bearing
In household appliances like washing machines, 6206-RS1 Bearing ensures quiet and efficient operation. The sealed design helps maintain performance even with frequent use.
