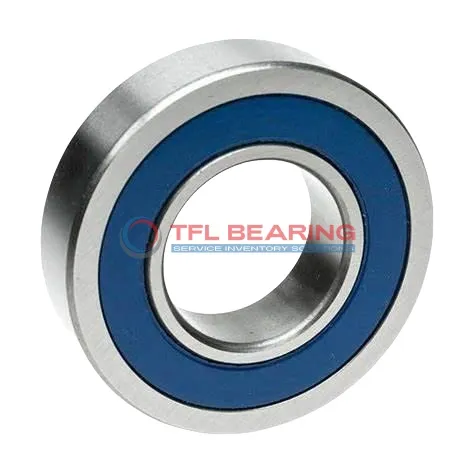

Single Row Deep Groove Ball Bearings 6206-2RS1/C3GWP

Single Row Deep Groove Ball Bearings 6206-2RS1/C3GWP

The 6206-2RS1/C3GWP is a sealed single row deep groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 4384 lbf and operates smoothly at speeds up to 11000 RPM.

Its sealed design keeps out dirt and moisture, extending its lifespan, while the C3 radial clearance ensures reliable performance under varying temperatures. The bearing works well in environments ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads and contamination resistance are key.

Weighing just 199g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6206-2RS1/C3GWP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4384 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 199 g
Single Row Deep Groove Ball Bearings 6206-2RS1/C3GWP dimension drawing
Download DWG Download PDF

Features

How Does 6206-2RS1/C3GWP Bearing Reduce Friction?

6206-2RS1/C3GWP Bearing features a sealed design, preventing contaminants and reducing friction for smoother operation.
Its chrome steel construction ensures durability and reliable performance under radial loads up to 4384 lbf.
The C3 radial clearance allows for thermal expansion, maintaining efficiency in varying temperatures.
With a maximum speed of 11,000 rpm, it offers a balance of speed and longevity.

Application

Common Applications of 6206-2RS1/C3GWP Bearing
In industrial settings, 6206-2RS1/C3GWP Bearing is widely used in electric motors and pumps, thanks to its sealed design which keeps contaminants out. The C3 clearance ensures reliable performance even under varying thermal conditions.

Where Is 6206-2RS1/C3GWP Bearing Used?
You’ll often find 6206-2RS1/C3GWP Bearing in automotive applications like alternators and water pumps, where its radial load capacity and sealed construction are ideal. The chrome steel materials provide long-lasting durability in these demanding environments.

Ideal for Precision: 6206-2RS1/C3GWP Bearing
For medical devices such as dental drills, 6206-2RS1/C3GWP Bearing offers smooth operation and low noise. Its sealed design helps maintain hygiene by preventing dust and fluid ingress.

Automotive vs Industrial: Applications of 6206-2RS1/C3GWP Bearing
In cars, 6206-2RS1/C3GWP Bearing handles radial loads in components like fans and pulleys, while in factories, it supports conveyor rollers. The metric sizing makes it versatile for different machinery.

Perfect Fit for Automation: 6206-2RS1/C3GWP Bearing
Robotic arms and packaging machines benefit from 6206-2RS1/C3GWP Bearing’s reliable performance and sealed protection. The ABEC 1 tolerance ensures consistent operation in automated systems.
