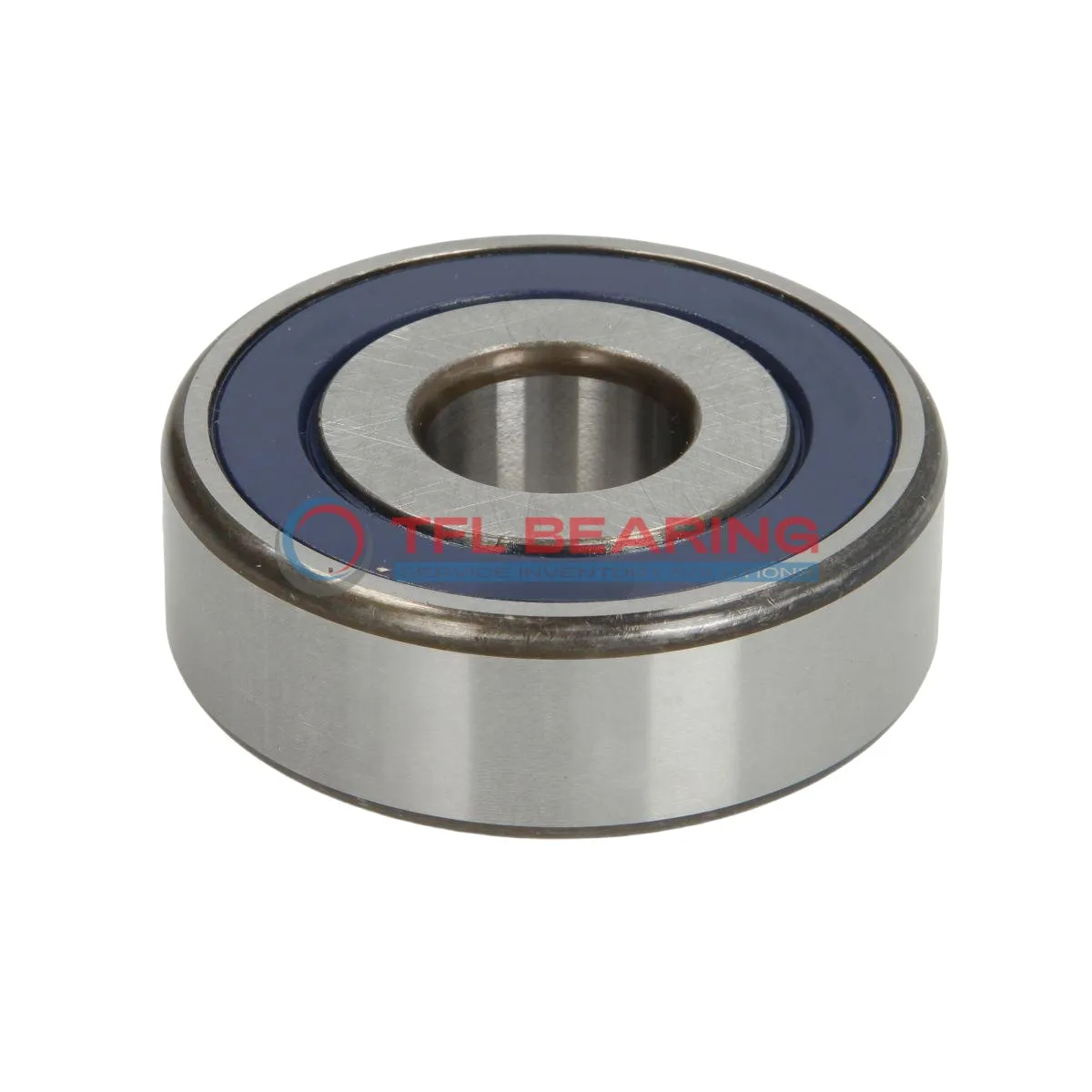

Single Row Deep Groove Ball Bearings 6305-2RS1/LHT23

Single Row Deep Groove Ball Bearings 6305-2RS1/LHT23

The 6305-2RS1/LHT23 is a single-row deep groove ball bearing with a 25mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 4631 lbf and spins smoothly at speeds up to 11000 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The chrome steel cage adds strength and longevity, even in temperatures from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a reliable replacement option. It’s well-suited for electric motors, pumps, or small machinery where consistent radial load support is needed.

Weighing 232g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6305-2RS1/LHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4631 lbf
  • Static Radial Load 254 lbf
  • Max Speed 11000 rpm
  • Weight 232 g
  • price（$） 5.022
Single Row Deep Groove Ball Bearings 6305-2RS1/LHT23 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6305-2RS1/LHT23 Bearing

6305-2RS1/LHT23 Bearing is designed for radial loads, with a dynamic radial load capacity of 4631 lbf.
Its sealed construction protects against contaminants, ensuring smooth operation in various environments.

The chrome steel rings and balls enhance durability, while the chrome steel cage maintains alignment.
With a maximum speed of 11,000 rpm, it offers reliable performance for high-speed applications.

6305-2RS1/LHT23 Bearing operates in temperatures from -30°C to 120°C, suitable for diverse conditions.
Its compact size (25 mm×62 mm×17 mm) makes it ideal for space-constrained installations.

The sealed design reduces maintenance needs, providing long-lasting service.
Compliant with RoHS and REACH standards, it meets environmental and safety requirements.

Application

Common Applications of 6305-2RS1/LHT23 Bearing
In industrial settings, 6305-2RS1/LHT23 Bearing is commonly used in electric motors and pumps, where its sealed design protects against dust and moisture. The chrome steel construction ensures durability in demanding environments.

Where Is 6305-2RS1/LHT23 Bearing Used?
You’ll often find 6305-2RS1/LHT23 Bearing in automotive applications like alternators and water pumps, thanks to its reliable radial load handling. Its ABEC 1 tolerance makes it suitable for general machinery where precision isn’t overly critical.

Ideal for Precision: 6305-2RS1/LHT23 Bearing
For household appliances like washing machines, 6305-2RS1/LHT23 Bearing offers smooth operation and long service life. The sealed design helps maintain performance even in damp conditions.

Automotive vs Industrial: Applications of 6305-2RS1/LHT23 Bearing
In automotive systems, 6305-2RS1/LHT23 Bearing supports components like fans and pulleys, while in industrial gearboxes, it handles moderate radial loads. Its temperature range of -30° to 120°C ensures versatility across different environments.

Practical Applications of 6305-2RS1/LHT23 Bearing
6305-2RS1/LHT23 Bearing works well in conveyor systems, where its sealed construction reduces maintenance needs. The metric sizing makes it easy to replace in a variety of European and Asian equipment.
