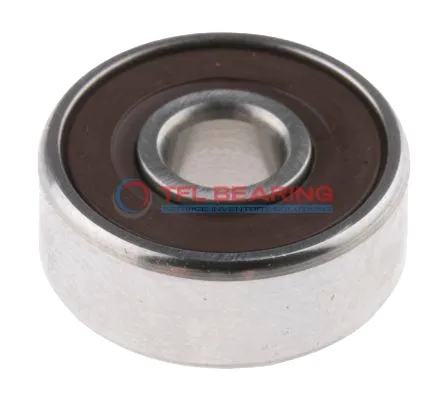

Single Row Deep Groove Ball Bearings 6205-2RSH/VL256W64F

The 6205-2RSH/VL256W64F is a single-row deep groove ball bearing with a 25mm bore and 52mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 3147 lbf and operates smoothly at speeds up to 13,000 RPM.

Sealed on both sides, it keeps dirt out and solid oil lubrication in, reducing maintenance needs. The chrome steel cage adds strength, ensuring reliable performance in tough conditions.

With a compact width of 15mm, it fits neatly into tight spaces. Its temperature range of -30°C to 120°C makes it suitable for various environments.

Ideal for electric motors, pumps, or small machinery, this bearing is interchangeable with SKF models. Compliant with RoHS and REACH standards, it’s a safe and practical choice.

Weighing just 128g, it’s lightweight yet robust for everyday industrial use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6205-2RSH/VL256W64F
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Bore Dia 25 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 52 mm
Outer Dia Tolerance -0.013mm to 0
Width 15 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
Lubrication Soild Oil
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 3147 lbf
Static Radial Load 1765 lbf
Max Speed 13000 rpm
Weight 128 g

Single Row Deep Groove Ball Bearings 6205-2RSH/VL256W64F dimension drawing

Download DWG Download PDF

Features

How Does 6205-2RSH/VL256W64F Bearing Reduce Friction?

6205-2RSH/VL256W64F Bearing features a single-row deep groove design, optimised for smooth radial load handling.
Its sealed construction and solid oil lubrication minimise friction, ensuring quiet operation.

The chrome steel rings and balls enhance durability, while the cage maintains alignment under stress.
With a maximum speed of 13,000 rpm, it delivers reliable performance in various conditions.

Its temperature range of -30°C to 120°C makes it suitable for diverse environments.
The ABEC 1 tolerance ensures consistent precision without excessive maintenance.

Application

Industrial Uses of 6205-2RSH/VL256W64F Bearing
This bearing is commonly used in conveyor systems and electric motors, where its sealed design helps keep dust and debris out. The solid oil lubrication ensures smooth operation even in demanding industrial environments.

What Makes 6205-2RSH/VL256W64F Bearing a Preferred Choice?
In automotive applications like alternators and water pumps, this bearing offers reliable performance with its chrome steel construction. Its ABEC 1 tolerance makes it suitable for general machinery where precision is needed but not critical.

Perfect Fit for Automation: 6205-2RSH/VL256W64F Bearing
You’ll often find this bearing in robotic arms and small automation equipment, thanks to its compact size and sealed protection. The wide temperature range allows it to work in various conditions without losing efficiency.

Medical vs Industrial: Where 6205-2RSH/VL256W64F Bearing Excels
While it’s robust enough for industrial gearboxes, this bearing also fits well in medical devices like small lab equipment. The sealed design prevents contamination, which is crucial in sensitive environments.

How Does 6205-2RSH/VL256W64F Bearing Support High-Speed Operations?
With a max speed of 13,000 rpm, this bearing works well in fans and small power tools. The solid oil lubrication reduces friction, helping maintain performance over time.
