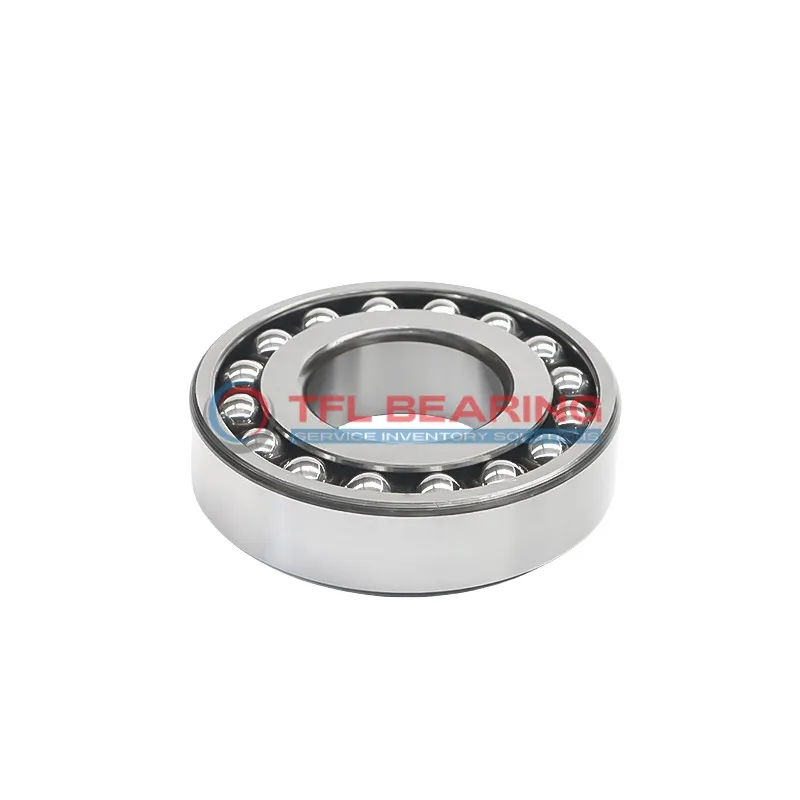

Self Aligning Ball Bearings 1317

Self Aligning Ball Bearings 1317

The 1317 is a self-aligning ball bearing with an 85mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 21938 lbf and runs smoothly at speeds up to 4800 RPM.

Its double-row design helps it handle misalignment, while the open seal allows for easy lubrication. The stainless steel cage adds durability, making it a reliable choice for heavy-duty use.

This bearing works well in temperatures from -30°C to 110°C and is interchangeable with SKF models. Ideal for applications like conveyor systems or industrial fans where alignment might shift.

Weighing 5kg, it’s built to last while maintaining steady performance. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1317
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 41 mm
  • Width Tolerance -0.2mm to 0
  • External Diameter On Inner Ring 117.6 mm
  • Internal Diameter On Outer Ring 152.8 mm
  • Chamfer Dimension 3 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 21938 lbf
  • Static Radial Load 8550 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 5 kg
  • Price（$） 183.14
Self Aligning Ball Bearings 1317 dimension drawing
Download DWG Download PDF

Features

How Does 1317 Bearing Reduce Friction?

1317 Bearing features a double-row design with chrome steel balls, ensuring smooth radial load distribution.
Its precision-engineered raceway minimises friction, enhancing operational efficiency.

The stainless steel cage maintains ball alignment, reducing wear and prolonging service life.
With a dynamic radial load capacity of 21938 lbf, it handles demanding applications reliably.

1317 Bearing operates smoothly at speeds up to 4,800 rpm, balancing performance and durability.
Its open design allows for easy lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 1317 Bearing
1317 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design helps manage misalignment and radial loads. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 1317 Bearing fits well in gearboxes and wheel hubs, providing reliable performance under varying loads. Its metric sizing makes it a versatile choice for both European and Asian vehicle models.

For automation equipment, 1317 Bearing’s self-aligning feature is ideal for robotic arms and assembly lines, where precision and flexibility are key. The stainless steel cage adds extra resistance to wear.

Medical imaging devices also benefit from 1317 Bearing’s smooth operation and consistent performance. Its open design allows for easy maintenance, crucial in high-accuracy medical settings.
