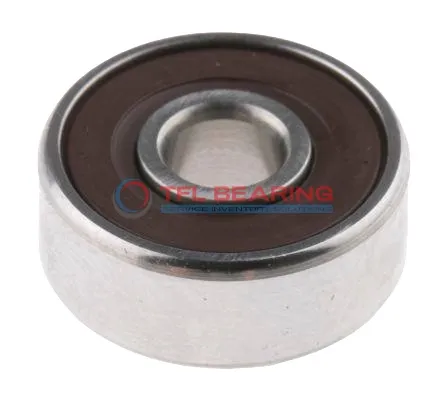

Single Row Deep Groove Ball Bearings 6205-2RSH/C4

The 6205-2RSH/C4 is a single-row deep groove ball bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 3147 lbf and spins smoothly at speeds up to 13,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance for long-term use. The C4 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative. Ideal for electric motors, pumps, or small machinery where consistent radial load support is needed.

Weighing just 128g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6205-2RSH/C4
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C4
Bore Dia 25 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 52 mm
Outer Dia Tolerance -0.013mm to 0
Width 15 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 3147 lbf
Static Radial Load 1765 lbf
Max Speed 13000 rpm
Weight 128 g
price（$） 3.789

Single Row Deep Groove Ball Bearings 6205-2RSH/C4 dimension drawing

Download DWG Download PDF

Features

How Does 6205-2RSH/C4 Bearing Reduce Friction?

6205-2RSH/C4 Bearing features a sealed design, preventing contaminants and reducing friction for smoother operation.
Its chrome steel construction ensures durability and reliable performance under radial loads.

The C4 radial clearance allows for better thermal expansion handling, maintaining efficiency.
With a maximum speed of 13,000 rpm, it offers a balance of speed and longevity.

The sealed design also minimises maintenance needs, making it cost-effective.
Its temperature range of -30° to 120°C ensures adaptability in various environments.

Application

Common Applications of 6205-2RSH/C4 Bearing
In industrial settings, 6205-2RSH/C4 Bearing is widely used in electric motors and pumps, thanks to its sealed design that keeps contaminants out. The C4 radial clearance ensures smooth operation even under varying thermal conditions.

Where Is 6205-2RSH/C4 Bearing Used?
You’ll often find 6205-2RSH/C4 Bearing in automotive applications like alternators and water pumps, where its reliability and sealed construction are key. The chrome steel build also handles radial loads effortlessly.

Built for Heavy-Duty Use: 6205-2RSH/C4 Bearing
For automation equipment, 6205-2RSH/C4 Bearing is a solid pick, especially in conveyor systems and robotic arms. Its high-speed capability and durability make it a dependable choice for continuous operation.

Light-Duty vs Heavy-Duty: Best Uses for 6205-2RSH/C4 Bearing
In household appliances like washing machines, 6205-2RSH/C4 Bearing offers quiet and efficient performance. For heavier tasks, it’s equally at home in industrial gearboxes and machinery.
