Single Row Deep Groove Ball Bearings 6204-2RSH/W64F

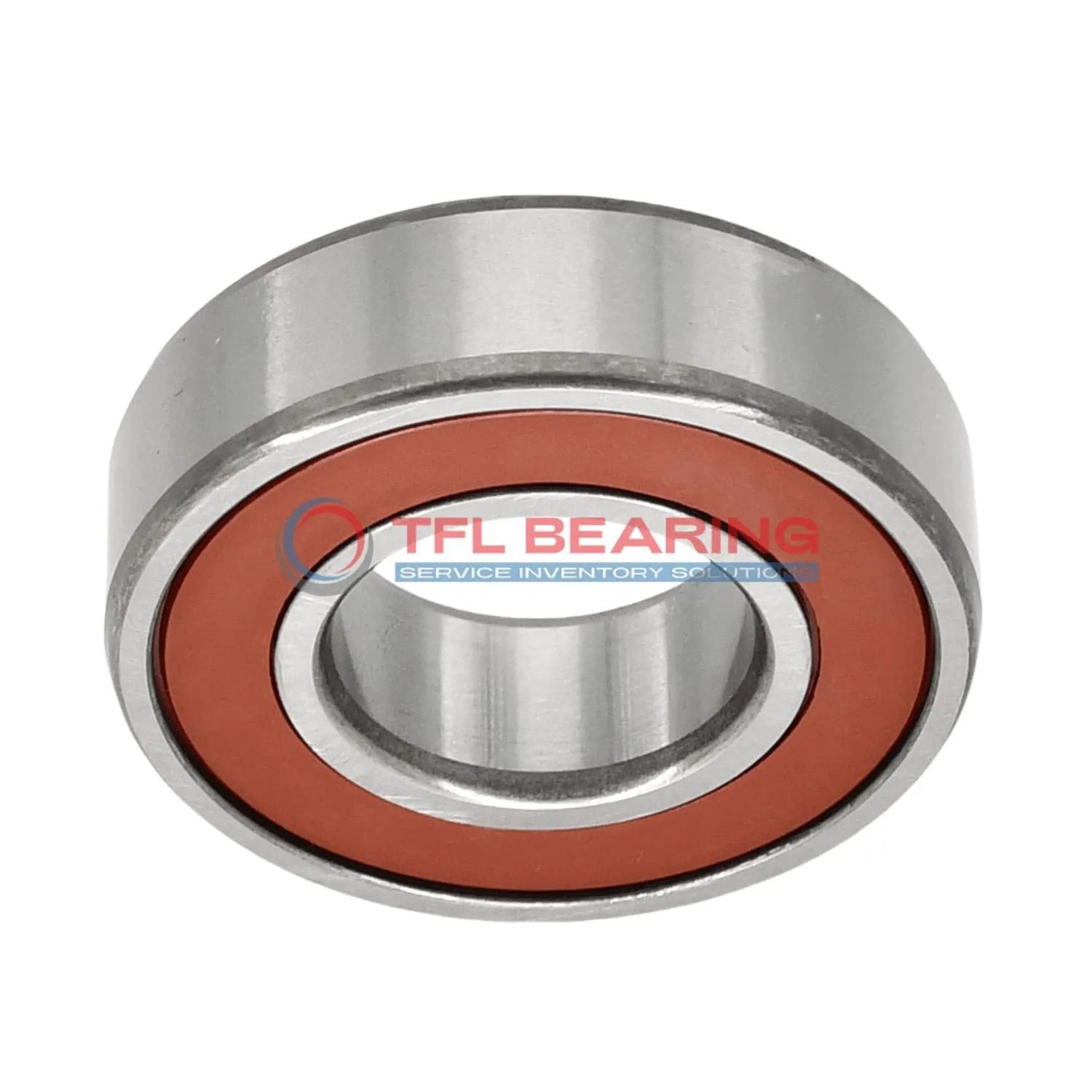

Single Row Deep Groove Ball Bearings 6204-2RSH/W64F

The 6204-2RSH/W64F is a single-row deep groove ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2878 lbf and spins smoothly at speeds up to 15,000 RPM.

Its sealed design keeps dirt out and the solid oil lubrication ensures long-lasting performance with minimal maintenance. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where reliable radial load support is needed.

Weighing just 106g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6204-2RSH/W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 14 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2878 lbf
  • Static Radial Load 1495 lbf
  • Max Speed 15000 rpm
  • Weight 106 g
  • price（$） 5.859
Single Row Deep Groove Ball Bearings 6204-2RSH/W64F dimension drawing
Download DWG Download PDF

Features

Performance Features of 6204-2RSH/W64F Bearing

6204-2RSH/W64F Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 2878 lbf, ensuring reliable performance in various applications.

The sealed design and solid oil lubrication reduce maintenance needs while protecting against contaminants.
With a maximum speed of 15,000 rpm, it delivers smooth and efficient operation.

6204-2RSH/W64F Bearing operates in temperatures from -30°C to 120°C, suitable for diverse environments.
Its durable construction and precise tolerances ensure long-lasting performance.

Application

Common Applications of 6204-2RSH/W64F Bearing
In industrial machinery, 6204-2RSH/W64F Bearing is widely used in electric motors and pumps due to its sealed design, which protects against dust and debris. The solid oil lubrication ensures smooth operation even in demanding environments.

Where Is 6204-2RSH/W64F Bearing Used?
You’ll often find 6204-2RSH/W64F Bearing in automotive applications like alternators and water pumps, where its radial load capacity and durability are key. Its metric sizing makes it a versatile choice for various vehicle models.

Ideal for Precision: 6204-2RSH/W64F Bearing
For medical devices such as dental drills, 6204-2RSH/W64F Bearing offers reliable performance with minimal maintenance. The chrome steel construction ensures long-lasting use in high-precision equipment.

Automotive vs Industrial: Applications of 6204-2RSH/W64F Bearing
In automotive systems, 6204-2RSH/W64F Bearing handles radial loads in components like fans and clutches. In industrial settings, it’s a go-to for conveyor systems and gearboxes, thanks to its robust design.

Perfect Fit for Automation: 6204-2RSH/W64F Bearing
6204-2RSH/W64F Bearing is a popular choice in robotics and automation, particularly in robotic arms and 3D printers. Its sealed construction and solid oil lubrication reduce downtime and maintenance needs.
