Single Row Deep Groove Ball Bearings 6203/W64

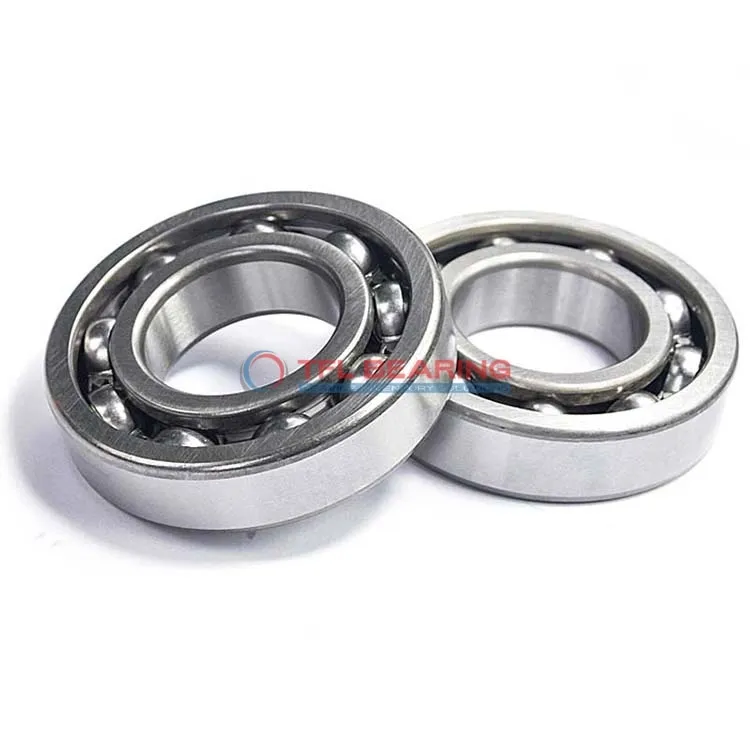

Single Row Deep Groove Ball Bearings 6203/W64

The 6203/W64 is a single-row deep groove ball bearing with a 17mm bore and 40mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2147 lbf and spins efficiently at speeds up to 17,000 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage enhances durability. The bearing operates smoothly in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Perfect for applications like electric motors or pumps where radial loads are common.

Weighing just 65g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6203/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 40 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2147 lbf
  • Static Radial Load 1079 lbf
  • Max Speed 17000 rpm
  • Weight 65 g
  • price（$） 4.617
Single Row Deep Groove Ball Bearings 6203/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6203/W64 Bearing

6203/W64 Bearing is crafted with chrome steel rings and balls, ensuring durability and resistance to wear.
Its solid oil lubrication reduces friction, promoting smooth operation even at high speeds.
The single row deep groove design efficiently handles radial loads up to 2147 lbf.
With a maximum speed of 17,000 rpm, it is suitable for various industrial applications.

Application

Common Applications of 6203/W64 Bearing
6203/W64 Bearing is widely used in industrial equipment like conveyor belts and electric motors, where its radial load capacity ensures smooth operation. The solid oil lubrication reduces maintenance needs, making it ideal for continuous-use environments.

In automotive applications, 6203/W64 Bearing fits well in components such as alternators and water pumps, thanks to its durable chrome steel construction. Its ABEC 1 tolerance class provides reliable performance for everyday driving conditions.

For home appliances, 6203/W64 Bearing works efficiently in fans and washing machines, offering quiet operation and long service life. The open design allows for easy inspection and cleaning, which is handy for household maintenance.

Automation systems benefit from 6203/W64 Bearing in robotic arms and small machinery, where precision and speed are key. The lightweight design (65g) also helps in reducing overall system load.

Medical devices like lab centrifuges often use 6203/W64 Bearing due to its consistent performance and compliance with RoHS standards. The temperature range (-30° to 120°C) ensures reliability in various clinical settings.
