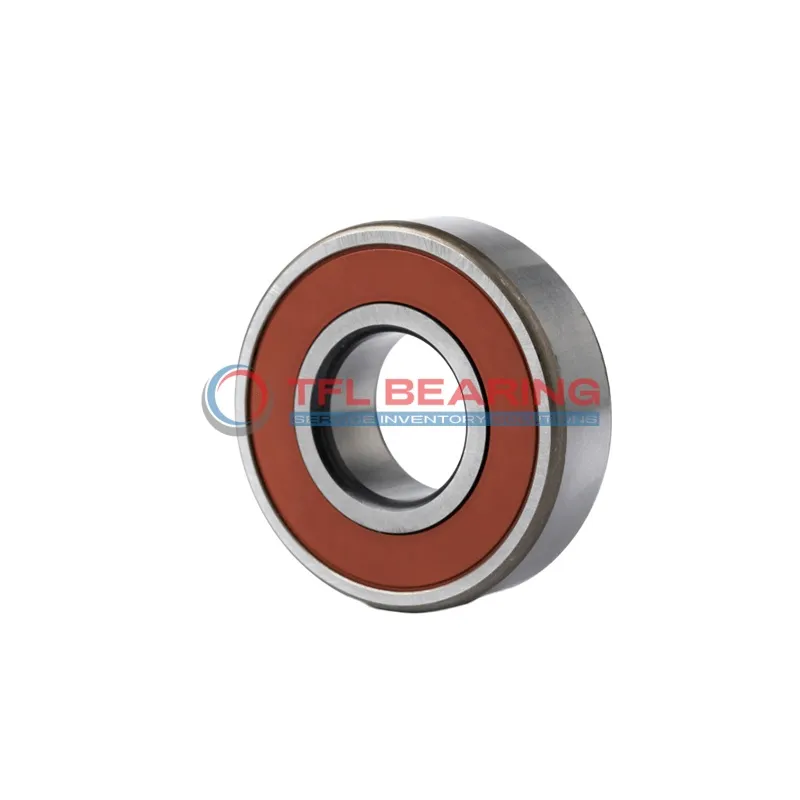

Single Row Deep Groove Ball Bearings 6203-2RSH/VA947

Single Row Deep Groove Ball Bearings 6203-2RSH/VA947

The 6203-2RSH/VA947 is a compact single-row deep groove ball bearing, measuring 17mm by 40mm by 12mm. Made from chrome steel with stainless steel cage, it’s built to handle radial loads up to 2237 lbf and speeds up to 12000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance for long-term use. The bearing operates smoothly in temperatures from -30°C to 120°C, suitable for various environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. It’s ideal for electric motors, pumps, or small machinery where space is limited but performance is key.

Weighing just 0.067kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a safe choice for industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6203-2RSH/VA947
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 40 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 12 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 2237 lbf
  • Static Radial Load 1068 lbf
  • Max Speed 12000 rpm
  • Weight 0.067 kg
Single Row Deep Groove Ball Bearings 6203-2RSH/VA947 dimension drawing
Download DWG Download PDF

Features

Why Choose 6203-2RSH/VA947 Bearing for Precision Tasks?

6203-2RSH/VA947 Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability, while the stainless steel cage maintains ball alignment.

With a dynamic radial load capacity of 2237 lbf, it handles demanding radial loads with ease.
The bearing operates smoothly at speeds up to 12,000 rpm, making it suitable for high-speed applications.

Its P6 tolerance class provides precise operation, ideal for tasks requiring accuracy.
The grease lubrication reduces maintenance needs, ensuring long-term reliability.

Application

Common Applications of 6203-2RSH/VA947 Bearing
In industrial settings, 6203-2RSH/VA947 Bearing is a go-to for electric motors and pumps, thanks to its sealed design that keeps contaminants out. The chrome steel construction ensures it handles radial loads with ease.

Where Is 6203-2RSH/VA947 Bearing Used?
You’ll often spot 6203-2RSH/VA947 Bearing in household appliances like washing machines, where its quiet operation and durability shine. The grease lubrication helps it run smoothly for years.

Built for Heavy-Duty Use: 6203-2RSH/VA947 Bearing
This bearing works well in conveyor systems, handling consistent radial loads without fuss. Its stainless steel cage adds extra resilience in dusty or humid environments.

Automotive vs Industrial: Applications of 6203-2RSH/VA947 Bearing
In cars, 6203-2RSH/VA947 Bearing supports alternators and fans, while in factories, it’s trusted for machinery requiring reliable, low-maintenance performance. The temperature range suits both uses.
