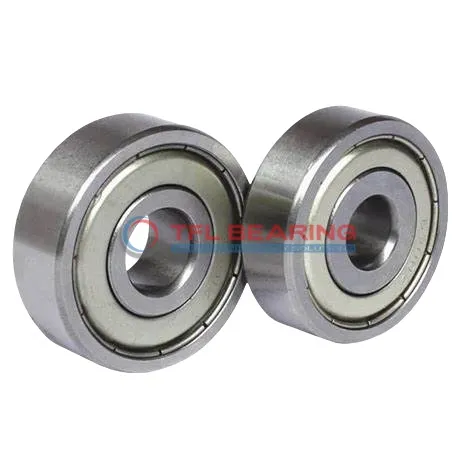

Single Row Deep Groove Ball Bearings 6202-ZTN9

Single Row Deep Groove Ball Bearings 6202-ZTN9

The 6202-ZTN9 is a compact single row deep groove ball bearing, measuring 15mm by 35mm by 11mm. Made from chrome steel, it handles radial loads up to 1812 lbf and spins smoothly at speeds up to 20,000 RPM.

Its shielded design keeps dust out while the nylon cage reduces friction for quieter operation. The bearing performs well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s ideal for small motors, fans, or appliances where reliable radial load support is needed.

Weighing just 45g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6202-ZTN9
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 11 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 843 lbf
  • Max Speed 20000 rpm
  • Weight 45 g
  • price（$） 2.061
Single Row Deep Groove Ball Bearings 6202-ZTN9 dimension drawing
Download DWG Download PDF

Features

Why Choose 6202-ZTN9 Bearing for Precision Tasks?

6202-ZTN9 Bearing features a shielded design, protecting against dust and debris while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 1812 lbf, it handles demanding tasks efficiently.
The nylon cage reduces friction, contributing to quieter performance and extended service life.

Operating within a temperature range of -30°C to 120°C, it adapts to various environments.
Its ABEC 1 tolerance class provides reliable precision for everyday applications.

Application

Common Applications of 6202-ZTN9 Bearing
6202-ZTN9 Bearing is widely used in industrial equipment like conveyor belts and small electric motors, where its shielded design helps keep out dust and debris. The nylon cage reduces friction, making it suitable for continuous operation.

In automotive applications, 6202-ZTN9 Bearing fits well in components such as alternators and water pumps, providing reliable radial load support. Its metric sizing ensures compatibility with various vehicle models.

For consumer electronics, 6202-ZTN9 Bearing works efficiently in devices like cooling fans and printers, thanks to its smooth operation and low noise levels. The chrome steel construction ensures durability even with frequent use.

Automation systems benefit from 6202-ZTN9 Bearing in robotic arms and small actuators, where precision and reliability are key. The ABEC 1 tolerance class offers consistent performance for light to moderate loads.

Medical devices like small lab equipment often use 6202-ZTN9 Bearing for its stable performance and resistance to wear. The temperature range of -30°C to 120°C makes it versatile for different environments.
