Metric Single Direction Thrust Ball Bearing 51417 M

Metric Single Direction Thrust Ball Bearing 51417 M

The 51417 M is a sturdy single-direction thrust ball bearing with an 85mm bore and 180mm outer diameter, crafted from durable 52100 chrome steel. It manages heavy thrust loads up to 64350 lbf and operates smoothly at speeds up to 1600 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for heavy machinery or industrial equipment where high thrust loads are common.

Weighing 9.45kg, it’s built to last and complies with RoHS and REACH standards for safe usage. The 2.1mm chamfer ensures easy installation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 51417 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Outer Dia Shaft Washer 177 mm
  • Width 72 mm
  • Width Tolerance +0.025mm to -0.3mm
  • Inner Dia Housing Washer 88 mm
  • Chamfer Dimension 2.1 mm
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Thrust Load 64350 lbf
  • Static Thrust Load 168750 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 1600 rpm
  • Weight 9.45 kg

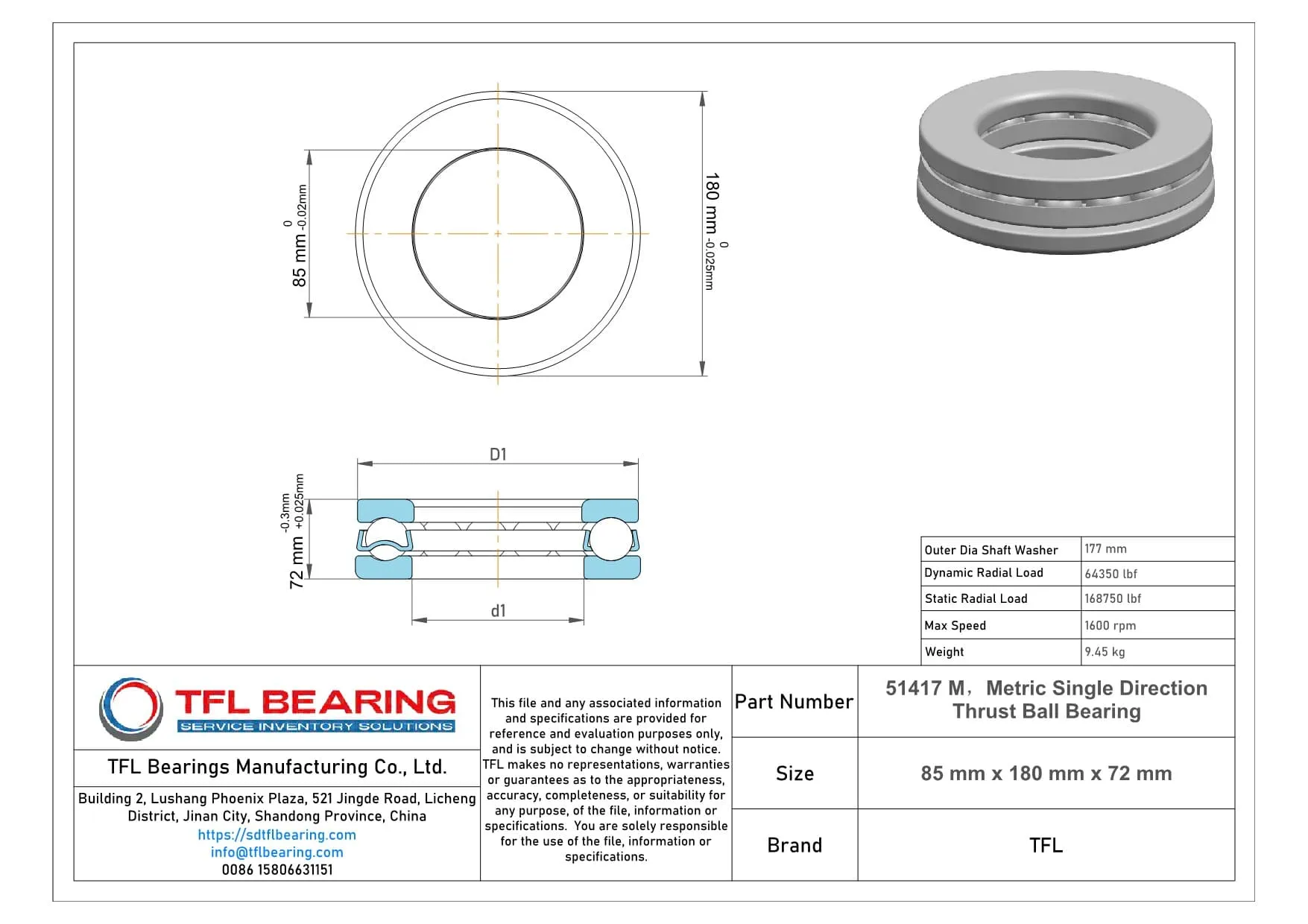

Metric Single Direction Thrust Ball Bearing 51417 M dimension drawing
Download DWG Download PDF

Features

Why Choose 51417 M Bearing for Precision Tasks?

51417 M Bearing is crafted with 52100 chrome steel rings and balls, ensuring high precision and durability.
Its dynamic thrust load capacity of 64350 lbf makes it suitable for heavy-duty applications.

The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 1,600 rpm, it offers reliable performance in various conditions.

51417 M Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open seal design allows for easy lubrication and maintenance.

Application

Industrial Uses of 51417 M Bearing
51417 M Bearing is commonly used in heavy machinery, such as hydraulic presses and large conveyor systems, where its high thrust load capacity is essential. The open seal design simplifies lubrication, making it suitable for demanding industrial environments.

In automotive applications, 51417 M Bearing handles axial loads in components like heavy-duty gearboxes and drivetrains. Its chrome steel construction ensures durability, even under continuous stress.

For wind turbines, 51417 M Bearing supports the main shaft, where its large size and robust design cope with significant axial forces. The stainless steel cage adds extra resistance to wear in harsh weather conditions.

Automation systems benefit from 51417 M Bearing in robotic arms and assembly line equipment, where precision and reliability are key. The metric sizing ensures compatibility with a variety of European machinery standards.

In construction equipment, 51417 M Bearing is found in cranes and excavators, where its static thrust load capacity provides stability. The wide temperature range allows it to perform reliably in varying climates.
