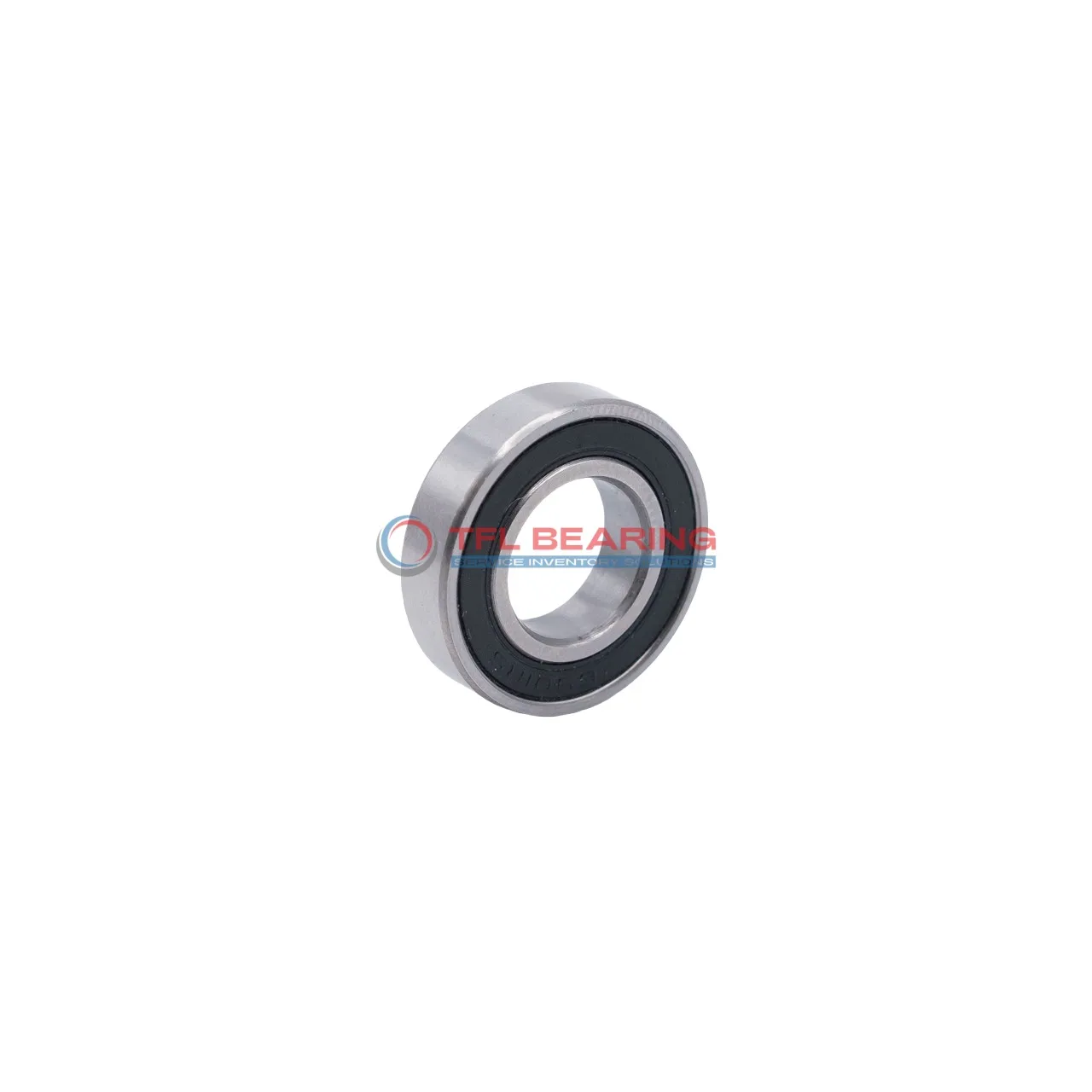

Single Row Deep Groove Ball Bearings 6202-2RSL

Single Row Deep Groove Ball Bearings 6202-2RSL

The 6202-2RSL is a compact single-row deep groove ball bearing, measuring 15mm by 35mm by 11mm, crafted from durable chrome steel. It handles radial loads up to 1812 lbf and spins smoothly at speeds up to 22,000 RPM.

Its sealed design keeps grease in and dirt out, reducing maintenance needs. The stainless steel cage adds strength and longevity, making it reliable for continuous use.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models, offering a cost-effective replacement option.

Ideal for small motors, pumps, or appliances where space is limited but performance is key. Weighing just 0.046kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6202-2RSL
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.007mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 11 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Grease
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 843 lbf
  • Max Speed 22000 rpm
  • Weight 0.046 kg
  • price（$） 1.71
Single Row Deep Groove Ball Bearings 6202-2RSL dimension drawing
Download DWG Download PDF

Features

Why Choose 6202-2RSL Bearing for Precision Tasks?

6202-2RSL Bearing features sealed construction, protecting against dust and moisture for consistent performance.
Its chrome steel rings and balls ensure durability, even under radial loads up to 1812 lbf.

The stainless steel cage maintains ball alignment, reducing friction and noise during operation.
With a maximum speed of 22,000 rpm, it delivers smooth and efficient performance in various applications.

Grease lubrication enhances longevity, making 6202-2RSL Bearing a reliable choice for precision tasks.
Its compact size (15 mm×35 mm×11 mm) allows easy integration into space-constrained designs.

Application

Common Applications of 6202-2RSL Bearing
In industrial settings, 6202-2RSL Bearing is widely used in electric motors and pumps, where its sealed design keeps contaminants out and extends service life. The chrome steel construction ensures reliable performance even in demanding environments.

Where Is 6202-2RSL Bearing Used?
You’ll often find 6202-2RSL Bearing in automotive applications like alternators and small gearboxes, thanks to its compact size and radial load capacity. The grease lubrication helps maintain smooth operation over long periods.

Ideal for Precision: 6202-2RSL Bearing
For medical devices such as dental drills, 6202-2RSL Bearing offers quiet and precise rotation. Its stainless steel cage adds durability, making it suitable for high-speed, low-noise requirements.

Automotive vs Industrial: Applications of 6202-2RSL Bearing
In cars, 6202-2RSL Bearing handles radial loads in components like fans and small transmissions. In factories, it’s a go-to for conveyor rollers and light machinery due to its balanced performance.

Perfect Fit for Automation: 6202-2RSL Bearing
6202-2RSL Bearing works well in robotic arms and small automation systems, where its sealed design prevents dust ingress. The P6 tolerance ensures consistent accuracy for repetitive tasks.
