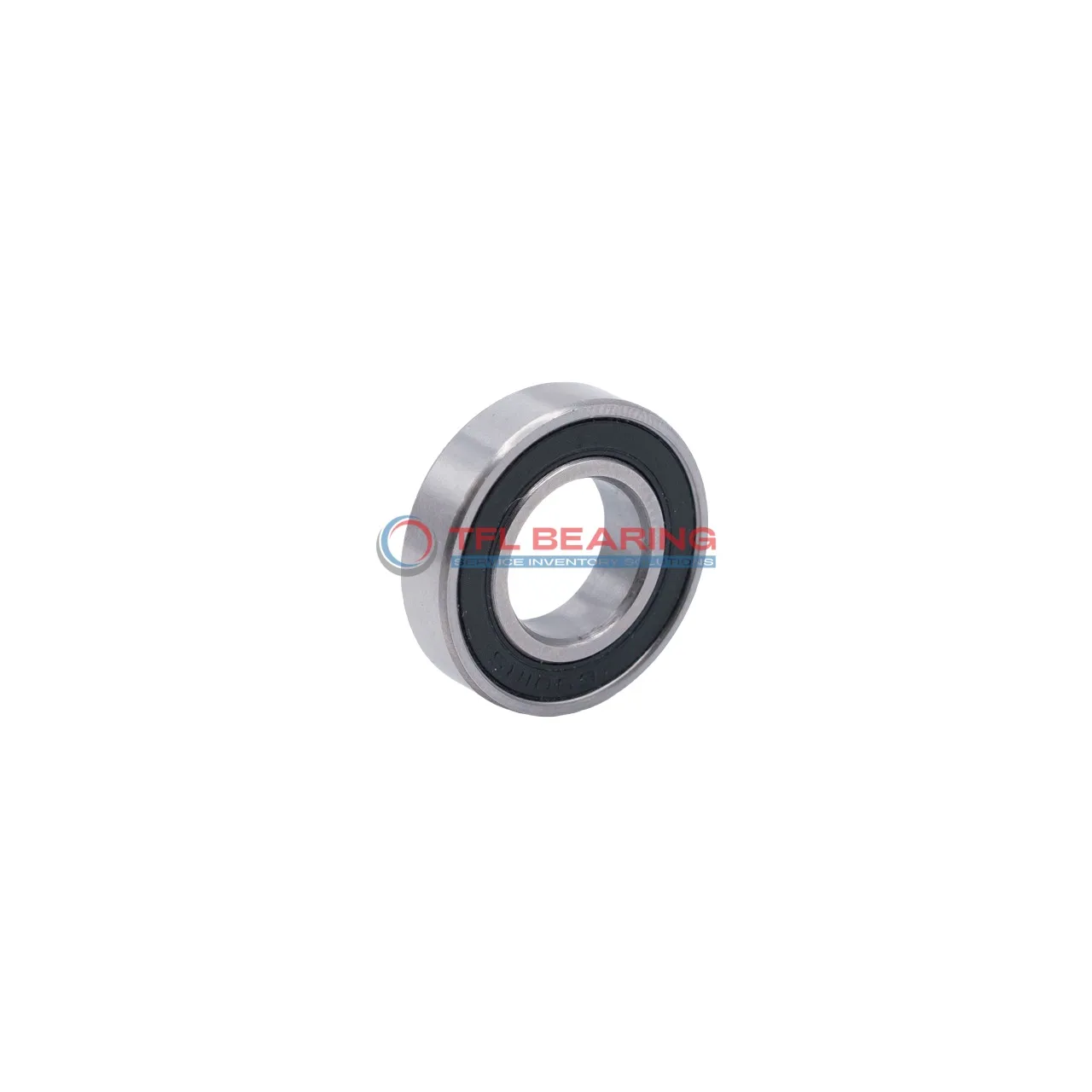

Single Row Deep Groove Ball Bearings 6202-2RSJEM

Single Row Deep Groove Ball Bearings 6202-2RSJEM

The 6202-2RSJEM is a compact single-row deep groove ball bearing, measuring 15mm by 35mm with an 11mm width. Made from durable chrome steel, it’s designed for radial loads and sealed to keep out dust and dirt.

It handles dynamic radial loads up to 1812 lbf and spins smoothly at speeds up to 20,000 RPM. The sealed design ensures long-lasting performance with minimal maintenance, even in dusty environments.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for use in electric motors, pumps, or small machinery where reliability is key.

Weighing just 45g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it operates in temperatures from -30°C to 120°C. A cost-effective solution for everyday industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6202-2RSJEM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 11 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 843 lbf
  • Max Speed 20000 rpm
  • Weight 45 g
  • price（$） 1.71
Single Row Deep Groove Ball Bearings 6202-2RSJEM dimension drawing
Download DWG Download PDF

Features

Why Choose 6202-2RSJEM Bearing for Precision Tasks?

6202-2RSJEM Bearing features a sealed design, protecting against dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.
With a dynamic radial load capacity of 1812 lbf, it handles demanding tasks with ease.
The bearing operates smoothly at speeds up to 20,000 rpm, making it suitable for high-speed applications.

Application

Common Applications of 6202-2RSJEM Bearing
6202-2RSJEM Bearing works well in small electric motors, like those used in household appliances or power tools. Its sealed design keeps dirt out, making it reliable for everyday use.

Industrial Uses of 6202-2RSJEM Bearing
In conveyor systems, 6202-2RSJEM Bearing handles radial loads smoothly, thanks to its deep groove design. The chrome steel construction ensures durability even in dusty factory environments.

Where Is 6202-2RSJEM Bearing Used?
You’ll often find 6202-2RSJEM Bearing in automotive components like alternators or water pumps. Its sealed feature helps it withstand moisture and road debris.

Built for Versatility: 6202-2RSJEM Bearing
From office printers to cooling fans, 6202-2RSJEM Bearing fits neatly into compact devices. The ABEC 1 tolerance provides consistent performance without overcomplicating the design.

Light-Duty vs Heavy-Duty: Best Uses for 6202-2RSJEM Bearing
While 6202-2RSJEM Bearing excels in small machinery, it’s also handy for light industrial gear. Its 20,000 rpm limit suits applications needing moderate speed and reliability.
