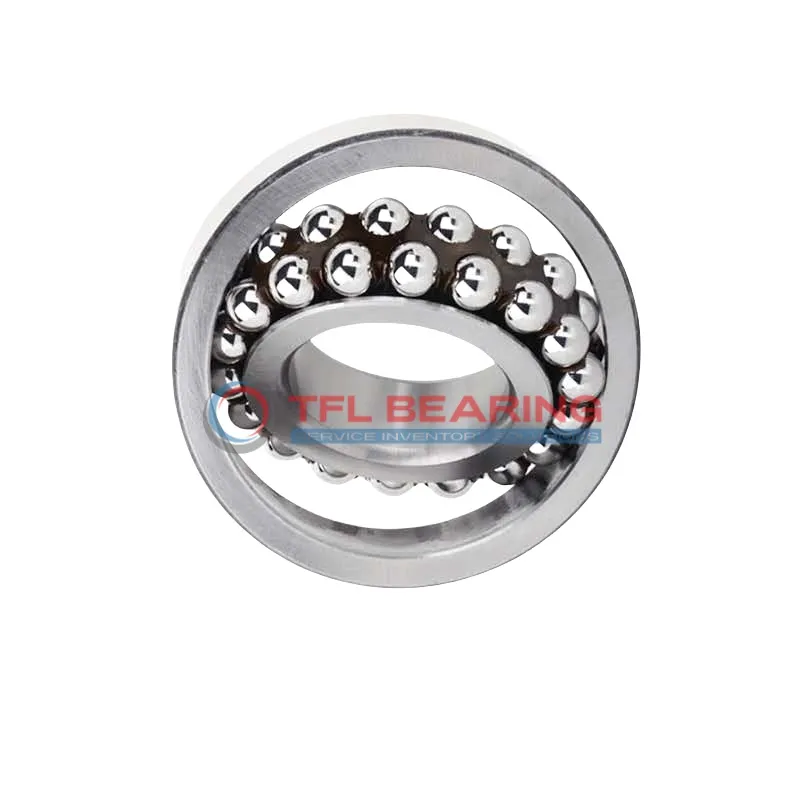

Self Aligning Ball Bearings 2208 C/3

Self Aligning Ball Bearings 2208 C/3

The 2208 C/3 is a self-aligning ball bearing with a 40mm bore and 80mm outer diameter, designed for radial loads. Its compact size (40mm x 80mm x 23mm) makes it suitable for tight spaces, while the double-row construction ensures stability.

Made from chrome steel with a nylon cage, it handles radial loads up to 4478 lbf and operates smoothly at speeds up to 5600 RPM. The sealed design keeps lubrication in and contaminants out.

This bearing can self-align, compensating for minor misalignments in shafts or housings. It works well in temperatures from -30°C to 110°C and comes pre-lubricated for easy installation.

Ideal for applications like conveyor systems or agricultural machinery where misalignment might occur. Weighing 0.5kg, it’s a sturdy yet manageable choice. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2208 C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 49 mm
  • Internal Diameter On Outer Ring 69.8 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 4478 lbf
  • Static Radial Load 1564 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 0.5 kg
  • Price（$） 31.3
Self Aligning Ball Bearings 2208 C/3 dimension drawing
Download DWG Download PDF

Features

How Is 2208 C/3 Bearing Engineered for Reliability?

2208 C/3 Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load reaches 4478 lbf, making it suitable for demanding applications.
The nylon cage keeps the balls aligned, reducing friction and extending service life.
With a maximum speed of 5,600 rpm, it offers a balance of durability and efficiency.

What Makes 2208 C/3 Bearing Suitable for High-Temperature Applications?

2208 C/3 Bearing operates reliably in temperatures ranging from -30° to 110 °C.
Its chrome steel construction resists wear and maintains performance under thermal stress.
The sealed design protects against contaminants, ensuring smooth operation in harsh conditions.
Pre-lubricated for reduced maintenance, it delivers consistent performance over time.

Designed for Durability: 2208 C/3 Bearing

2208 C/3 Bearing’s double-row construction enhances load distribution, reducing stress on individual balls.
The chrome steel components resist wear, ensuring long-term reliability in radial load applications.
Its sealed design prevents dirt ingress, maintaining smooth operation in dusty environments.
With a radial clearance of CN, it accommodates slight misalignments without compromising performance.

Open vs Sealed Bearings: Benefits of 2208 C/3 Bearing

2208 C/3 Bearing’s sealed design offers superior protection against dust and moisture.
Its pre-lubricated construction reduces maintenance needs, saving time and costs.
The double-row ball arrangement ensures even load distribution, enhancing durability.
With a static radial load of 1564 lbf, it provides reliable support in various applications.

Application

Where Is 2208 C/3 Bearing Used?
In industrial settings, 2208 C/3 Bearing is commonly seen in conveyor systems and fans, where its self-aligning feature helps compensate for minor misalignments.
The sealed design keeps contaminants out, making it suitable for dusty environments.

Automotive vs Industrial: Applications of 2208 C/3 Bearing
In automotive applications, 2208 C/3 Bearing works well in auxiliary units like alternators, thanks to its radial load capacity.
For industrial machinery, it’s a reliable choice for pumps and compressors where consistent performance is needed.

Key Fields for 2208 C/3 Bearing
You’ll find 2208 C/3 Bearing in household appliances like washing machines, where its nylon cage reduces noise.
Its chrome steel construction also makes it durable for long-term use in everyday devices.
