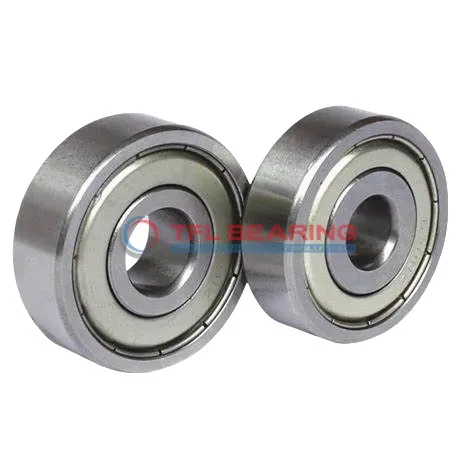

Single Row Deep Groove Ball Bearings 6202/16-2Z

Single Row Deep Groove Ball Bearings 6202/16-2Z

The 6202/16-2Z is a compact single-row deep groove ball bearing, measuring 15mm by 35mm with an 11mm width. Made from durable chrome steel, it’s designed for radial loads and shielded to keep out dust.

It handles dynamic radial loads up to 1812 lbf and spins smoothly at speeds up to 20,000 RPM. The bearing operates well in temperatures from -30°C to 120°C, making it versatile for various conditions.

Its shielded design offers basic protection without added friction, while the chrome steel cage ensures durability. The bearing is interchangeable with SKF models, simplifying replacements.

Ideal for small motors, pumps, or appliances where reliable radial load support is needed. Weighing just 45g, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6202/16-2Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 11 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 843 lbf
  • Max Speed 20000 rpm
  • Weight 45 g
  • price（$） 6.003
Single Row Deep Groove Ball Bearings 6202/16-2Z dimension drawing
Download DWG Download PDF

Features

How Does 6202/16-2Z Bearing Reduce Friction?

6202/16-2Z Bearing features a single-row deep groove design, optimised for smooth radial load handling.
The shielded construction helps keep contaminants out, ensuring consistent performance.

Made from chrome steel, 6202/16-2Z Bearing offers durability and resistance to wear.
Its dynamic radial load capacity of 1812 lbf makes it suitable for various applications.

With a maximum speed of 20,000 rpm, 6202/16-2Z Bearing balances efficiency and reliability.
The ABEC 1 tolerance ensures consistent performance without excessive maintenance.

Application

Common Applications of 6202/16-2Z Bearing
In industrial machinery, 6202/16-2Z Bearing is widely used in electric motors and pumps, where its shielded design keeps contaminants out while maintaining smooth rotation. The chrome steel construction ensures durability in demanding environments.

How Does 6202/16-2Z Bearing Improve Performance?
For automotive applications like alternators and small gearboxes, 6202/16-2Z Bearing offers reliable radial load support with minimal friction. Its ABEC 1 tolerance makes it a cost-effective choice without compromising performance.

Perfect Fit for Automation: 6202/16-2Z Bearing
In robotic arms and conveyor systems, 6202/16-2Z Bearing provides quiet operation and long service life. The metric sizing ensures easy integration with European and Asian equipment designs.

Light-Duty vs Heavy-Duty: Best Uses for 6202/16-2Z Bearing
While suitable for light-duty tools like power drills, 6202/16-2Z Bearing also handles moderate loads in appliances such as washing machines. Its temperature range allows consistent performance in varied conditions.

Where Is 6202/16-2Z Bearing Used?
From small fans to office printers, 6202/16-2Z Bearing delivers dependable rotation in everyday devices. The shielded seals protect against dust, making it ideal for household and commercial electronics.
