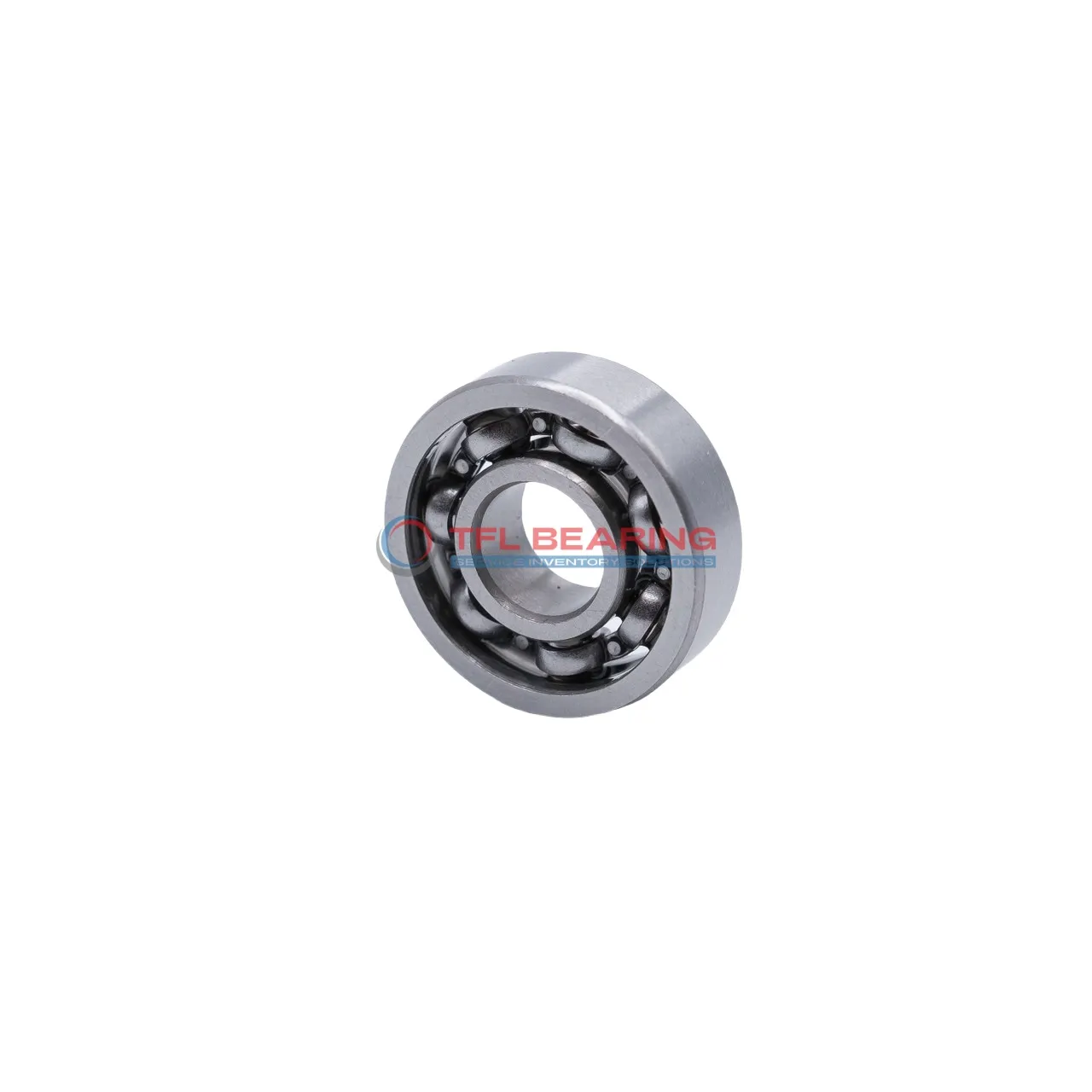

Single Row Deep Groove Ball Bearings 6201 TN9/C3LTF1

The 6201 TN9/C3LTF1 is a compact single-row deep groove ball bearing, measuring 12mm by 32mm by 10mm. Made from chrome steel with a nylon cage, it offers reliable performance for radial loads up to 1529 lbf.

It spins smoothly at speeds up to 22,000 RPM and operates in temperatures from -30°C to 120°C. The open design allows for easy lubrication and maintenance.

With a C3 radial clearance, it accommodates slight misalignments and thermal expansion. This makes it a versatile choice for various applications.

Ideal for electric motors, pumps, or small machinery, it’s lightweight at just 37g. Compliant with RoHS and REACH standards, it’s a safe and durable option for everyday use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6201 TN9/C3LTF1
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Open
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 12 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 32 mm
Outer Dia Tolerance -0.011mm to 0
Width 10 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Nylon
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 1529 lbf
Static Radial Load 686 lbf
Max Speed 22000 rpm
Weight 37 g

Single Row Deep Groove Ball Bearings 6201 TN9/C3LTF1 dimension drawing

Download DWG Download PDF

Features

Performance Features of 6201 TN9/C3LTF1 Bearing

6201 TN9/C3LTF1 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 1529 lbf.
Its nylon cage ensures smooth operation and reduces friction during high-speed rotations.

The C3 radial clearance allows for thermal expansion, making it suitable for varied temperature conditions.
With a maximum speed of 22,000 rpm, it delivers reliable performance in demanding applications.

6201 TN9/C3LTF1 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its open design simplifies maintenance while ensuring compatibility with various lubrication methods.

Application

Industrial Uses of 6201 TN9/C3LTF1 Bearing
This bearing is commonly used in conveyor systems and small electric motors, thanks to its reliable radial load capacity. The open design and C3 clearance make it suitable for applications with moderate speed requirements.

Where Is 6201 TN9/C3LTF1 Bearing Used?
You’ll often find this bearing in household appliances like washing machines and fans, where smooth operation is key. Its nylon cage reduces noise, making it ideal for quieter environments.

Built for Heavy-Duty Use: 6201 TN9/C3LTF1 Bearing
In automotive applications, this bearing handles radial loads in components like alternators and water pumps. The chrome steel construction ensures durability even under continuous use.

Light-Duty vs Heavy-Duty: Best Uses for 6201 TN9/C3LTF1 Bearing
For light-duty tasks, it works well in office equipment like printers. In heavier settings, it supports small machinery where consistent performance is needed.

Perfect Fit for Automation: 6201 TN9/C3LTF1 Bearing
This bearing is a great choice for robotic arms and small automation systems. Its compact size and reliable performance make it versatile for various precision tasks.
