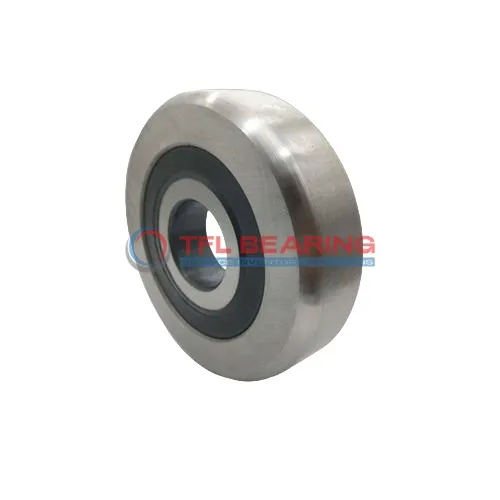

Mast Guide Bearings MG 313 DDL‑1

Mast Guide Bearings MG 313 DDL‑1

The MG 313 DDL‑1 mast guide bearing is a sturdy unit measuring 65mm in inner diameter and 135.1mm in outer diameter, with a width of 41.92mm. Made for heavy-duty use, it supports dynamic loads up to 56,300 N and static loads up to 57,600 N.

Its robust design includes a 6mm radius for smooth operation, while the chrome steel construction ensures durability. The bearing’s dimensions make it suitable for precise alignment in demanding setups.

Weighing 2.72kg, it’s a solid choice for industrial applications like cranes or lifting equipment. Its reliable performance and interchangeability with OEM parts make it a practical option for maintenance or replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 313 DDL‑1
  • Brand TFL & OEM
  • Inner Diameter (d) 65.000 mm
  • Outer Diameter (D) 135.10 mm
  • Inner Ring Width (b) 34 mm
  • Outer Ring Width (B) 41.920 mm
  • Radius (R) 6 mm
  • Dynamic Capacity (Cr.) 56,300 N
  • Static Capacity (Cor.) 57,600 N
  • Weight 2.7216 Kg
Mast Guide Bearings MG 313 DDL‑1 dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 313 DDL‑1 Bearing

MG 313 DDL‑1 Bearing is built with precise dimensions of 65.000 mm x 135.10 mm x 41.920 mm, ensuring a perfect fit for mast guide applications.
Its dynamic capacity of 56,300 N and static capacity of 57,600 N make it suitable for heavy-duty operations.
The 6 mm radius design enhances load distribution, reducing stress on the bearing components.
Weighing 2.7216 Kg, it balances strength and manageability for easy handling.

Application

Industrial Uses of MG 313 DDL‑1 Bearing
MG 313 DDL‑1 Bearing is commonly used in heavy machinery, such as cranes and construction equipment, where its high dynamic capacity handles significant loads. The robust design ensures longevity even in demanding conditions.

Where Is MG 313 DDL‑1 Bearing Used?
You’ll often spot MG 313 DDL‑1 Bearing in mast guide systems, providing smooth vertical movement for lifting applications. Its precise dimensions and weight distribution make it ideal for stability-critical setups.

Built for Heavy-Duty Use: MG 313 DDL‑1 Bearing
MG 313 DDL‑1 Bearing excels in industrial settings like mining equipment, where its static capacity supports heavy stationary loads. The durable construction minimises wear over time, reducing maintenance needs.

Automotive vs Aerospace: Applications of MG 313 DDL‑1 Bearing
In automotive sectors, MG 313 DDL‑1 Bearing aids in steering systems, while aerospace applications benefit from its reliability in landing gear mechanisms. The consistent performance suits both high and low-speed operations.

Perfect Fit for Automation: MG 313 DDL‑1 Bearing
MG 313 DDL‑1 Bearing integrates seamlessly into automated production lines, ensuring precise movement in robotic arms. Its balanced weight and load capacity enhance efficiency in repetitive tasks.
