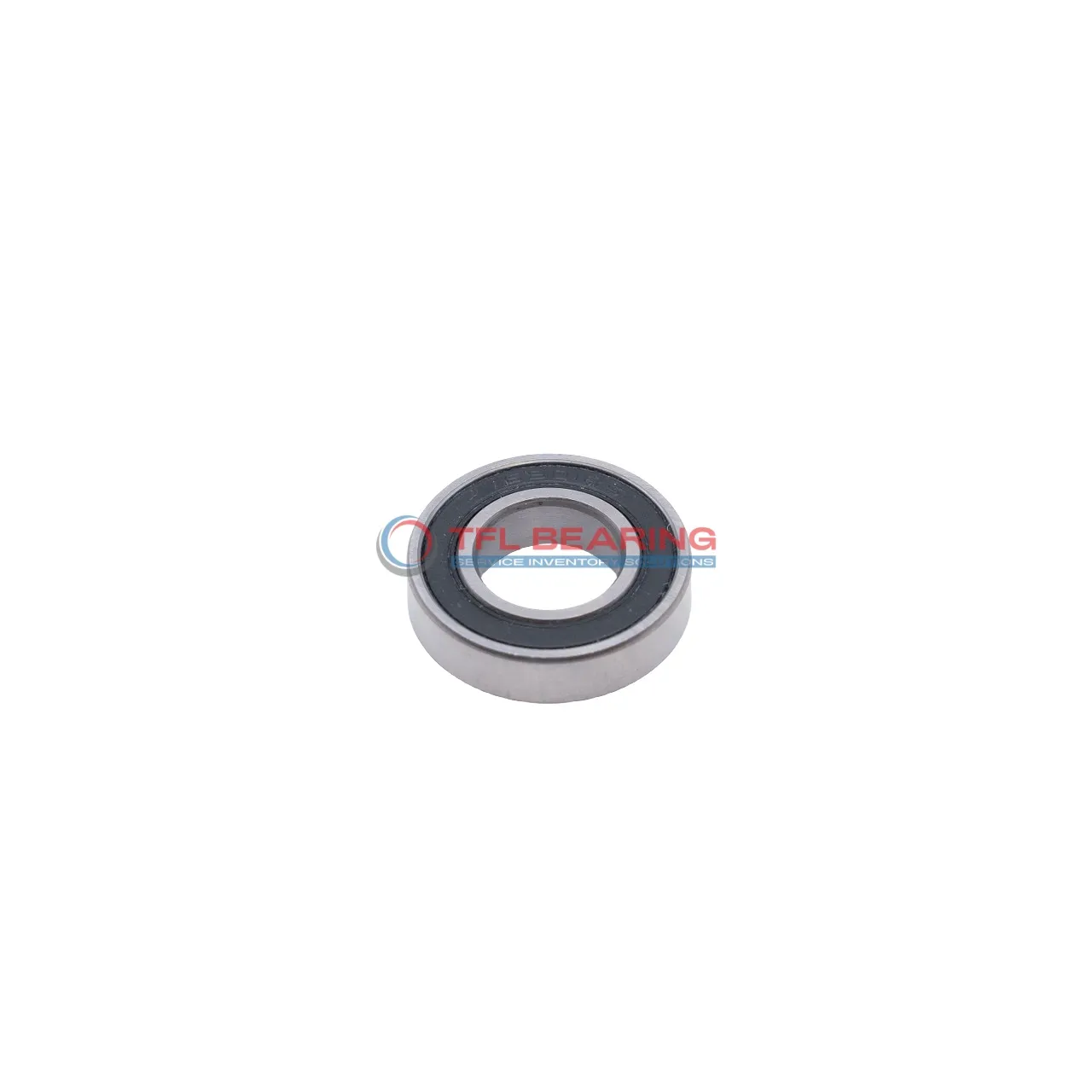

Single Row Deep Groove Ball Bearings 6201-2RS2/C3GWF

The 6201-2RS2/C3GWF is a compact single-row deep groove ball bearing, measuring 12mm in bore and 32mm in outer diameter, with a width of 10mm. Made from durable chrome steel, it handles radial loads up to 1529 lbf and spins smoothly at speeds up to 22,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance for long-term use. The C3 radial clearance allows for slight thermal expansion, ideal for varying temperatures.

This bearing works well in temperatures from -30°C to 120°C, suitable for motors or small machinery. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Weighing just 37g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s safe for most industrial applications.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6201-2RS2/C3GWF
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 12 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 32 mm
Outer Dia Tolerance -0.011mm to 0
Width 10 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 1529 lbf
Static Radial Load 686 lbf
Max Speed 22000 rpm
Weight 37 g

Single Row Deep Groove Ball Bearings 6201-2RS2/C3GWF dimension drawing

Download DWG Download PDF

Features

Performance Features of 6201-2RS2/C3GWF Bearing

6201-2RS2/C3GWF Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 1529 lbf, ensuring reliable performance in various applications.

The sealed design of 6201-2RS2/C3GWF Bearing protects against dust and moisture, extending its service life.
With a maximum speed of 22,000 rpm, it delivers smooth and efficient operation.

6201-2RS2/C3GWF Bearing operates in temperatures from -30°C to 120°C, making it suitable for diverse environments.
The C3 radial clearance provides optimal performance under varying thermal conditions.

Application

Common Applications of 6201-2RS2/C3GWF Bearing
6201-2RS2/C3GWF Bearing is widely used in industrial equipment like electric motors and pumps, where its sealed design helps keep contaminants out. The C3 clearance ensures reliable performance even under varying thermal conditions.

In automotive applications, 6201-2RS2/C3GWF Bearing fits well in alternators and cooling fans, thanks to its balanced radial load capacity. Its chrome steel construction offers durability in both high-speed and high-temperature environments.

For home appliances, 6201-2RS2/C3GWF Bearing works smoothly in washing machines and vacuum cleaners. The sealed feature reduces maintenance needs, making it a cost-effective choice for everyday use.

In automation systems, 6201-2RS2/C3GWF Bearing supports small robotic arms and conveyor belts. Its lightweight design and high-speed capability make it suitable for precision movements.
