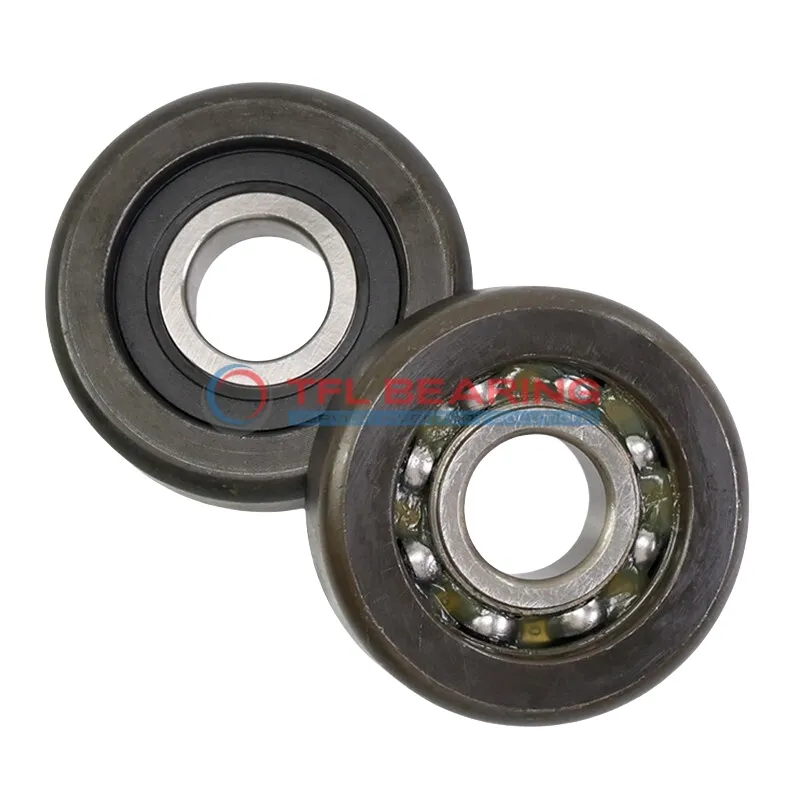

Mast Guide Bearings MG 307 DDL‑2

Mast Guide Bearings MG 307 DDL‑2

The MG 307 DDL‑2 mast guide bearing is a sturdy unit measuring 35mm in inner diameter and 81.2mm in outer diameter, with a width of 26mm. Made for heavy-duty use, it handles dynamic loads up to 25,800 N and static loads up to 21,070 N.

Its robust design includes a 6mm radius, providing smooth operation and reducing stress on the bearing. The chrome steel construction ensures durability in demanding conditions.

Weighing just 0.567kg, it’s lightweight yet strong, making it easy to handle during installation. Ideal for applications like construction equipment or industrial machinery where reliable guidance is needed.

The bearing’s precise dimensions and load capacity make it a dependable choice for replacements or new installations. Suitable for environments requiring consistent performance under heavy loads.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 307 DDL‑2
  • Brand TFL & OEM
  • Inner Diameter (d) 35.000 mm
  • Outer Diameter (D) 81.20 mm
  • Inner Ring Width (b) 25.8 mm
  • Outer Ring Width (B) 26.000 mm
  • Radius (R) 6 mm
  • Dynamic Capacity (Cr.) 25,800 N
  • Static Capacity (Cor.) 21,070 N
  • Weight 0.567 Kg
Mast Guide Bearings MG 307 DDL‑2 dimension drawing
Download DWG Download PDF

Features

How Is MG 307 DDL‑2 Bearing Engineered for Reliability?

MG 307 DDL‑2 Bearing features a robust design with dimensions of 35.000 mm x 81.20 mm x 26.000 mm, ensuring a precise fit for various applications.
Its dynamic capacity of 25,800 N and static capacity of 21,070 N make it suitable for heavy-duty use.
The bearing’s 6 mm radius enhances durability, reducing stress concentrations.
Weighing just 0.567 Kg, it offers a balance of strength and lightweight performance.

Application

Industrial Uses of MG 307 DDL‑2 Bearing
MG 307 DDL‑2 Bearing is commonly used in construction equipment, such as cranes and lifts, where its robust design handles heavy loads with ease. The 35mm bore size ensures a secure fit for various mast guide applications.

What Makes MG 307 DDL‑2 Bearing a Preferred Choice?
With a dynamic capacity of 25,800 N, MG 307 DDL‑2 Bearing excels in high-stress environments like mining machinery. Its 81.20mm outer diameter provides stability, making it reliable for prolonged use.

Perfect Fit for Automation: MG 307 DDL‑2 Bearing
MG 307 DDL‑2 Bearing works well in automated systems, including robotic arms and assembly lines. The 26mm width offers a compact solution without compromising on strength or performance.

Light-Duty vs Heavy-Duty: Best Uses for MG 307 DDL‑2 Bearing
MG 307 DDL‑2 Bearing adapts to both light-duty conveyors and heavy-duty industrial presses. Its chrome steel construction ensures durability across different operating conditions.
