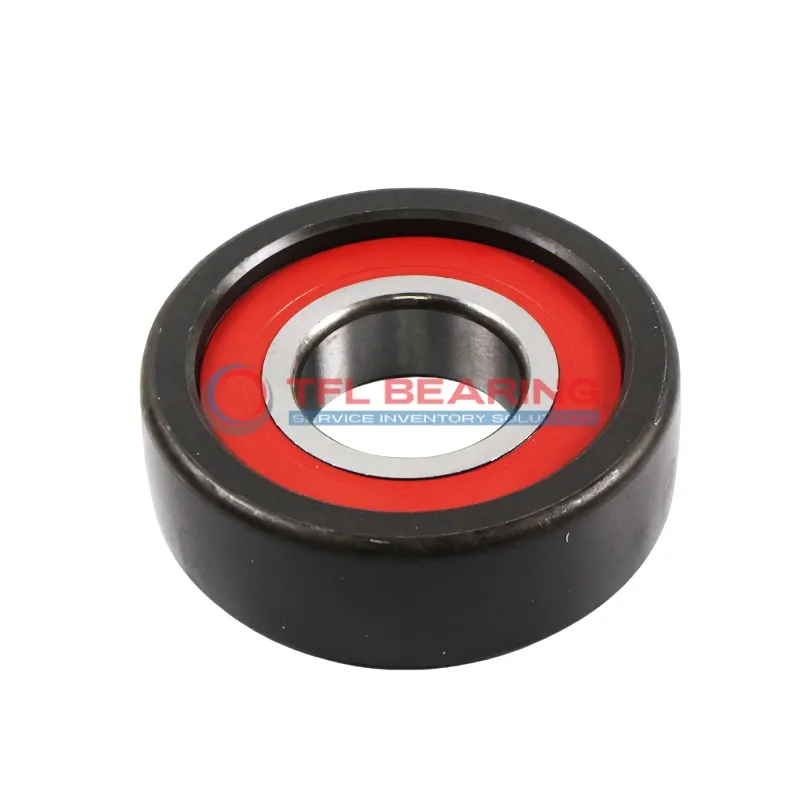

Mast Guide Bearings MG 207 FFU

Mast Guide Bearings MG 207 FFU

The MG 207 FFU is a mast guide bearing with a 35mm inner diameter and 91.8mm outer diameter, designed for stability and precision. Its compact width of 31.27mm makes it suitable for tight spaces, while the 8mm radius ensures smooth operation.

With a dynamic load capacity of 30,530 N and static load capacity of 25,490 N, it handles heavy loads with ease. The bearing’s sturdy construction ensures reliable performance in demanding conditions.

Weighing just under 1kg, it’s lightweight yet durable for its size. Ideal for use in mast guidance systems or other applications requiring precise movement and load support.

Its dimensions and load capacities make it a versatile choice for industrial and mechanical setups. The bearing’s design balances strength and efficiency, ensuring long service life.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number MG 207 FFU
  • Brand TFL & OEM
  • Inner Diameter (d) 35.000 mm
  • Outer Diameter (D) 91.80 mm
  • Inner Ring Width (b) 20 mm
  • Outer Ring Width (B) 31.270 mm
  • Radius (R) 8 mm
  • Dynamic Capacity (Cr.) 30,530 N
  • Static Capacity (Cor.) 25,490 N
  • Weight 0.9525 Kg
Mast Guide Bearings MG 207 FFU dimension drawing
Download DWG Download PDF

Features

Performance Features of MG 207 FFU Bearing

MG 207 FFU Bearing is built with precise dimensions of 35.000 mm x 91.80 mm x 31.270 mm, ensuring a perfect fit for mast guide applications.
Its dynamic capacity of 30,530 N allows it to handle significant loads with ease.

The robust design of MG 207 FFU Bearing includes a static capacity of 25,490 N, providing reliable performance in stationary applications.
With a weight of 0.9525 Kg, it offers a balance between strength and portability.

MG 207 FFU Bearing’s inner and outer ring widths of 20 mm and 31.270 mm respectively enhance its stability.
The 8 mm radius ensures smooth operation and reduces stress concentrations.

Application

Industrial Uses of MG 207 FFU Bearing
MG 207 FFU Bearing is commonly used in heavy machinery, such as cranes and lifts, where its robust design handles significant radial loads. The 35mm bore size makes it suitable for various industrial shafts.

Where Is MG 207 FFU Bearing Used?
You’ll often find MG 207 FFU Bearing in construction equipment, like mast guides, where its high dynamic capacity ensures reliable performance. Its 91.8mm outer diameter provides stability in demanding conditions.

Built for Heavy-Duty Use: MG 207 FFU Bearing
MG 207 FFU Bearing excels in applications like material handling systems, thanks to its 30,530 N dynamic load rating. The 31.27mm outer ring width offers added support for prolonged use.

Automotive vs Aerospace: Applications of MG 207 FFU Bearing
In automotive settings, MG 207 FFU Bearing supports components like steering columns, while in aerospace, it aids in landing gear mechanisms. Its 25,490 N static capacity ensures durability in both fields.

Perfect Fit for Automation: MG 207 FFU Bearing
MG 207 FFU Bearing is ideal for robotic arms and automated guided vehicles, where precision and load capacity are key. The 20mm inner ring width allows for compact yet sturdy designs.
