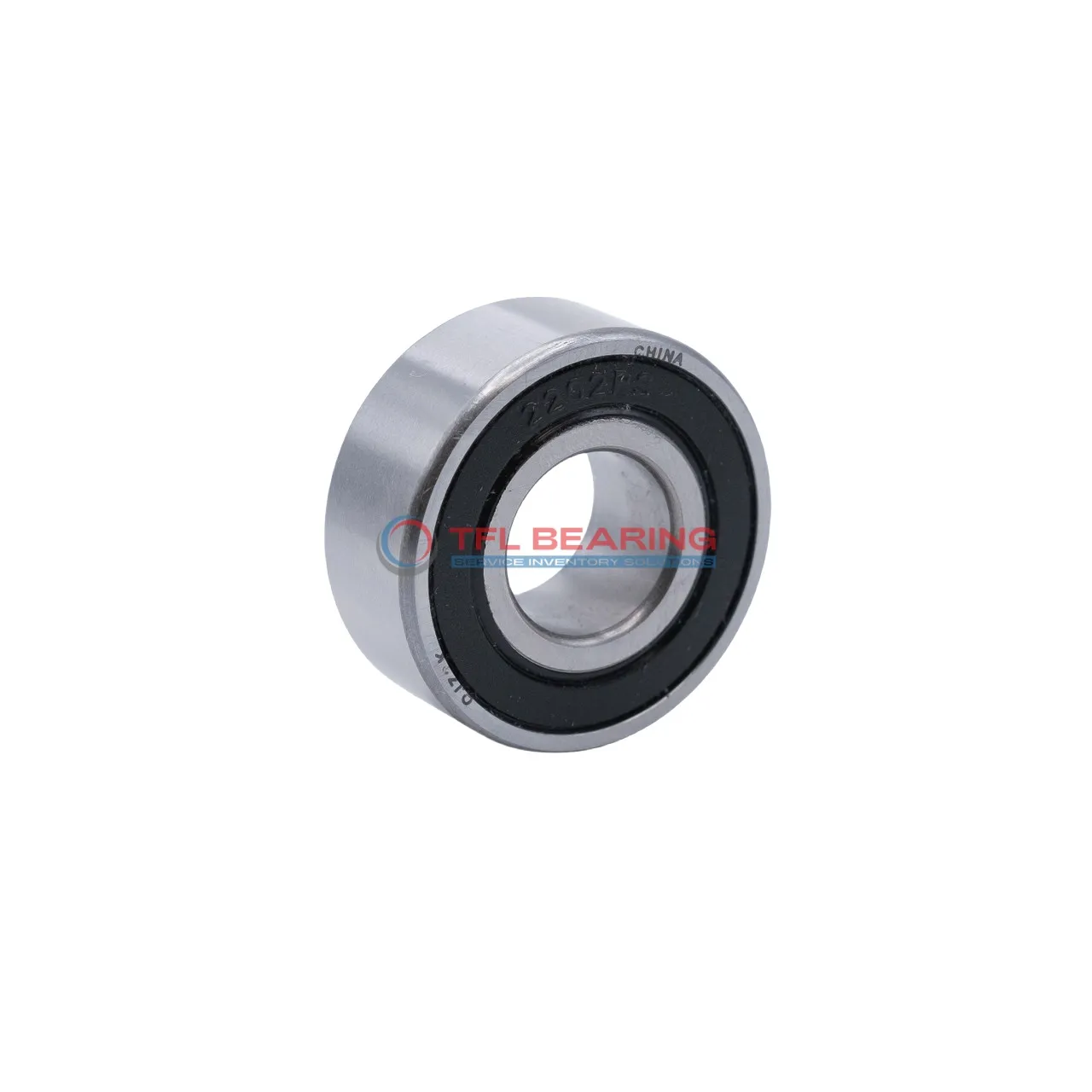

Self Aligning Ball Bearings 2303 E-2RS1TN9/W64

Self Aligning Ball Bearings 2303 E-2RS1TN9/W64

The 2303 E-2RS1TN9/W64 is a self-aligning ball bearing with a 17mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2858 lbf and operates smoothly at speeds up to 10,000 RPM.

Its double-row design and sealed construction keep dirt out while the nylon cage reduces friction. Pre-lubricated for easy use, it works in temperatures from -30°C to 110°C.

This model aligns itself to minor misalignments, making it ideal for applications like conveyor systems or agricultural machinery. Weighing just 0.16kg, it’s lightweight yet durable.

Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, interchangeable with SKF bearings. Perfect for environments where maintenance access is limited.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2303 E-2RS1TN9/W64
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 19 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 25.5 mm
  • Internal Diameter On Outer Ring 41.23 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 2858 lbf
  • Static Radial Load 765 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 10000 rpm
  • Weight 0.16 kg
Self Aligning Ball Bearings 2303 E-2RS1TN9/W64 dimension drawing
Download DWG Download PDF

Features

How Is 2303 E-2RS1TN9/W64 Bearing Engineered for Reliability?

2303 E-2RS1TN9/W64 Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load reaches 2858 lbf, making it suitable for demanding applications.

The sealed construction and nylon cage help maintain smooth operation while reducing wear.
With a maximum speed of 10,000 rpm, it balances performance and durability.

2303 E-2RS1TN9/W64 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its lubricated design ensures long service life with minimal maintenance.

Application

Industrial Uses of 2303 E-2RS1TN9/W64 Bearing
2303 E-2RS1TN9/W64 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring long service life in dusty environments.

In automotive applications, 2303 E-2RS1TN9/W64 Bearing fits well in suspension systems, handling radial loads smoothly. Its nylon cage reduces noise, making it ideal for passenger vehicles.

For robotics, 2303 E-2RS1TN9/W64 Bearing offers reliable performance in joint mechanisms, thanks to its double-row construction. The lubricated design ensures smooth movement even during repetitive tasks.

In household appliances like washing machines, 2303 E-2RS1TN9/W64 Bearing provides quiet operation and durability. The chrome steel rings resist wear, extending the appliance’s lifespan.
