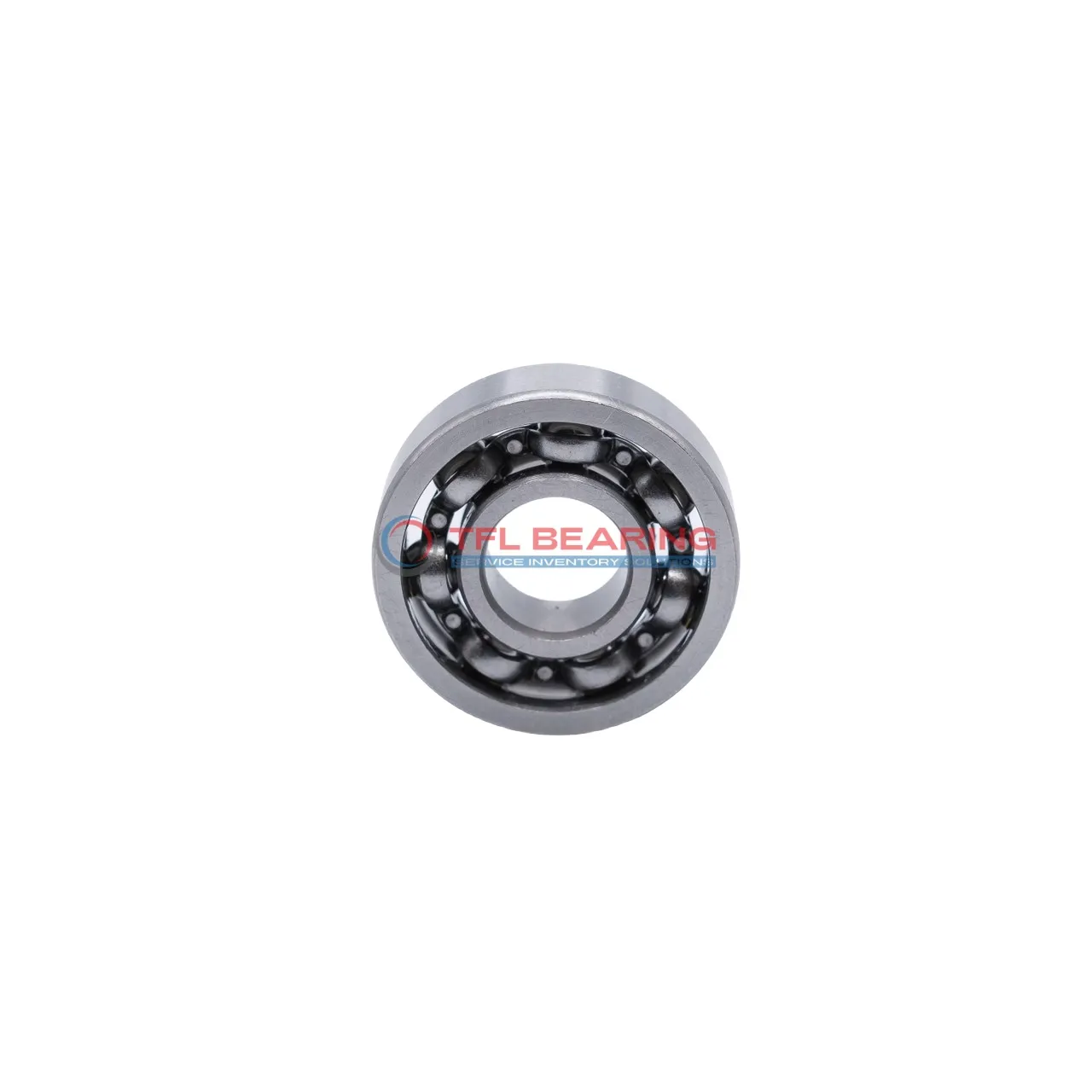

Single Row Deep Groove Ball Bearings 6200/VK016

The 6200/VK016 is a compact single-row deep groove ball bearing with a 10mm bore and 30mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 1147 lbf and spins smoothly at speeds up to 24,000 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing operates efficiently in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Perfect for applications like electric motors or small machinery where reliable radial load support is needed.

Weighing just 32g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6200/VK016
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Open
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Bore Dia 10 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 30 mm
Outer Dia Tolerance -0.009mm to 0
Width 9 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 1147 lbf
Static Radial Load 54 lbf
Max Speed 24000 rpm
Weight 32 g

Single Row Deep Groove Ball Bearings 6200/VK016 dimension drawing

Download DWG Download PDF

Features

Performance Features of 6200/VK016 Bearing

6200/VK016 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 1147 lbf.
Its single-row deep groove design ensures smooth operation, making it suitable for various applications.

The open seal type allows for easy maintenance, while the ABEC 1 tolerance ensures reliable performance.
With a maximum speed of 24,000 rpm, it balances efficiency and durability in demanding conditions.

6200/VK016 Bearing operates in temperatures from -30° to 120°C, adapting to different environments.
Its lightweight design at 32 g makes it ideal for applications where weight is a consideration.

Application

Industrial Uses of 6200/VK016 Bearing
The 6200/VK016 Bearing is commonly used in industrial machinery like electric motors and pumps, where its radial load capacity ensures smooth operation. Its open design allows for easy lubrication, extending service life in demanding conditions.

Where Is 6200/VK016 Bearing Used?
In automotive applications, 6200/VK016 Bearing fits well in alternators and small gearboxes, thanks to its compact size and reliable performance. The chrome steel construction also handles moderate speeds without overheating.

Built for Versatility: 6200/VK016 Bearing
For home appliances like washing machines, 6200/VK016 Bearing offers quiet and efficient rotation. Its metric dimensions make it a straightforward replacement for worn-out bearings in older models.

Light-Duty vs Heavy-Duty: Best Uses for 6200/VK016 Bearing
In light-duty tools like desk fans, 6200/VK016 Bearing provides consistent performance with minimal maintenance. For heavier applications, it’s often paired with additional supports to handle increased loads.
