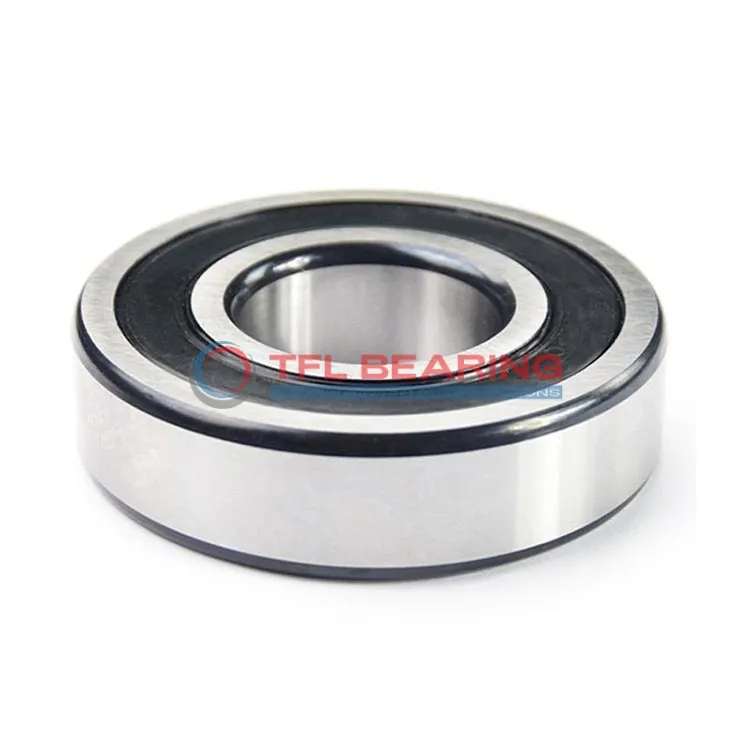

Single Row Deep Groove Ball Bearings 6200-RS1Z

Single Row Deep Groove Ball Bearings 6200-RS1Z

The 6200-RS1Z is a compact single-row deep groove ball bearing, measuring 10mm in bore and 30mm in outer diameter, with a width of just 9mm. Made from chrome steel, it offers reliable performance for radial loads up to 1147 lbf.

Its one-side shielded and one-side sealed design keeps dirt out while retaining lubrication, making it low-maintenance. The bearing can handle speeds up to 24,000 RPM and operates in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, ensuring easy replacements. Ideal for small motors, pumps, or appliances where space is limited but smooth rotation is needed.

Weighing only 32g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6200-RS1Z
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type One Side Shielded,One Side Seal
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 9 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1147 lbf
  • Static Radial Load 54 lbf
  • Max Speed 24000 rpm
  • Weight 32 g
Single Row Deep Groove Ball Bearings 6200-RS1Z dimension drawing
Download DWG Download PDF

Features

Why Choose 6200-RS1Z Bearing for Precision Tasks?

6200-RS1Z Bearing features a single row deep groove design, ideal for handling radial loads with precision.
Its chrome steel construction ensures durability and smooth operation in various applications.

The one side shielded and one side sealed design protects against contaminants, enhancing reliability.
With a maximum speed of 24,000 rpm, it offers efficient performance for high-speed requirements.

6200-RS1Z Bearing operates in temperatures from -30°C to 120°C, suitable for diverse environments.
Its ABEC 1 tolerance class provides consistent performance for general precision needs.

Application

Common Applications of 6200-RS1Z Bearing
In industrial settings, 6200-RS1Z Bearing is commonly used in electric motors and pumps, where its shielded design helps keep contaminants out while maintaining smooth rotation. The chrome steel construction ensures durability in demanding environments.

Where Is 6200-RS1Z Bearing Used?
You’ll often find 6200-RS1Z Bearing in automotive applications like alternators and small gearboxes, where its compact size and radial load capacity are ideal. The one-side seal adds extra protection against dust and moisture.

Built for Versatility: 6200-RS1Z Bearing
This bearing works well in household appliances, such as washing machines and fans, thanks to its balanced performance and low maintenance needs. The ABEC 1 tolerance makes it a reliable choice for everyday use.

Light-Duty vs Heavy-Duty: Best Uses for 6200-RS1Z Bearing
For light-duty tasks, 6200-RS1Z Bearing excels in office equipment like printers, where quiet operation is key. In heavier applications, it handles moderate loads in conveyor systems without compromising efficiency.
