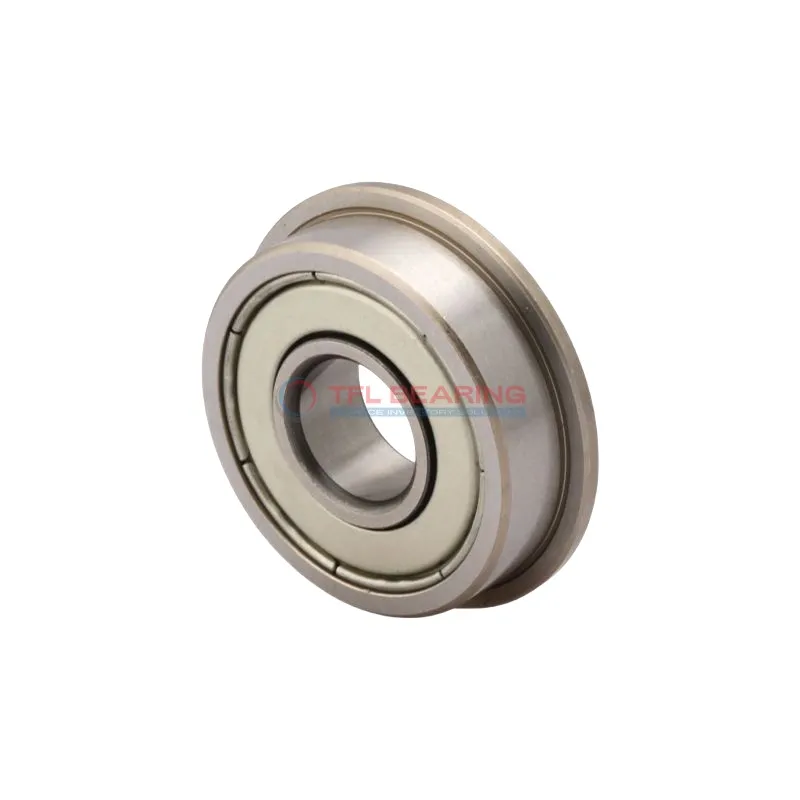

Metric Size Miniature Flanged Ball Bearings F625zz

Metric Size Miniature Flanged Ball Bearings F625zz

The F625zz is a small, shielded ball bearing with a 5mm bore and 16mm outer diameter, crafted from durable chrome steel. It supports radial loads up to 331 lbf and spins smoothly at speeds up to 36,000 RPM.

Its stainless steel shields protect against dust while keeping lubrication in place, and the stainless steel cage ensures reliable performance. The bearing operates well in temperatures from -30°C to 110°C.

With a lightweight design at just 5.52g, it’s ideal for compact applications like small motors or precision instruments. Compliant with RoHS and REACH standards, it’s a safe and practical choice for various uses.

The flange adds stability, making installation easier in tight spaces. Perfect for high-speed, low-load scenarios where reliability matters.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F625zz
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 5 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 16 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 18 mm
  • Flange Thickness 1 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 7
  • Ball Dia 2.7780 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 331 lbf
  • Static Radial Load 122 lbf
  • Max Speed 36000 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.52 g
  • Shield Material 300 Series Stainless Steel
  • Price（$） 1.35
Metric Size Miniature Flanged Ball Bearings F625zz dimension drawing
Download DWG Download PDF

Features

How Does F625zz Bearing Reduce Friction?

F625zz Bearing features a shielded design with stainless steel shields, protecting against contaminants while reducing friction.
Its chrome steel construction ensures smooth rotation, even at high speeds up to 36,000 rpm.
The precision ball alignment minimises energy loss, enhancing efficiency.
With a dynamic radial load capacity of 331 lbf, it delivers reliable performance in compact applications.

Application

Common Applications of F625zz Bearing
F625zz Bearing is widely used in small electric motors, such as those found in cooling fans or power tools, thanks to its compact size and shielded design. The stainless steel shields help keep contaminants out while maintaining smooth rotation.

In automation equipment, F625zz Bearing provides reliable support for lightweight robotic arms and conveyor guides. Its high-speed capability makes it suitable for precision movements in assembly lines.

For consumer electronics like printers or small appliances, F625zz Bearing offers quiet operation and long service life. The chrome steel construction ensures durability even with frequent use in these everyday devices.

Medical devices such as dental handpieces often utilise F625zz Bearing due to its consistent performance at high rotations. The ABEC1 tolerance provides adequate precision for most medical applications without unnecessary cost.

DIY enthusiasts appreciate F625zz Bearing in hobby projects like RC cars or model-making equipment. Its affordability and availability make it a popular choice for small-scale mechanical applications.
