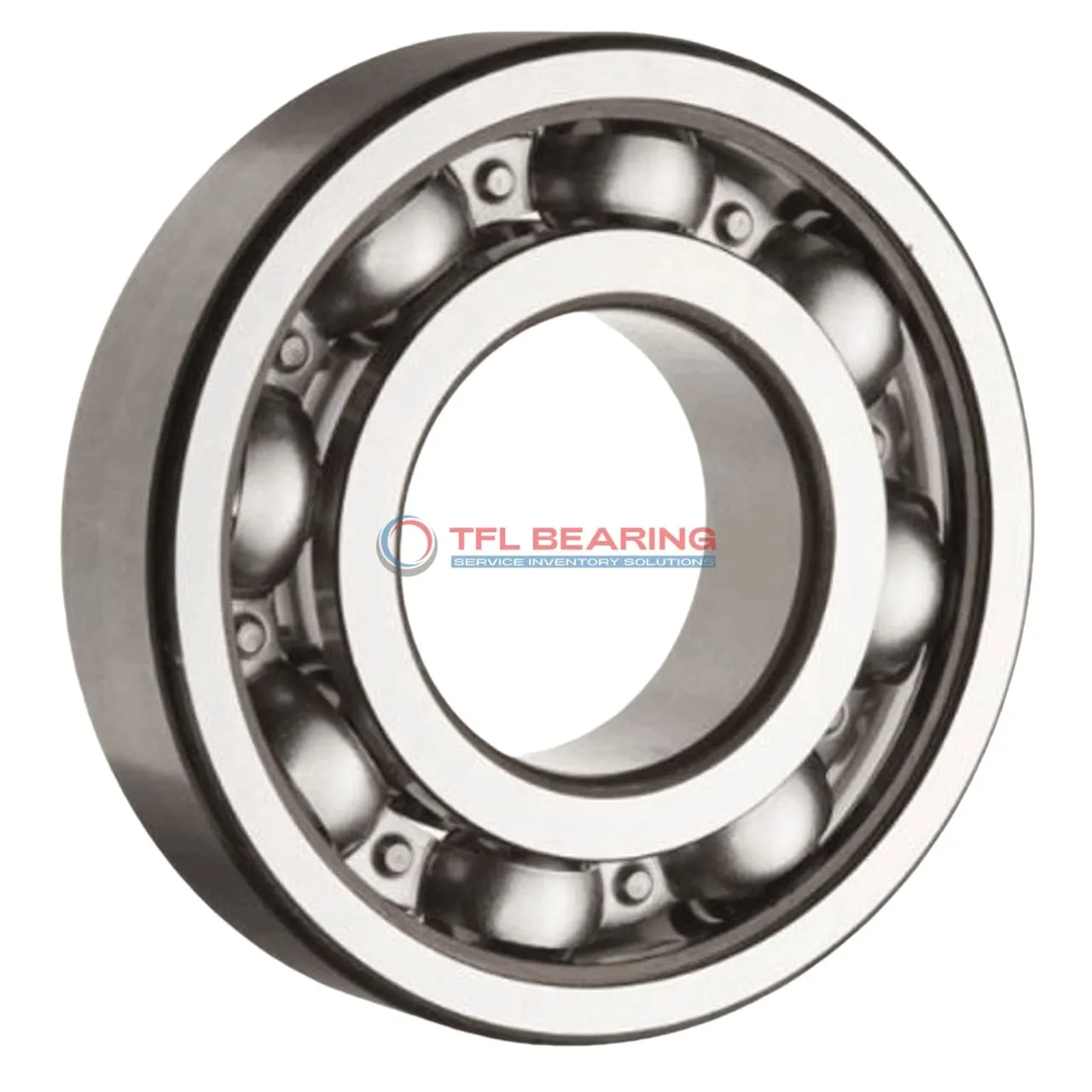

Single Row Deep Groove Ball Bearings 61996 MA

Single Row Deep Groove Ball Bearings 61996 MA

The 61996 MA is a single-row deep groove ball bearing with a large 480mm bore and 650mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 100,939 lbf and operates at speeds up to 1500 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial machinery or large equipment where radial load support is key.

Weighing 74kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61996 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 480 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 650 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 78 mm
  • Width Tolerance -0.45mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 100939 lbf
  • Static Radial Load 183219 lbf
  • Max Speed 1500 rpm
  • Weight 74 kg
Single Row Deep Groove Ball Bearings 61996 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 61996 MA Bearing

61996 MA Bearing is built for radial loads, with a dynamic radial load capacity of 100,939 lbf, making it suitable for heavy-duty applications.
Its chrome steel rings and balls ensure durability and resistance to wear.

The stainless steel cage maintains ball alignment, contributing to smooth operation.
With a maximum speed of 1,500 rpm, it balances performance and reliability.

61996 MA Bearing operates effectively in temperatures ranging from -30° to 120°C.
Its P6 tolerance class ensures precision and consistent performance in demanding conditions.

The open design simplifies maintenance, while the CN radial clearance provides optimal fit for various applications.
Weighing 74 kg, it is robust yet designed for efficient handling.

Application

Industrial Uses of 61996 MA Bearing
The 61996 MA Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its radial load capacity ensures reliable performance.
Its open design and chrome steel construction make it suitable for high-load environments, while the stainless steel cage adds durability.

Where Is 61996 MA Bearing Used?
You’ll often find the 61996 MA Bearing in wind turbines and large gearboxes, where its ability to handle dynamic radial loads is essential.
The P6 tolerance class ensures precise operation, making it a dependable choice for critical applications.

Built for Heavy-Duty Use: 61996 MA Bearing
The 61996 MA Bearing excels in mining equipment and construction machinery, thanks to its robust design and high static radial load rating.
Its wide temperature range also allows it to perform well in varying environmental conditions.

Automotive vs Aerospace: Applications of 61996 MA Bearing
In automotive applications, the 61996 MA Bearing supports large drivetrain components, while in aerospace, it’s used in auxiliary systems requiring precision.
The metric sizing ensures compatibility with a range of international machinery standards.

Practical Applications of 61996 MA Bearing
For automation systems, the 61996 MA Bearing provides smooth operation in robotic arms and conveyor systems.
Its high dynamic radial load capacity makes it a practical choice for continuous operation in manufacturing plants.
