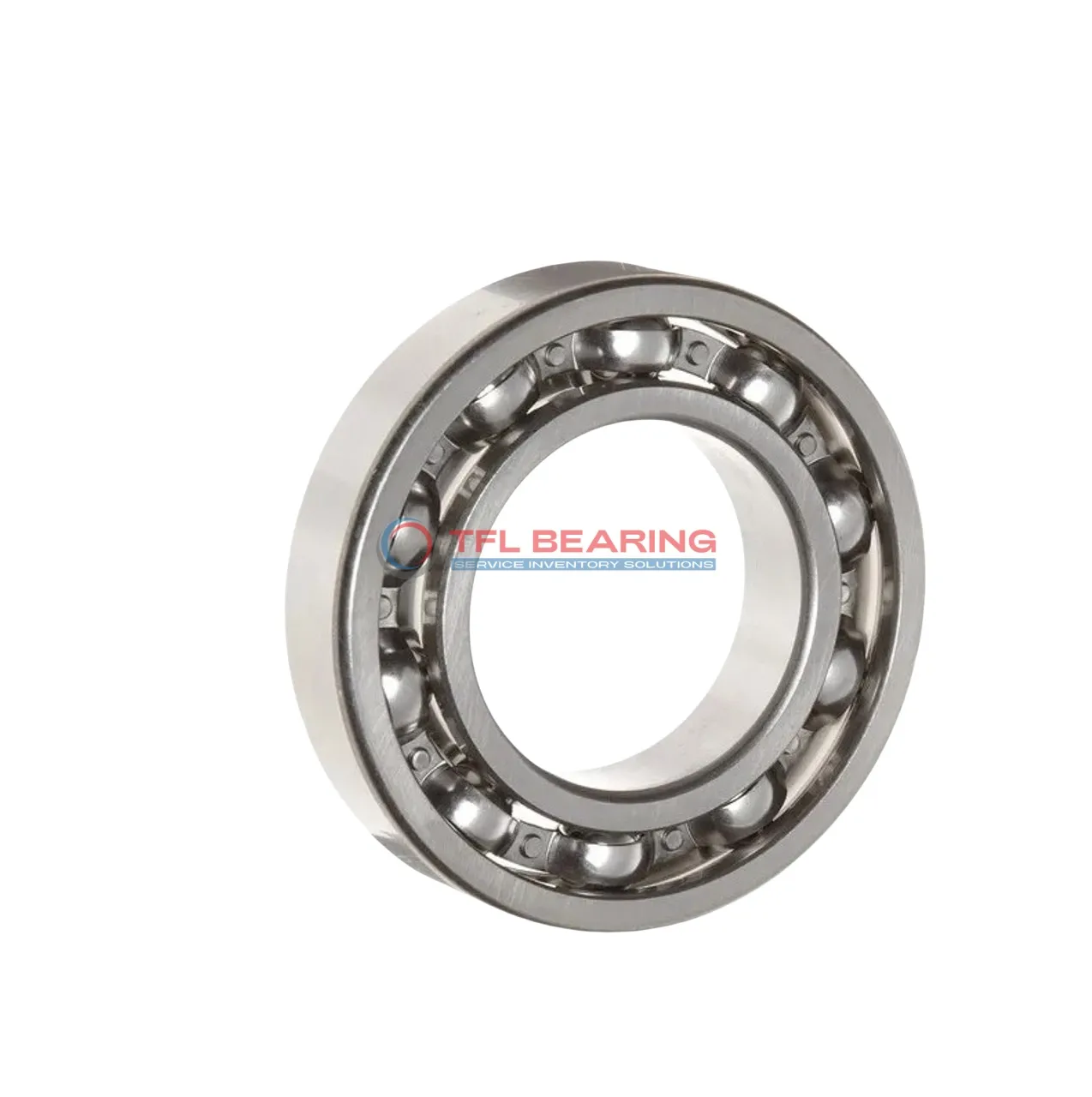

Single Row Deep Groove Ball Bearings 61968 M

Single Row Deep Groove Ball Bearings 61968 M

The 61968 M is a single-row deep groove ball bearing with a 340mm bore and 460mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 63171 lbf and operates smoothly at speeds up to 2200 RPM.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or large equipment where radial loads are common.

Weighing 26.5kg, it’s built to last and complies with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61968 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 340 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 460 mm
  • Outer Dia Tolerance -0.033mm to 0
  • Width 56 mm
  • Width Tolerance -0.4mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 63171 lbf
  • Static Radial Load 95544 lbf
  • Max Speed 2200 rpm
  • Weight 26.5 kg
Single Row Deep Groove Ball Bearings 61968 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 61968 M Bearing

61968 M Bearing is built with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 63171 lbf, making it suitable for heavy-duty applications.

The stainless steel cage ensures smooth operation by keeping the balls properly aligned.
With a maximum speed of 2,200 rpm, it balances performance and durability.

61968 M Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its open design allows for easy maintenance and inspection.

Application

Industrial Uses of 61968 M Bearing
61968 M Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its high radial load capacity is essential. The open design allows for easy lubrication, ensuring long service life in demanding environments.

What Makes 61968 M Bearing a Preferred Choice?
With its chrome steel construction, 61968 M Bearing offers reliable performance in applications like conveyor systems and gearboxes. The P6 tolerance class ensures precision, making it suitable for equipment requiring accurate alignment.

Built for Heavy-Duty Use: 61968 M Bearing
In wind turbines, 61968 M Bearing handles significant radial loads while maintaining smooth operation. Its stainless steel cage adds durability, making it a dependable choice for renewable energy applications.

Automotive vs Aerospace: Applications of 61968 M Bearing
In automotive systems, 61968 M Bearing supports large components like axles and transmissions. For aerospace, its precision and load capacity make it useful in ground support equipment and auxiliary systems.
