Single Row Deep Groove Ball Bearings 6028

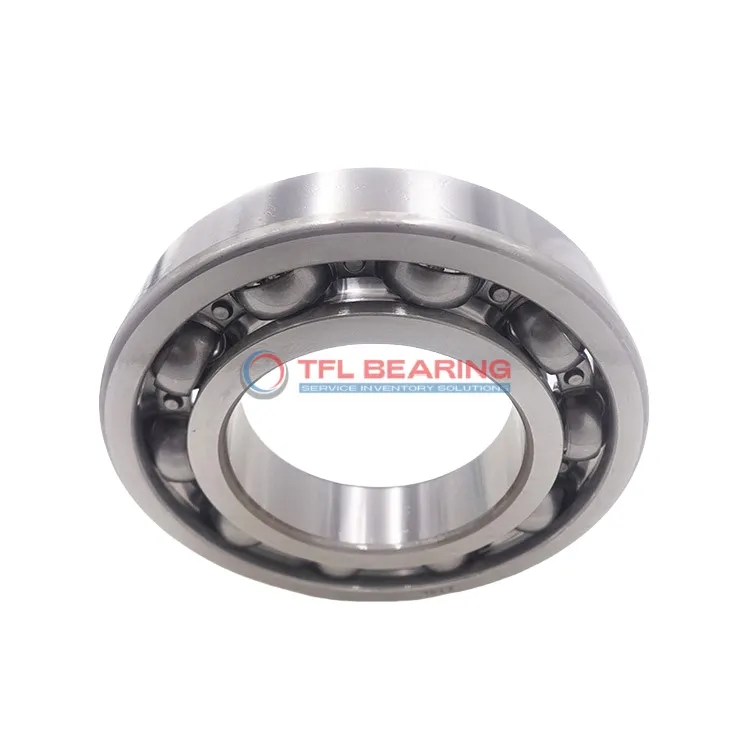

Single Row Deep Groove Ball Bearings 6028

The 6028 is a single-row deep groove ball bearing with a 140mm bore and 210mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 24954 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design simplifies maintenance, while the precision P6 tolerance ensures reliable performance. The bearing functions well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 3450g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6028
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 210 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 33 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 24954 lbf
  • Static Radial Load 24279 lbf
  • Max Speed 4000 rpm
  • Weight 3450 g
  • price（$） 88.155
Single Row Deep Groove Ball Bearings 6028 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6028 Bearing

6028 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 24954 lbf.
Its single-row deep groove design ensures smooth operation and efficient load distribution.

The P6 tolerance class of 6028 Bearing provides precise performance for demanding applications.
With a maximum speed of 4,000 rpm, it balances durability and efficiency in various conditions.

6028 Bearing operates in temperatures from -30° to 120°C, making it suitable for diverse environments.
Its open design simplifies maintenance and allows for easy lubrication when required.

Application

Industrial Uses of 6028 Bearing
The 6028 Bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently. Its chrome steel construction ensures durability in demanding environments.

Where Is 6028 Bearing Used?
You’ll find the 6028 Bearing in automotive applications such as wheel hubs and transmissions, thanks to its reliable performance under high radial loads. The metric sizing makes it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: 6028 Bearing
In automation systems, the 6028 Bearing supports robotic arms and conveyor belts, where smooth operation is essential. Its open design allows for easy lubrication, extending service life in continuous-use scenarios.

Medical vs Industrial: Where 6028 Bearing Excels
The 6028 Bearing is suitable for medical devices like centrifuges, offering precision and stability. In industrial settings, it excels in gearboxes and compressors, balancing load capacity and speed requirements.

Perfect Fit for Automation: 6028 Bearing
For consumer electronics like high-power fans, the 6028 Bearing provides quiet and efficient operation. Its wide temperature range makes it adaptable to both indoor and outdoor applications.
