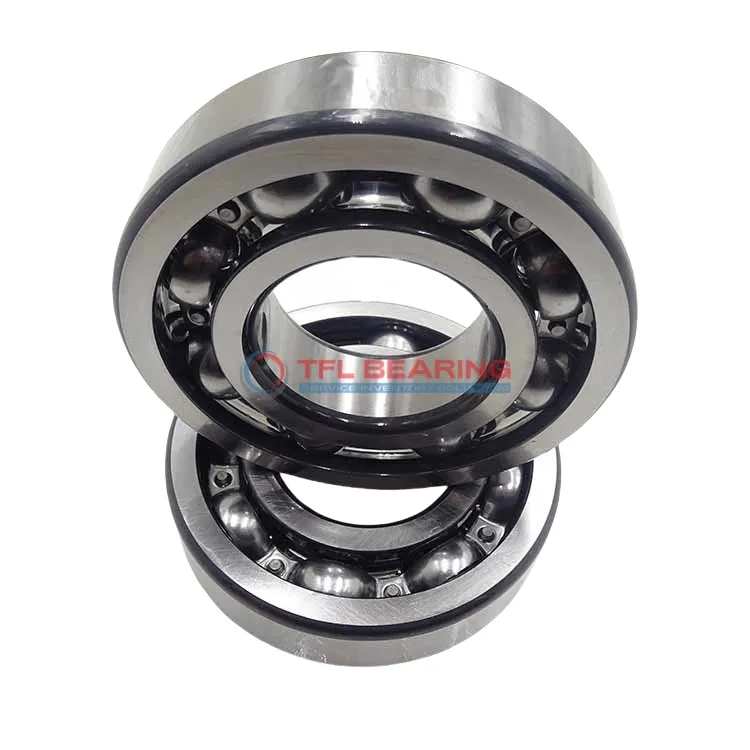

Single Row Deep Groove Ball Bearings 61948 MA

Single Row Deep Groove Ball Bearings 61948 MA

The 61948 MA is a single-row deep groove ball bearing with a 240mm bore and 320mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 35745 lbf and operates smoothly at speeds up to 3200 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. Suitable for temperatures ranging from -30°C to 120°C, it’s built for consistent performance.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Perfect for heavy-duty machinery or industrial equipment where radial load support is key.

Weighing 8.54kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61948 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 240 mm
  • Bore Dia Tolerance -0.022mm to 0
  • Outer Dia 320 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 38 mm
  • Width Tolerance -0.3mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 35745 lbf
  • Static Radial Load 44962 lbf
  • Max Speed 3200 rpm
  • Weight 8.54 kg
  • price（$） 789.957
Single Row Deep Groove Ball Bearings 61948 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 61948 MA Bearing

61948 MA Bearing is crafted with chrome steel rings and balls, offering strong radial load capacity up to 35745 lbf.
Its stainless steel cage ensures smooth operation, reducing friction and wear.

The open design of 61948 MA Bearing allows for easy lubrication and maintenance.
With a maximum speed of 3,200 rpm, it balances performance and durability.

61948 MA Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its precision P6 tolerance ensures reliable performance in demanding applications.

Application

Industrial Uses of 61948 MA Bearing
The 61948 MA Bearing is commonly used in heavy machinery, such as large conveyor systems and industrial pumps, where its robust construction handles radial loads effectively. Its open design simplifies lubrication and maintenance, ideal for continuous operation environments.

In automotive applications, 61948 MA Bearing supports components like wheel hubs and transmission systems, providing reliable performance under high radial stress. The P6 tolerance ensures precise alignment, crucial for smooth vehicle operation.

For automation equipment, 61948 MA Bearing’s stainless steel cage and chrome steel rings offer durability in robotic arms and assembly lines. Its high dynamic load capacity makes it suitable for repetitive, high-speed movements.

Medical imaging devices benefit from 61948 MA Bearing’s consistent performance and low noise levels. The wide temperature range allows it to function reliably in various clinical settings.

In household appliances like washing machines, 61948 MA Bearing ensures quiet and efficient operation. Its metric sizing makes it compatible with many European and Asian appliance models.
